Description

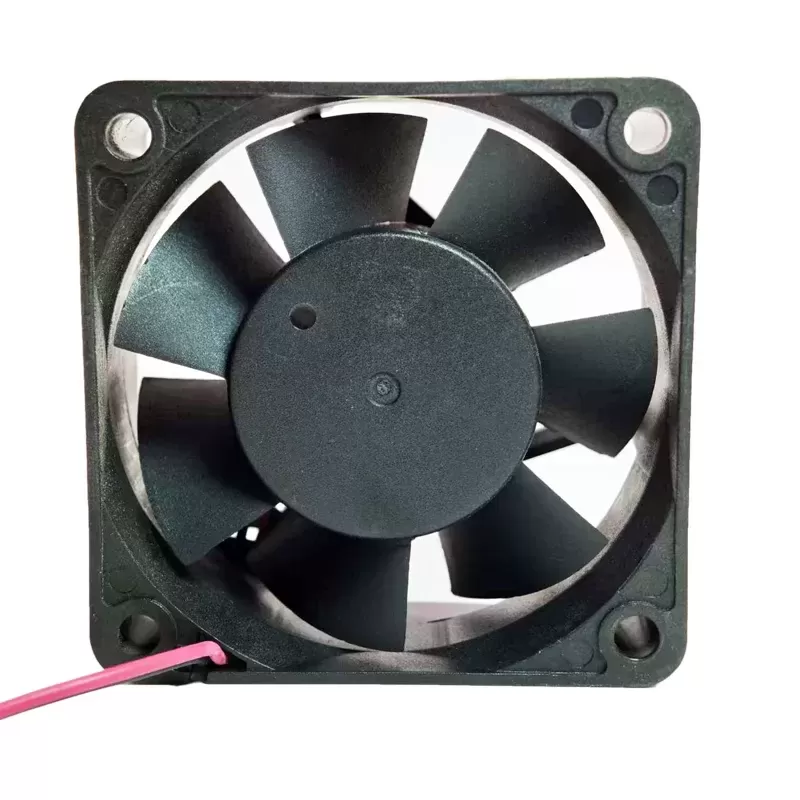

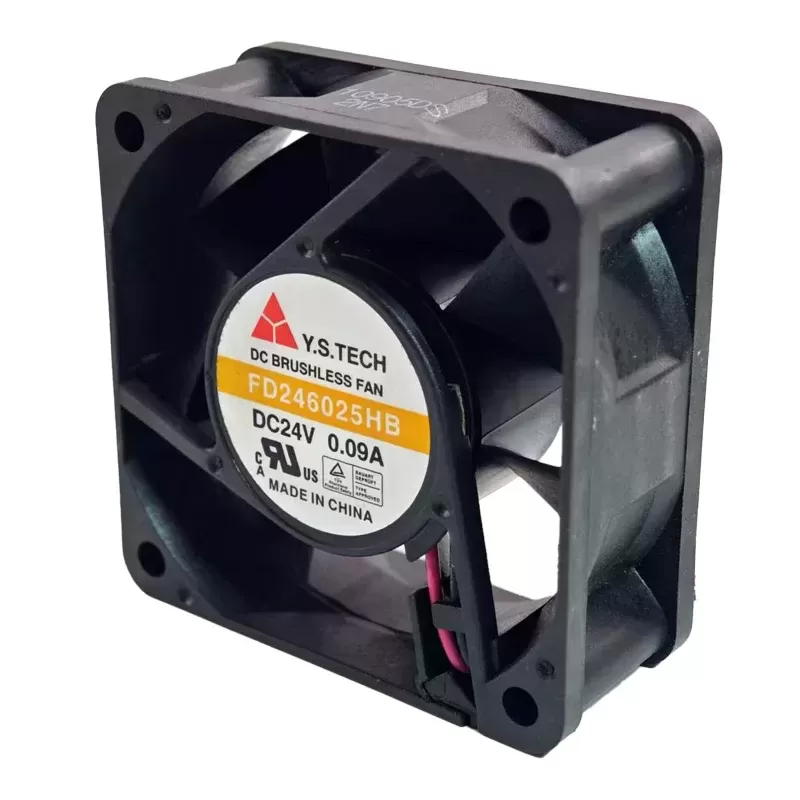

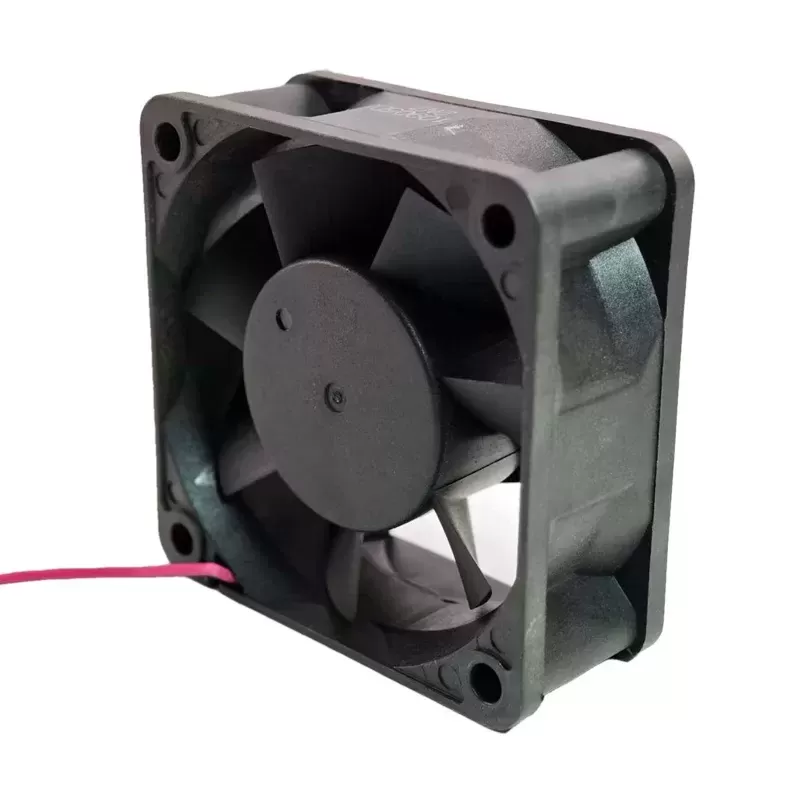

The Y.S. Tech FD246025HB is a reliable 24V DC axial cooling fan measuring 60mm x 60mm x 25mm. Operating at a typical rated current of 0.09A (2.16W), this fan is engineered for effective thermal management in electronic equipment. It achieves a rotational speed of 4300 RPM, delivering 25.4 CFM of airflow. Its noise output is 34.0 dBA, offering a good balance between performance and quiet operation for its size. The fan is typically equipped with ball bearings for a long operational life. Connectivity is via 2-wire leads, and integrated features generally include auto-restart and polarity protection, ensuring dependable performance.
Model Number: FD246025HB
Manufacturer: Y.S. Tech (Yen Sun Technology Corporation)
Type: DC Axial Cooling Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Rated Current: 0.09A
Rated Power: 2.16W
Speed: 4300 RPM
Airflow: 25.4 CFM / 0.72 m³/min
Noise Level: 34.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing (2B)
Life Expectancy: Typically 65,000 hours at 40°C
Operating Temperature: -10°C to 70°C (typical)
Frame Material: Plastic (typically PBT, UL 94V-0)
Impeller Material: Plastic (typically PBT, UL 94V-0)
Features: Auto Restart, Polarity Protection
