Description

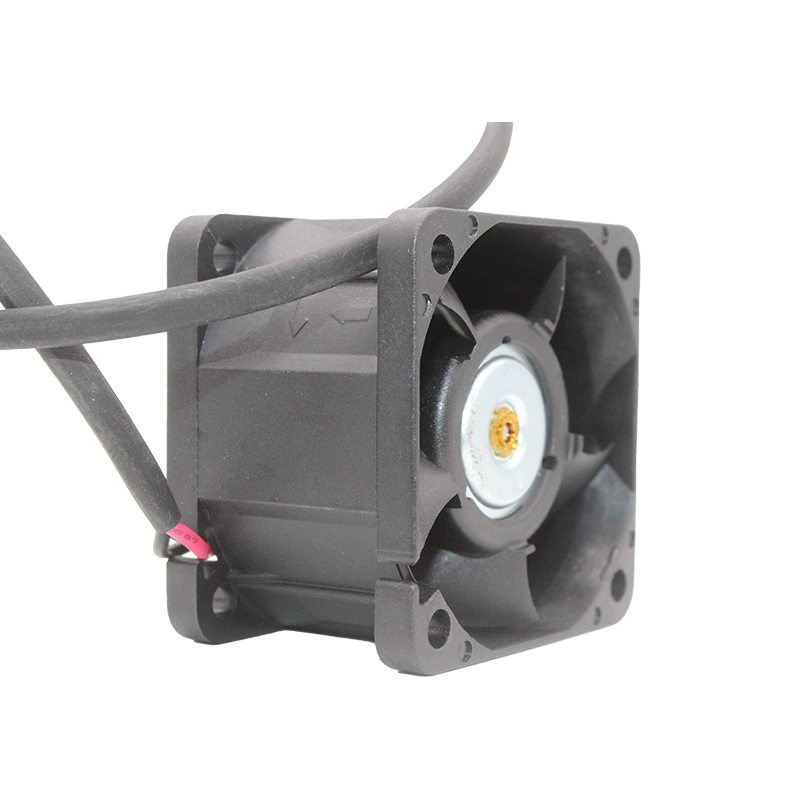

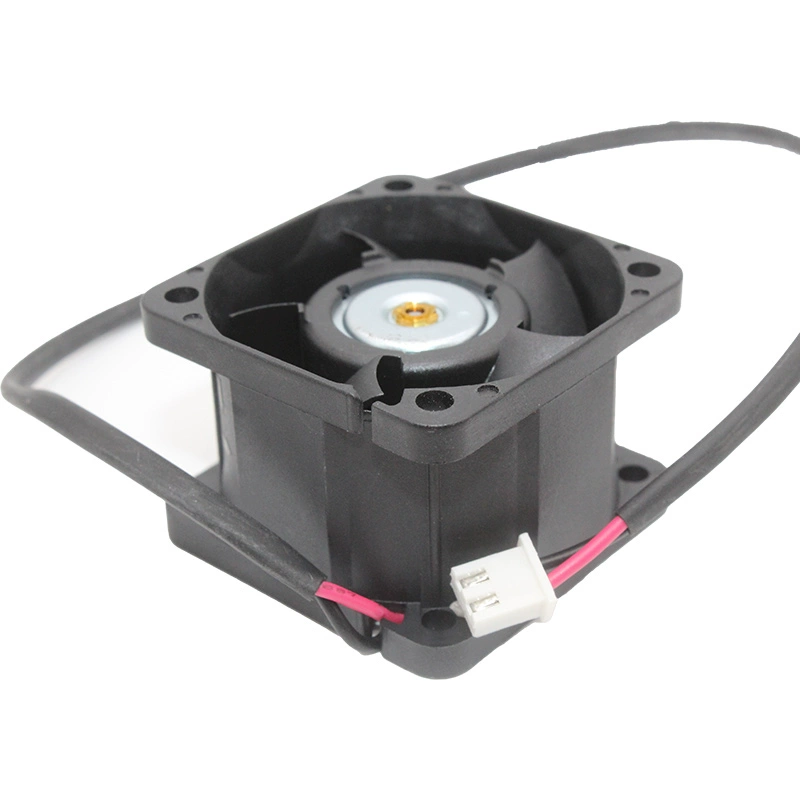

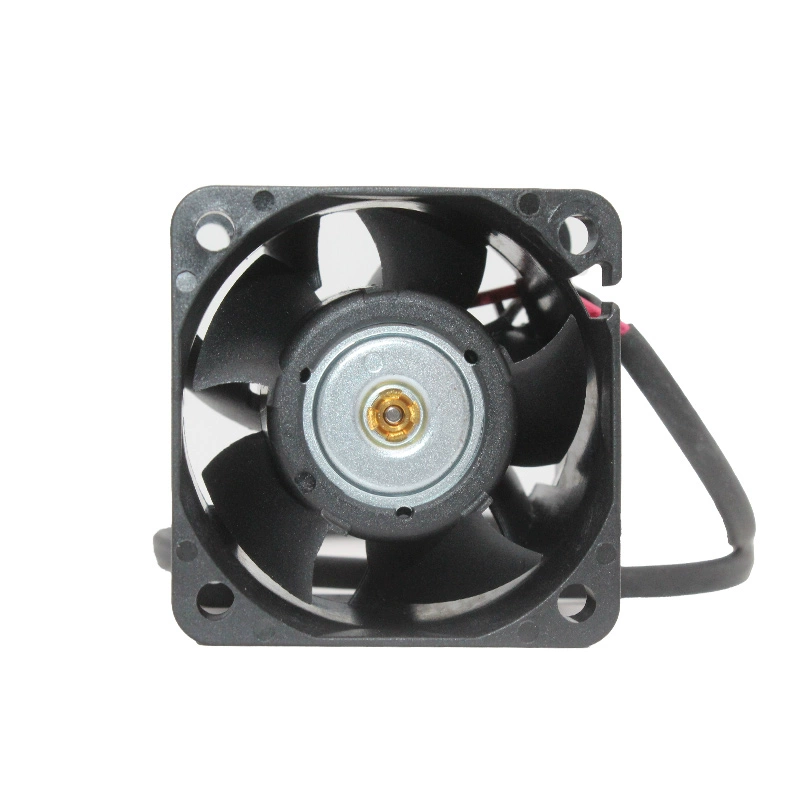

The Delta FFB0412SHN-7CA is a compact, high-performance 12V DC axial cooling fan. Measuring 40mm x 40mm x 28mm, this fan is designed for applications requiring powerful airflow and static pressure in tight spaces, such as server racks, network equipment, and other high-density electronics. It operates at a rated voltage of 12V DC and draws a current of 0.60A, resulting in a power consumption of 7.2W. This allows it to achieve a very high rotational speed of 13800 RPM, delivering an airflow of 25.5 CFM and a static pressure of 1.15 inch-H2O. Its noise level is 55.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 50,000 hours at 40°C. It commonly comes with 2-wire leads for power connection and includes locked rotor protection.
Model Number: FFB0412SHN-7CA
Manufacturer: Delta Electronics
Series: FFB Series
Type: DC Axial Cooling Fan (Tubeaxial)
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Operating Voltage Range: 4V to 13.8V DC
Rated Current: 0.60A
Rated Power: 7.2W (calculated: 12V * 0.60A)
Speed: 13800 RPM
Airflow: 25.5 CFM (0.72 m³/min)
Static Pressure: 1.15 inch-H2O (286.4 Pa)
Noise Level: 55.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 40°C
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Locked Rotor Protection
Operating Temperature: -10°C to +60°C
Weight: 32.21g
Approvals/Certifications: CE, CSA, UL, VDE, RoHS Compliant
