Description

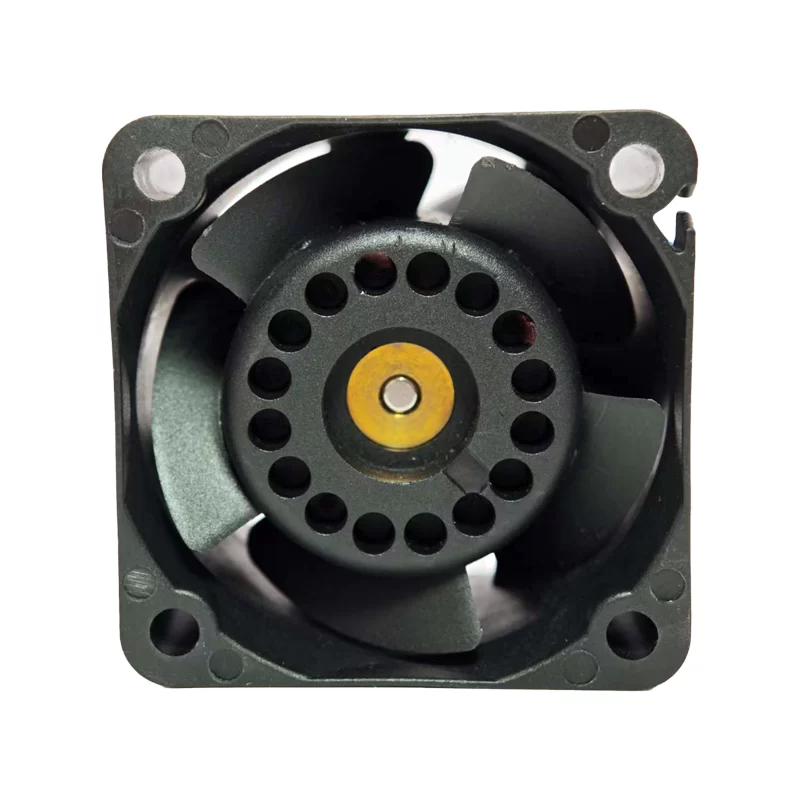

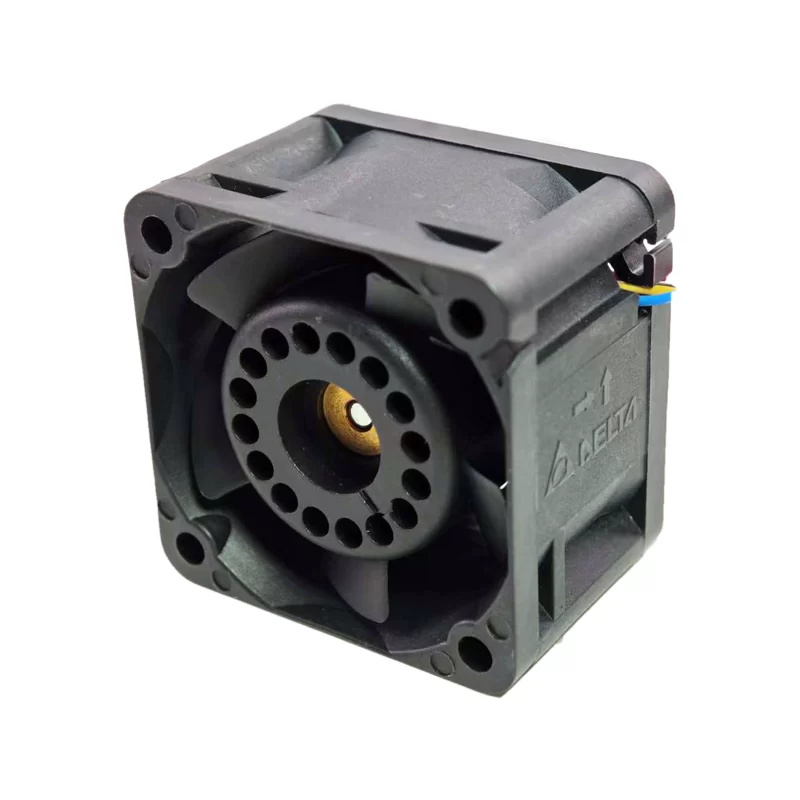

The Delta FFB0412UHN-BC2E is a powerful 12V DC axial cooling fan designed for high-performance server and computer cooling applications. Measuring 40mm x 40mm x 28mm, this fan from Delta Electronics is engineered to provide substantial airflow and static pressure in a compact form factor. It operates at a rated voltage of 12V DC (operating range 7.0V to 13.6V DC), drawing 1.01A of current for a power consumption of 12.12W. This fan achieves a rotational speed of 20000 RPM, delivering an airflow of 34.03 CFM and a static pressure of 0.44 inch-H2O (110 Pa). Its noise level is 55.00 dBA. Featuring durable double ball bearings, a plastic frame and impeller, and a lifespan of 50,000 hours at 25°C, it comes with 4-wire leads for PWM speed control and tachometer output, including locked rotor protection. It is designed for operation in temperatures from -10°C to +70°C.
Model Number: FFB0412UHN-BC2E
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan (High-Performance Server Fan)
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.6V DC
Rated Current: 1.01A
Rated Power: 12.12W
Speed: 20000 RPM
Airflow: 34.03 CFM (0.963 m³/min)
Static Pressure: 0.44 inch-H2O (110 Pa)
Noise Level: 55.00 dBA
Connector: 4-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 50,000 Hours @ 25°C
Frame Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Features: PWM Control, Speed Sensor (Tachometer Output), Locked Rotor Protection, High Air Volume
Approvals/Certifications: RoHS Compliant, REACH (Typical for Delta FFB series)
