Description

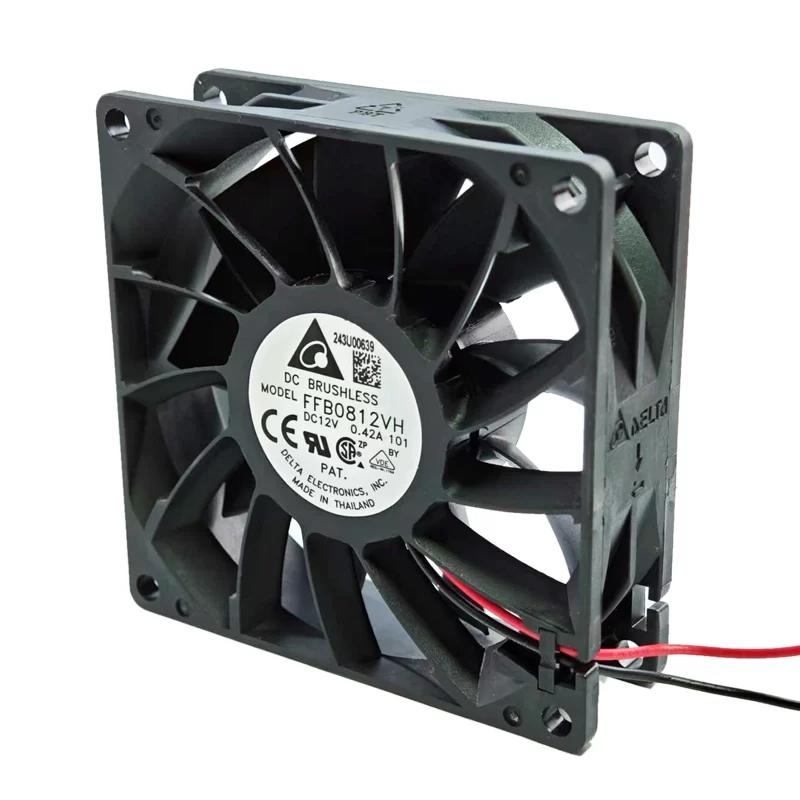

Delta’s new original authentic FFB0812VH-101 12V 0.42A 8025 2-wire chassis cooling fan
Model Number: FFB0812VH-101
Manufacturer: Delta Electronics
Series: FFB
Fan Type: DC Brushless Axial Fan

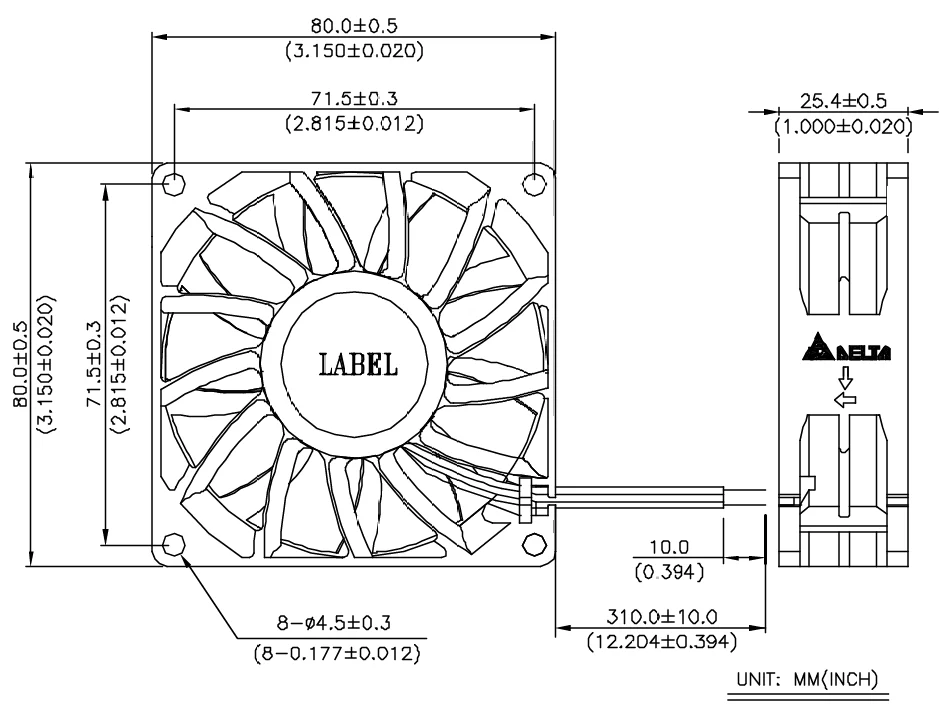

Dimensions L x H x W: 80 mm x 80 mm x 25.4 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.2 VDC
Rated Current: 0.42A
Input Power: 4.08 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 4000 RPM
Maximum Airflow: 54.6 CFM
Maximum Static Pressure: 0.291 in H2O
Noise Level: 45.4 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Locked Rotor Protection
Operating Temperature Range: -10°C to +60°C
Expected Life: 70,000 Hours at 40°C
Mass: 115.21 g
Safety Approvals: CE, CSA, UL, VDE
The Delta FFB0812VH-101 is a high-performance 80x80x25.4mm DC axial fan from Delta’s FFB series. Operating on 12VDC, it consumes 4.08W of power with a current draw of 0.42A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a substantial airflow of 54.6 CFM at a speed of 4000 RPM, generating notable static pressure of 0.291 in H2O. With a noise level of 45.4 dBA, it provides strong cooling for its size. The fan includes locked rotor protection for enhanced reliability. This fan is a versatile and effective thermal management solution commonly used in desktop PCs, small server cases, power supplies, industrial equipment, and other electronic devices requiring robust and consistent cooling.
