FN045-4EK.2F.V7P2 ZIEHL-ABEGG 230V AC Axial Fan 450mm

Description

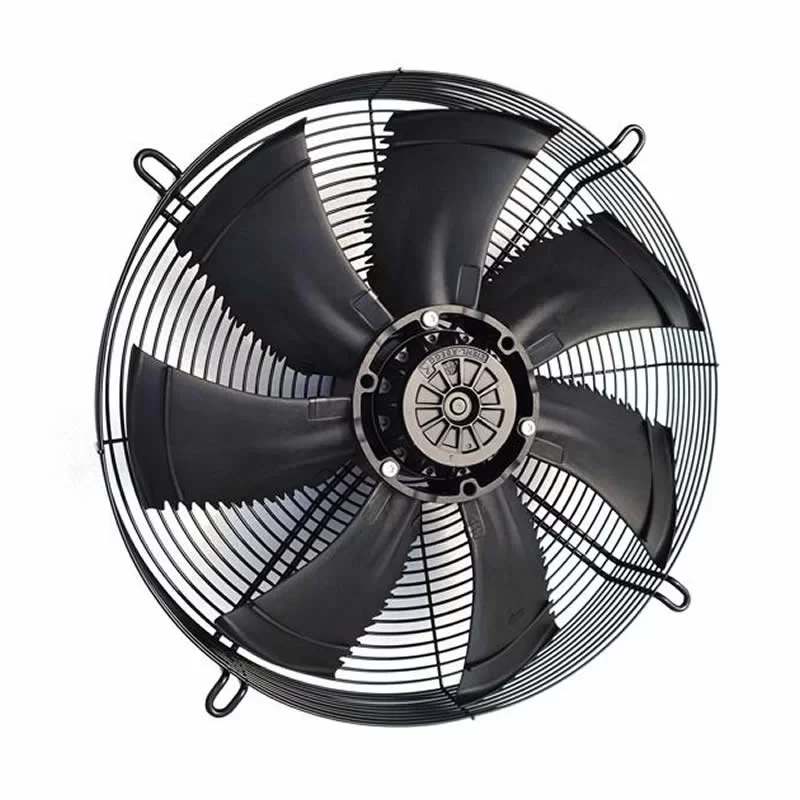

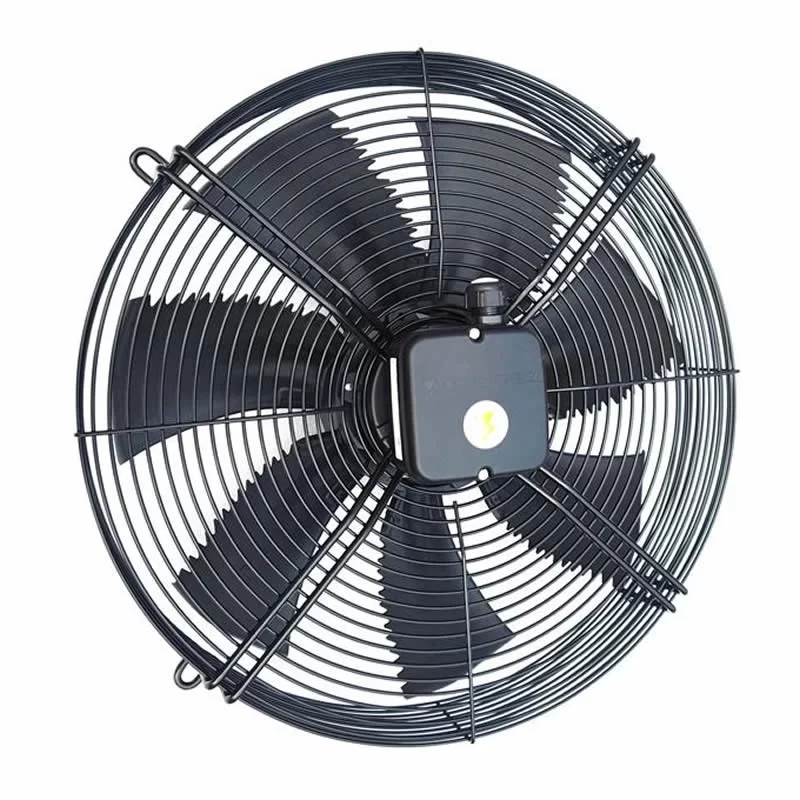

The ZIEHL-ABEGG FN045-4EK.2F.V7P2 is a High-Performance AC Axial Fan with Sickle Blades and a fan diameter of 450 mm. It operates on 1∼230 V±10% at 50 Hz, consuming 390 W Input Power with a Rated Current of 1.75 A. The fan achieves a Rated Speed of 1,290 RPM and delivers an Airflow of 5,700 m3/h (3,354.5 CFM) at free air delivery. It generates a Max Static Pressure of 100 Pa (0.40 inAq) and has an IP54 protection rating with a Thermal Class THCL155. This unit is designed for condenser cooling and HVAC systems where high airflow and robust environmental protection are critical.

FN045-4EK.2F.V7P2 Fan Parameters
Model: FN045-4EK.2F.V7P2
Manufacturer: ZIEHL-ABEGG
Type: AC Axial Fan (Sickle Blade)
Fan Diameter: 450 mm
Bearing Type: Ball Bearing (with long-time lubrication)
Airflow Direction: Suction
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Phase: 1∼
Rated Current: 1.75 A
Starting Current (I): 3.60 A
Current Increase (∆I): 10 %
Rated Input: 390 W
Rated Speed: 1,290 RPM
Airflow (Max. Free Air): 5,700 m3/h (3,354.5 CFM)
Max. Static Pressure (PsF max.): 100 Pa (0.40 inAq)
Sound Power Level (LWA5): 72.0 dB/A
Thermal Class: THCL155
Max. Ambient Temperature: 55 ∘C
Min. Operating Temperature: −25 ∘C
Mass: 6.60 kg
Degree of Protection: IP54
Motor Protection: Thermal Contact (Internally Wired)
Capacitor: 7.0 μF/400 V

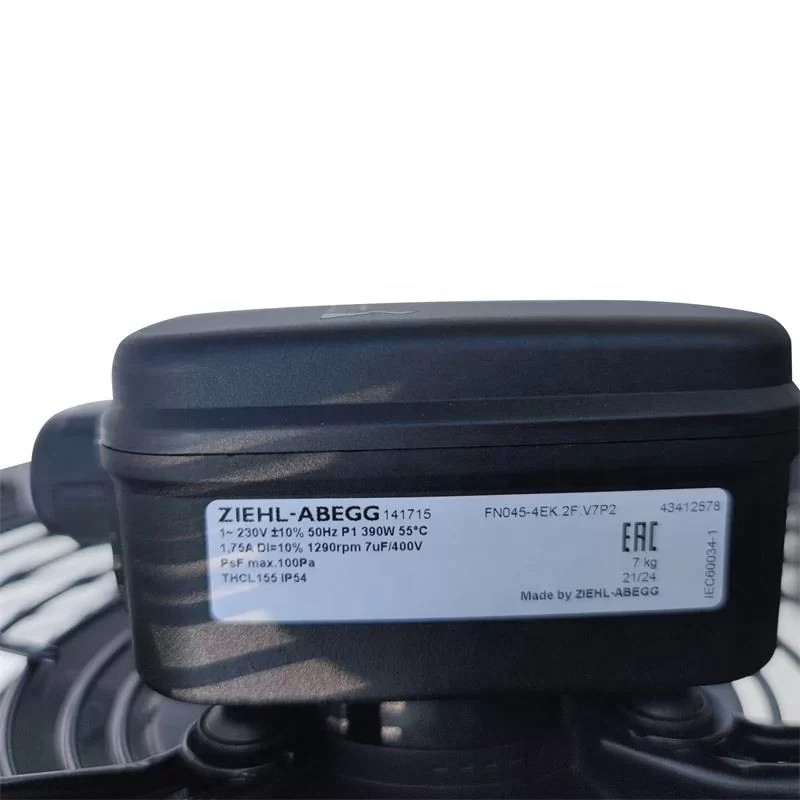

Connection: Terminal Box K05
Number of Blades: 7
Blade Material: High Performance Composite Material

Application
The FN045-4EK.2F.V7P2 is an industrial Axial Fan with high volume air moving capability, designed to provide efficient cooling for high-power systems. Typical applications include air conditioning and ventilation systems, commercial refrigeration condenser units, and industrial heat exchangers where high airflow and environmental resistance are necessary.
