Description

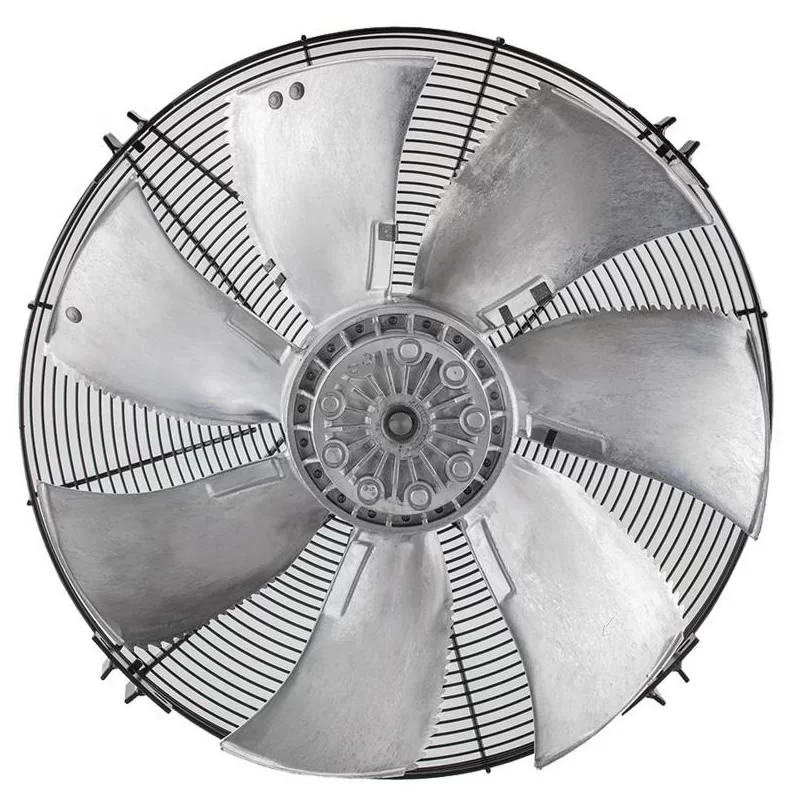

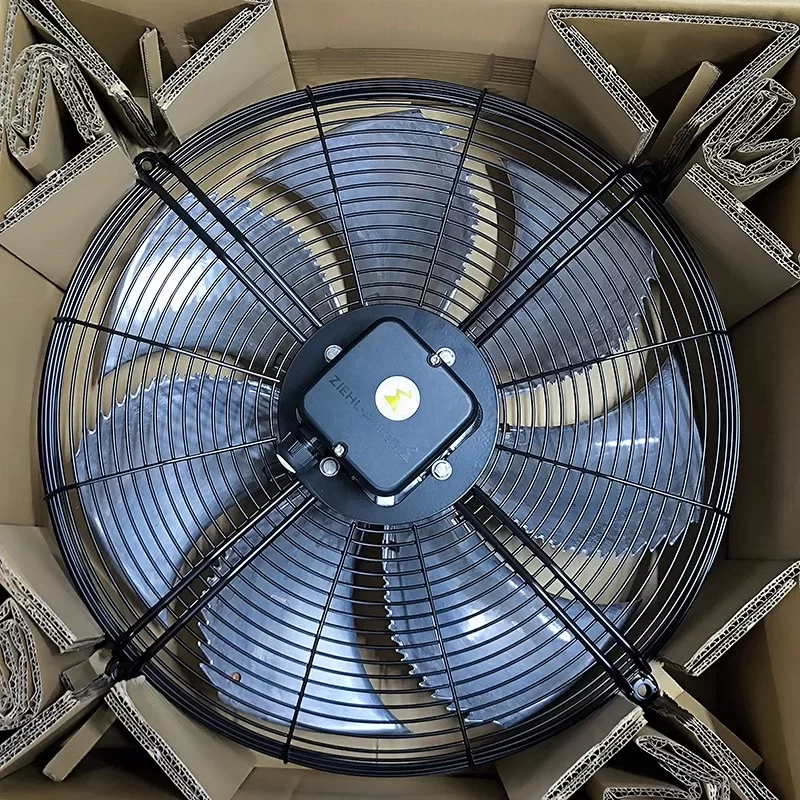

The ZIEHL-ABEGG FN045-VDK.4F.V7P1 is a three-phase AC Axial Fan with measuring dimensions of 450 mm in diameter, belonging to the highly efficient FE2owlet series. It operates on a Nominal Voltage of 400 V at 50/60 Hz and offers dual-speed capability via D/Y connection. The fan’s operating points range from a low of 360 W/0.66 A at 1,020 RPM (50 Hz,Y-connection) up to 840 W/1.50 A at 1,460 RPM (60 Hz,D-connection). It is characterized by an aluminum 7-blade impeller, IP54 protection, and a weight of 11.00 kg, making it a reliable solution for high-volume air circulation in demanding refrigeration and air conditioning units.
Fan Parameters
Manufacturer: ZIEHL-ABEGG
Model: FN045-VDK.4F.V7P1
Type: AC Axial Fan
AC/DC: AC
Phase: 3~
Voltage: 400 V
Frequency: 50/60 Hz
Dimensions: 450 mm (Diameter)
Airflow Direction: Suction (V)
Impeller Material: Aluminium
Number of Blades: 7
Motor Type: External Rotor Motor
Motor Protection: Thermal contact
Protection: IP54
Conformity: ErP 2015 (Efficiency Grade N
actual
=42.0)
Electrical Connection: Terminal box
Weight: 11.00 kg
50 Hz Performance Data (400 V)
Connection: D (Delta)
Power Consumption: 540 W
Current: 1.10 A
Nominal Speed: 1,350 RPM
Max. Working Temperature: 70 °C
Connection: Y (Star)
Power Consumption: 360 W
Current: 0.66 A
Nominal Speed: 1,020 RPM
60 Hz Performance Data (400 V)
Connection: D (Delta)
Power Consumption: 840 W
Current: 1.50 A
Nominal Speed: 1,460 RPM
Max. Working Temperature: 45 °C
Connection: Y (Star)
Power Consumption: 380 W
Current: 0.76 A
Nominal Speed: 840 RPM
Application
Industrial and commercial refrigeration systems, heat pump outdoor units, condensers, evaporators, and general ventilation where a multi-speed, high-efficiency fan is required.
