Description
Okay, here is the translation of the parameters for the ZIEHL-ABEGG FN050-4EK.4I.V7P1 fan, with the content in parentheses removed:
Based on the search results, the FN050-4EK.4I.V7P1 is an axial fan manufactured by ZIEHL-ABEGG. Here are the detailed parameters for this fan model, including data for both 50Hz and partially for 60Hz operation:
General Parameters:
Manufacturer: ZIEHL-ABEGG

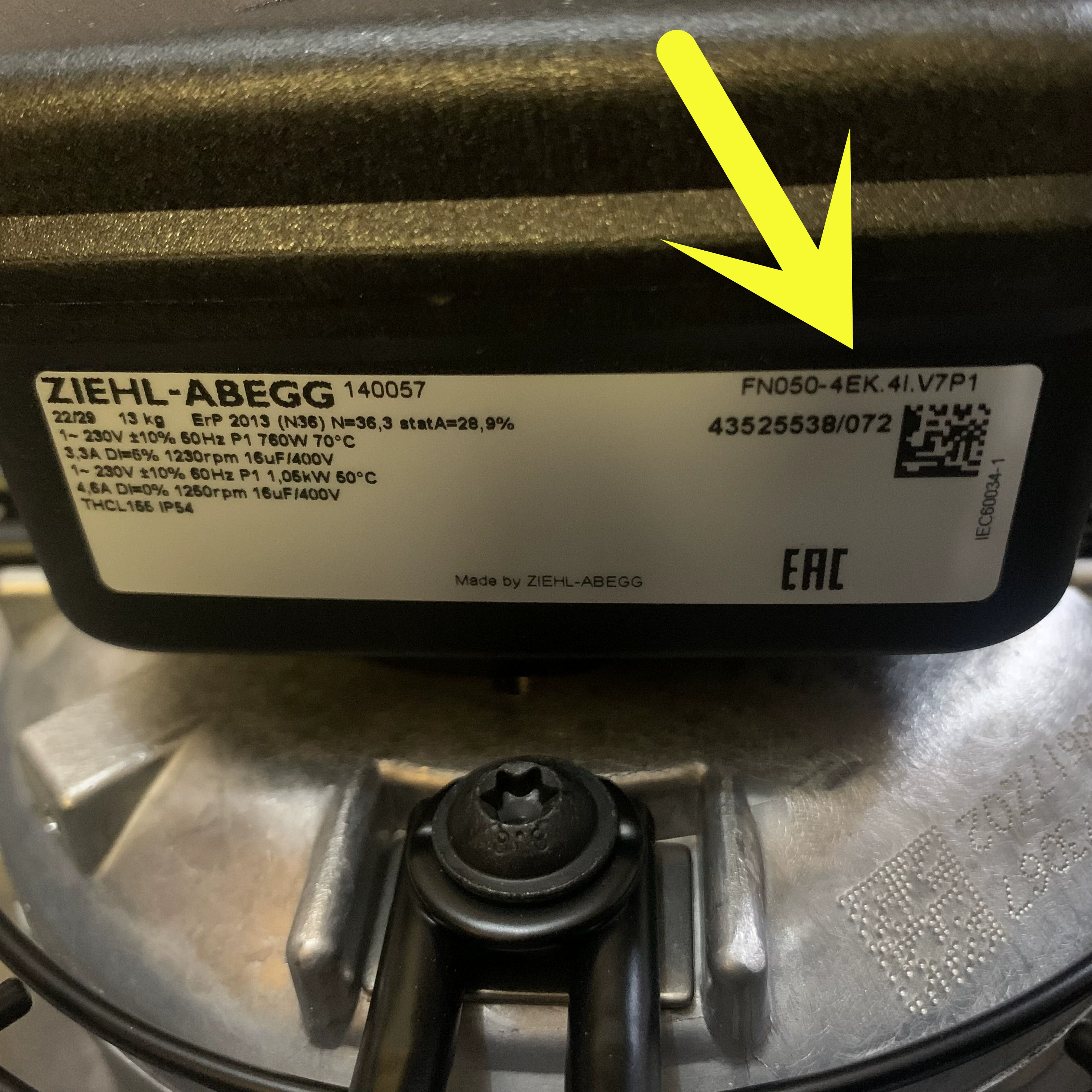

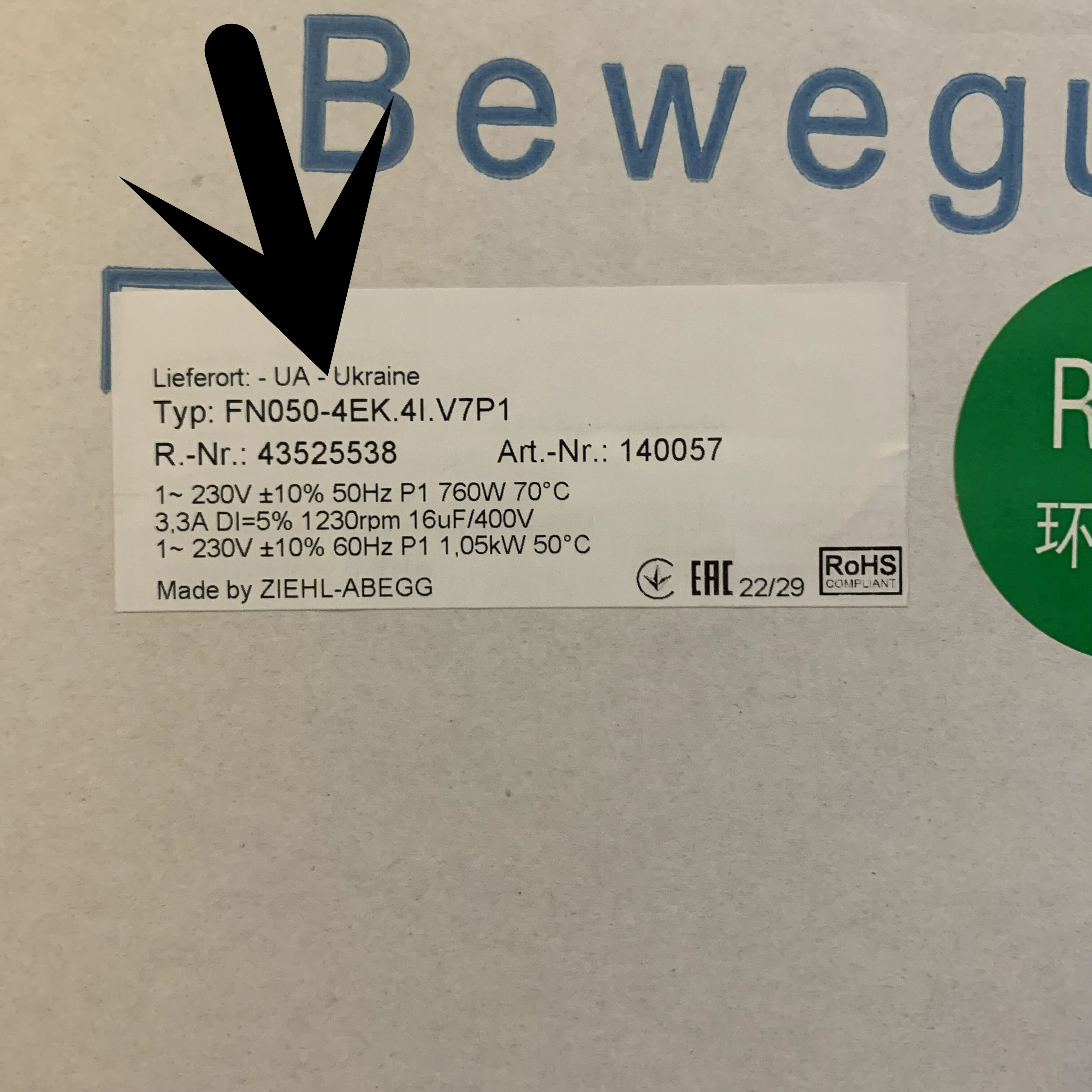

Model: FN050-4EK.4I.V7P1
Product Type: Axial Fan
Motor Technology: AC External Rotor Motor
Impeller Diameter: 500 mm
Number of Blades: 4 Sickle blades
Bearing Type: Ball Bearing, with long-time lubrication
Protection Class: IP54
Thermal Class: THCL155
Electrical Connection: Terminal box K62
Design: K
Airflow Direction: V Ventilating, air blows over the motor side
Weight: Approximately 13.3 – 13.8 kg slight variations between sources
Minimum Operating Temperature: -25 °C
Maximum Medium Temperature: 70 °C
Conformity: ErP 2013, CE
Parameters at 50Hz Operation 1~ 230V ±10%:
Frequency: 50 Hz
Rated Power Input P1: 720 W or 760 W slight variations between sources
Rated Current IN: 3.20 A or 3.3 A slight variations between sources
Rated Speed nN: 1230 RPM or 1240 RPM slight variations between sources
Service Capacitor: 16 µF / 400V
Airflow: 8470 m³/h or 8800 m³/h slight variations between sources
Noise: Approximately 73 dB(A) Sound pressure level, specific values should be taken from the official performance curve diagram
Parameters at 60Hz Operation 1~ 230V ±10%:
Frequency: 60 Hz
Rated Power Input P1: 1.05 kW 1050 W
Rated Current IN: 4.6 A
Rated Speed nN: 1250 RPM
Brand new original authentic product spot ZIEHL-ABEGG Xerox fan FN050-4EK.4I.V7P1
