Description

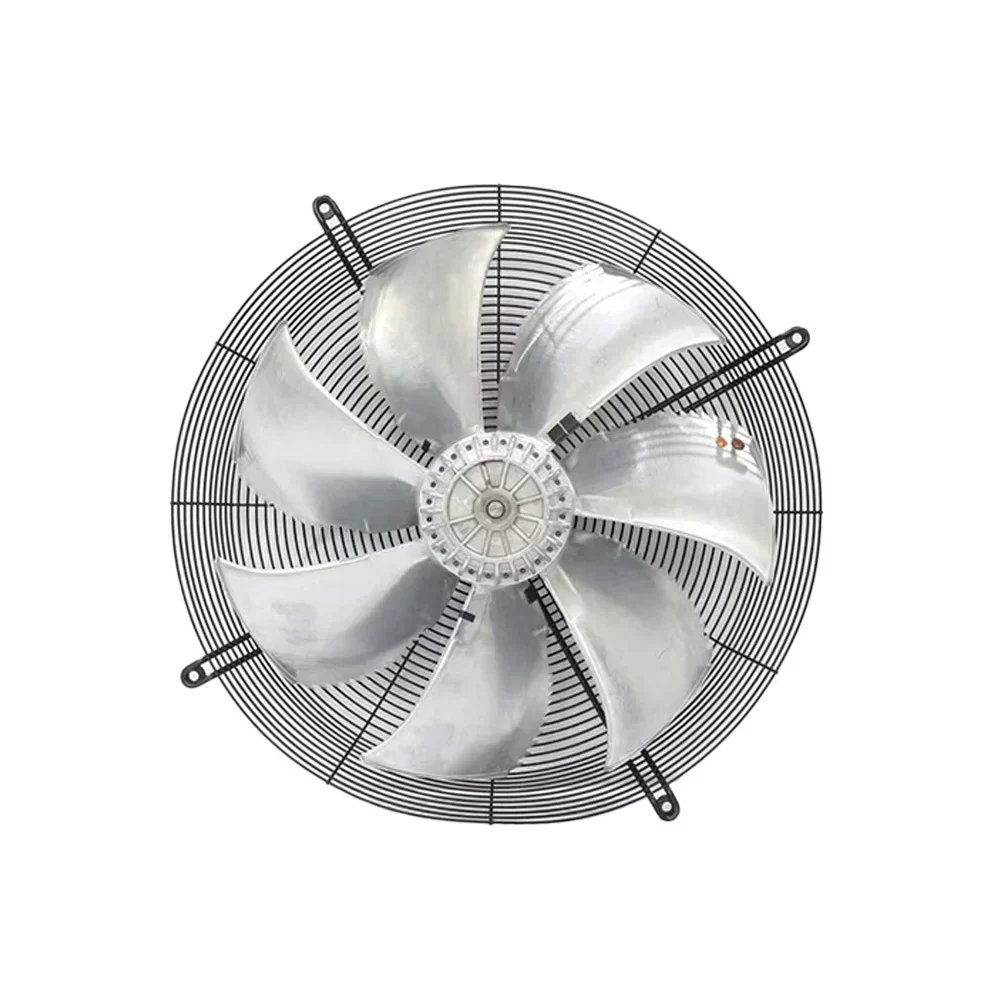

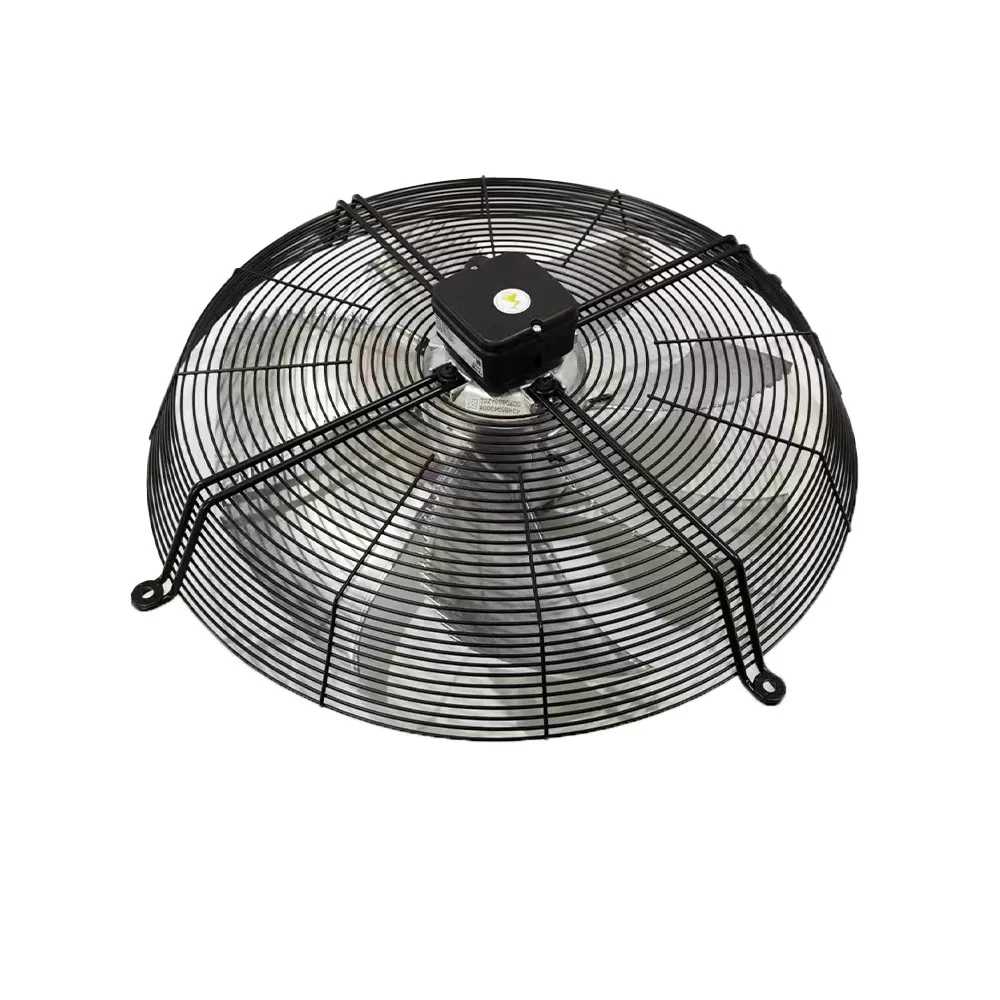

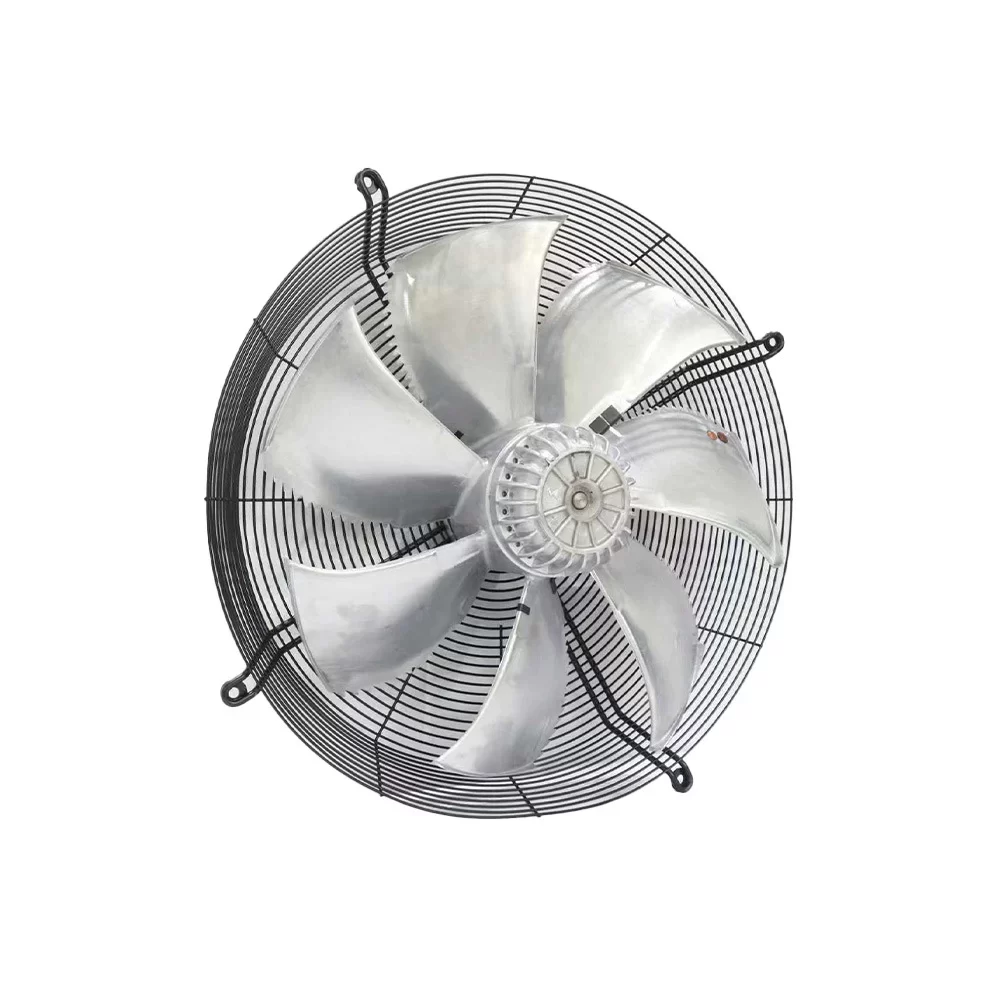

The ZIEHL-ABEGG FN056-VDK.4M.V7P2 is a high-performance AC Axial Fan with dimensions of 560 mm in diameter. This fan operates on 400 VAC at dual frequencies (50 Hz and 60 Hz). At its maximum operating point on 50 Hz, it achieves an exceptional airflow of 11400 m³/h and a speed of 1280 RPM, with a power input of 1050 W. It is engineered for optimal efficiency in high-volume air movement applications like industrial refrigeration and large air handling units.
Model: FN056-VDK.4M.V7P2
Manufacturer: ZIEHL-ABEGG
Type: AC Axial Fan
Dimensions: 560 mm (Diameter)
Nominal Voltage: 400 VAC
Phase: 3~
Frequency: 50 Hz / 60 Hz
Max. Airflow (50 Hz): 11400 m³/h
Max. Speed (50 Hz): 1280 RPM
Max. Input Power (50 Hz): 1050 W
Max. Current (50 Hz): 2.20 A
Max. Speed (60 Hz): 1320 RPM
Max. Input Power (60 Hz): 1350 W
Protection Class: IP54
Max. Ambient Temperature: 70 °C
Weight: 15.4 kg
Application
The FN056-VDK.4M.V7P2 is designed for use in industrial and commercial refrigeration and air conditioning systems, including condensers, dry coolers, and large ventilation units requiring robust performance and high air volume.
