Description

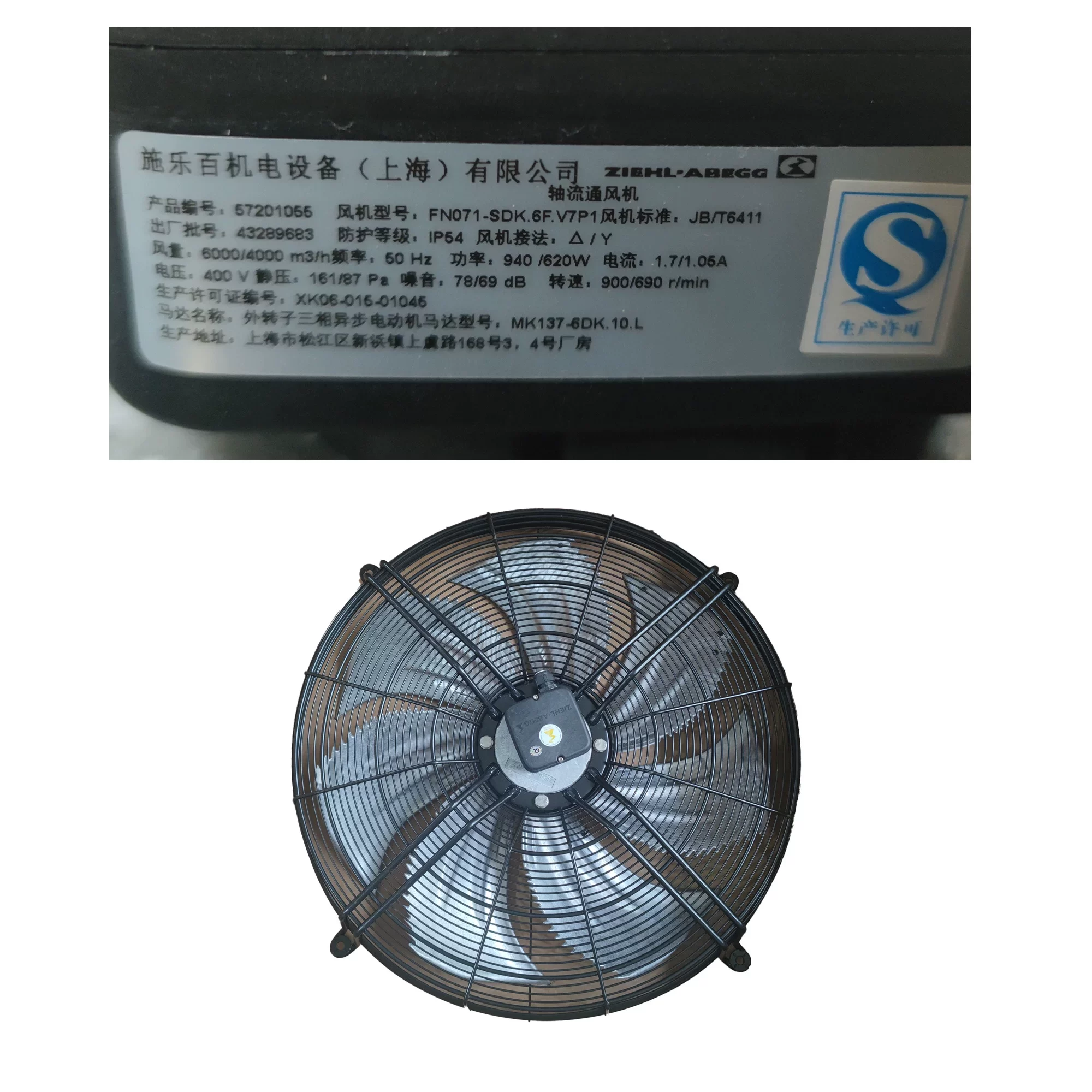

The ZIEHL-ABEGG FN071-SDK.6F.V7P1 is a specialized 400 V 3-Phase Industrial Axial Fan with a 710 mm blade diameter, engineered to comply with the JB/T 6411 standard for high-reliability ventilation. Driven by a high-efficiency MK137-8DK.10.L 8-pole external rotor asynchronous motor with THCL 155 (Class F) insulation and IP54 protection, this unit is optimized for 60 Hz operation. It features a dual-speed Delta/Star (Δ/Y) configuration, delivering a precise Power Consumption of 940 W at 900 RPM (Delta) and 620 W at 690 RPM (Star), while maintaining a static pressure of up to 161 Pa. Constructed with premium sickle-shaped aluminum blades and a 26.00 kg heavy-duty frame with moisture and hot climate protection, this German-engineered unit ensures exceptional acoustic performance, ranging from 69 to 78 dB, and long-term mechanical stability for mission-critical industrial applications at the end.
FN071-SDK.6F.V7P1 Fan Parameters
Model Number: FN071-SDK.6F.V7P1
Manufacturer: ZIEHL-ABEGG (Made in Germany)
Motor Model: MK137-8DK.10.L (3-Phase Asynchronous)
Standard Compliance: JB/T 6411
Type: 3-Phase AC Axial Fan (Sickle blades)
Blade Diameter: 710.0 mm
Weight: 26.00 kg
Nominal Voltage: 3~ 400 VAC (Δ / Y)
Phase: 3~
Frequency: 60 Hz
Rated Performance (Delta Δ): 940 W | 1.70 A | 900 RPM | 78 dB | 6000 m³/h
Rated Performance (Star Y): 620 W | 1.05 A | 690 RPM | 69 dB | 4000 m³/h
Max. Air Flow: 3531.5 CFM (6000.0 m³/h)
Max. Static Pressure: 16.42 mmH₂O (161.0 Pa / 0.65 inH₂O)
Working Air Flow: 6000.0 m³/h
Static Pressure Increase: 161.0 Pa (Delta) / 87.0 Pa (Star)
Efficiency Grade (ErP): Nactual = 44.9 (Ntarget = 40 / ErP 2015 compliant)
Efficiency nstatA: 38.1 %
Electrical Connection: Terminal box K62-40 (Mounted on Stator)
Connection Diagram: 1360-108XA
Motor Protection: Thermal contact (Integrated)
Type of Protection: IP54
Thermal Class: THCL 155 (Class F)
Impregnation: Moisture and hot climate protection
Material Blades: Aluminium (Unpainted)
Material Rotor: Aluminium (Unpainted)
Guard Grille Type: Ring grille
Motor Suspension: Powder-coated RAL 9005 (Jet black)
Hardware: All connecting elements in stainless steel
Fitting Position: H / Vu / Vo
Min. Operating Temperature: -40 °C
Max. Ambient Temperature: 70 °C
Application
The ZIEHL-ABEGG FN071-SDK.6F.V7P1 axial fan is the primary cooling component for heavy-duty refrigeration condensers and industrial HVAC systems operating on 60 Hz power grids, requiring precise dual-speed control and high resistance to hot and humid climates.
