Description

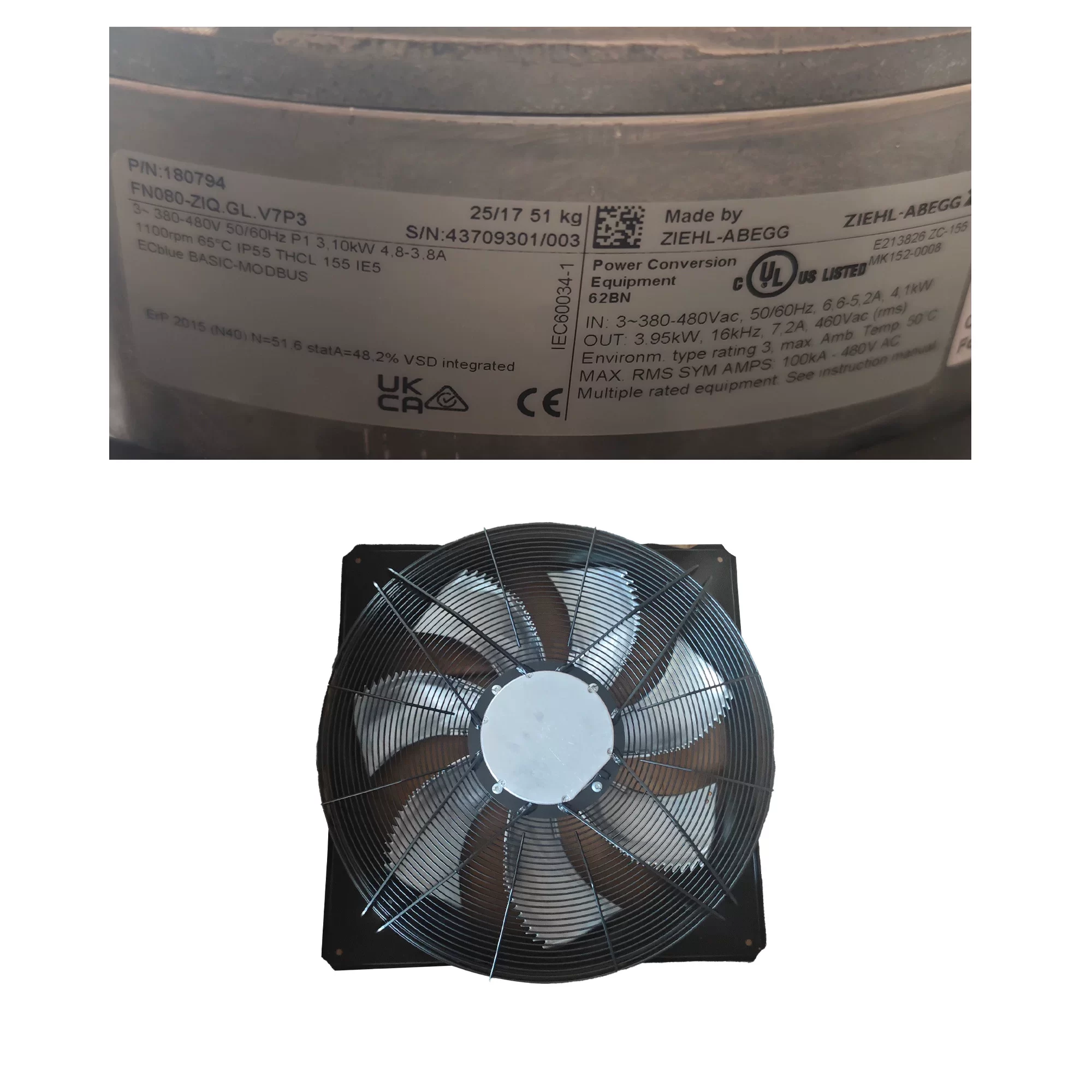

The ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 is a high-performance 380-480VAC three-phase EC Axial Fan featuring 800 mm sickle-shaped aluminum blades and an IE5 efficiency class motor, specifically engineered for mission-critical cooling in Industrial Frequency Converters and large-scale AHU systems. Driven by an intelligent EC external rotor motor with integrated active temperature management and a BASIC-MODBUS controller, this 51.40 kg unit operates within a 380 – 480 VAC range across 50/60 Hz frequencies, delivering a Max. Power Consumption of 3.10 kW and a Max. Current Draw of 4.80 – 3.80 A at a rated speed of 1100 RPM. This High-performance unit features specialized aerodynamic aluminum blades achieves a Max. Air Flow of 18411.0 m³/h (10836.4 CFM / 306.85 m³/min) and a Max. Static Pressure of 25.49 mmH₂O (250.0 Pa / 1.00 inAq) at its optimal efficiency point. Featuring a robust RAL 9005 jet black powder-coated bell mouth and RAL 5002 ultramarine blue rotor, this IP55-rated fan incorporates moisture protection and integrated electronic overload protection, optimized for extreme reliability in industrial VFD systems and hot climate environments at the end.
FN080-ZIQ.GL.V7P3 Fan Parameters
Model Number: FN080-ZIQ.GL.V7P3
Manufacturer: ZIEHL-ABEGG
Article Number: 180794
Type: EC Axial Fan (With sickle blades)
Impeller Size: 800 mm
Weight: 51.40 kg
Origin: Made in Germany
Bearing Type: Ball bearing (Long-time lubrication)
Nominal Voltage: 380 – 480 VAC (3~)
Voltage Range: 380 – 480 VAC (+10% / -15%)
Frequency: 50 / 60 Hz
Max. Current Draw: 4.80 – 3.80 A
Max. Power Consumption: 3.10 kW
Rated Speed: 1100 RPM
Efficiency Class: IE5
Control Interface: BASIC-MODBUS (Integrated controller)
Max. Air Flow: 10836.4 CFM (18411.0 m³/h / 306.85 m³/min)
Max. Static Pressure: 25.49 mmH₂O (250.0 Pa / 1.00 inAq)
Working Air Flow: 18411.0 m³/h
Static Pressure Increase: 250.0 Pa
Motor Protection: Integrated active temperature management
Insulation Class: Thermal class 155 (Class F / THCL 155)
Degree of Protection: IP55
Impeller Material: Aluminium
Rotor Material: Aluminium (RAL 5002 Ultramarine blue)
Housing Material: Bell mouth powder-coated (RAL 9005 Jet black)
Number of Blades: 7 (Sickle-shaped)
Ambient Temperature (Max.): 65 °C
Min. Operating Temperature: -35 °C
Standard Compliance: ErP 2015 (ηstatA: 48.2%); CE; UL/CSA (E213826)
Application
The ZIEHL-ABEGG FN080-ZIQ.GL.V7P3 axial fan is the primary cooling component for high-capacity industrial frequency converters, large condenser units, and specialized AHU systems requiring high-efficiency airflow and MODBUS intelligent control in 380V-480V environments.
