Description

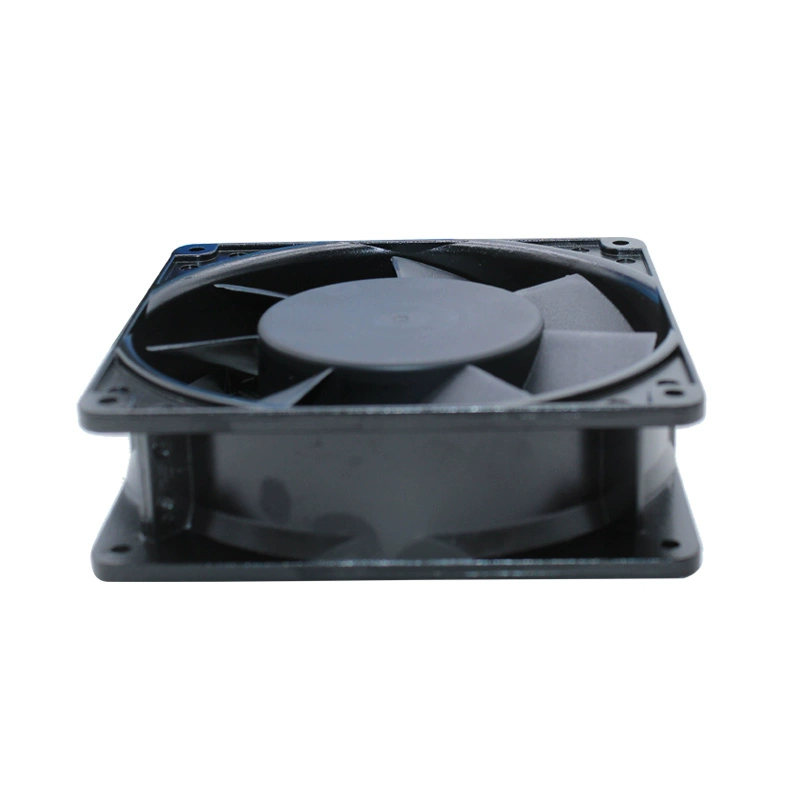

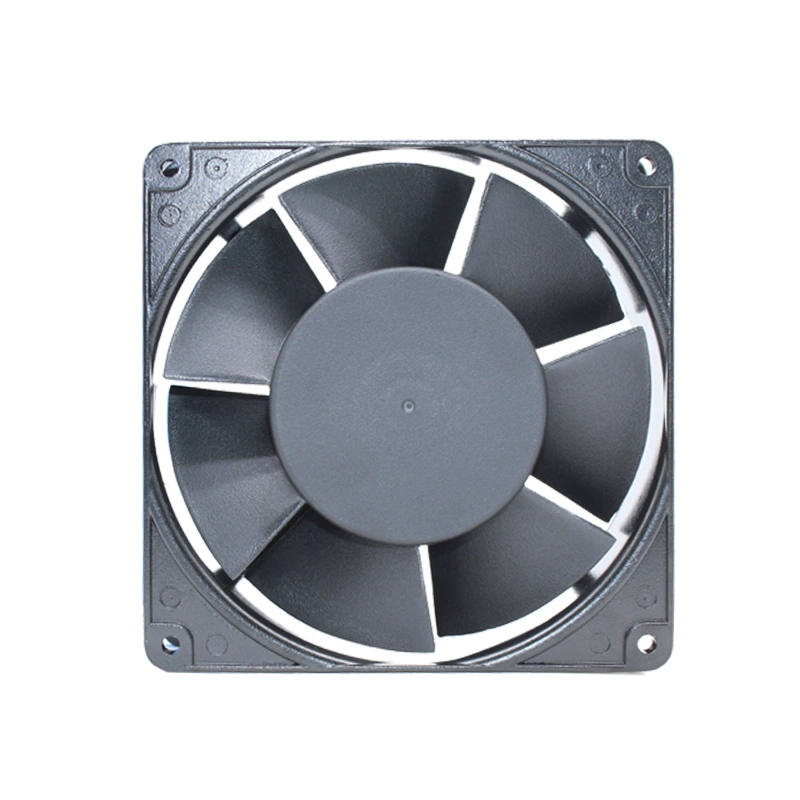

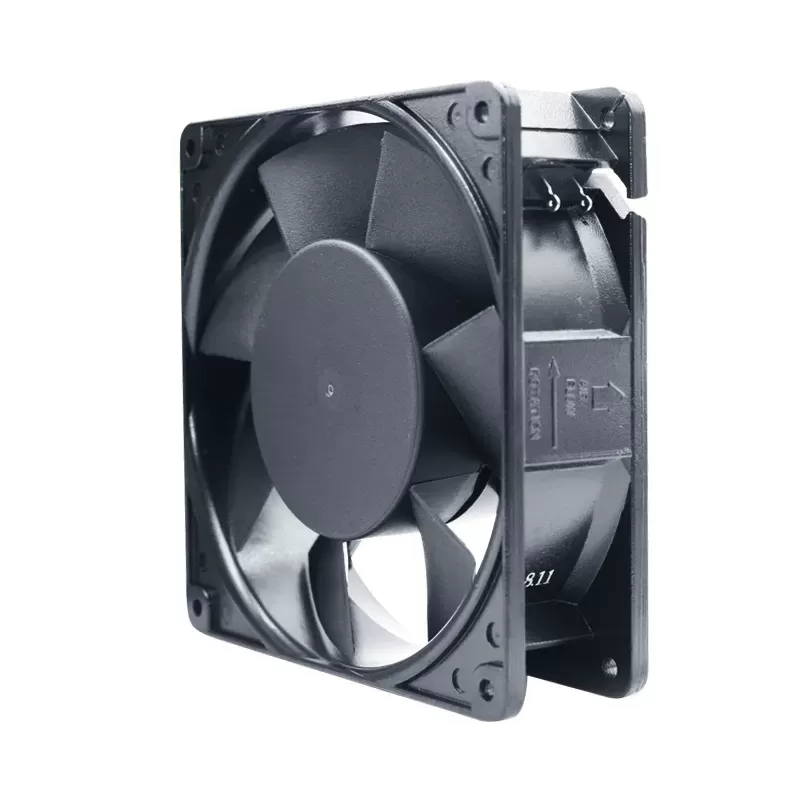

The Commonwealth FP-108-7-S1B is a robust AC Axial Cooling Fan designed for various industrial and electronic systems. Operating on 220V to 240V AC power, its performance adjusts with the frequency. At 50Hz, it draws 0.16A for 24W of power; at 60Hz, it draws 0.14A for 23W. The fan typically runs at speeds of 2700-3000 RPM (50Hz) and 3000-3300 RPM (60Hz), delivering approximately 115 CFM of airflow (50Hz) and 140 CFM (60Hz). It generates about 0.28 inch-H2O (50Hz) and 0.32 inch-H2O (60Hz) of static pressure, with noise levels around 44 dBA (50Hz) and 47 dBA (60Hz). Measuring 127mm x 127mm x 38mm, this fan is built with a durable die-cast aluminum frame and a plastic impeller. It features 2 terminals for connection and is available with either ball or sleeve bearings, ensuring reliability for continuous industrial use. The FP-108-7-S1B has a typical life expectancy of 50,000 hours or more and includes impedance protection, operating efficiently within a temperature range of -10°C to 70°C.
FP-108-7-S1B Taiwan Commonwealth 220V AC cabinet chassis cooling fan 12738 plug-in fan
Manufacturer: Commonwealth
Model Number: FP-108-7-S1B
Type: AC Axial Cooling Fan
Rated Voltage: 220V – 240V AC
Frequency: 50Hz / 60Hz
Rated Current (50Hz): 0.16A
Rated Current (60Hz): 0.14A
Rated Power (50Hz): 24W
Rated Power (60Hz): 23W
Speed (50Hz): 2700 RPM / 3000 RPM
Speed (60Hz): 3000 RPM / 3300 RPM
Airflow (50Hz): Approximately 115 CFM (3.26 m³/min)
Airflow (60Hz): Approximately 140 CFM (3.96 m³/min)
Static Pressure (50Hz): 0.28 inch-H2O (approximately)
Static Pressure (60Hz): 0.32 inch-H2O (approximately)
Noise Level (50Hz): 44 dBA (approximately)
Noise Level (60Hz): 47 dBA (approximately)
Dimensions: 127mm x 127mm x 38mm
Connector: 2 Terminals
Bearing Type: Ball Bearing / Sleeve Bearing
Life Expectancy: Typically 50,000 hours or more
Operating Temperature: -10°C to 70°C
Frame Material: Die-cast aluminum
Impeller Material: Plastic (UL 94V-0 rated)
Features: Impedance Protected, Shaded Pole Motor
