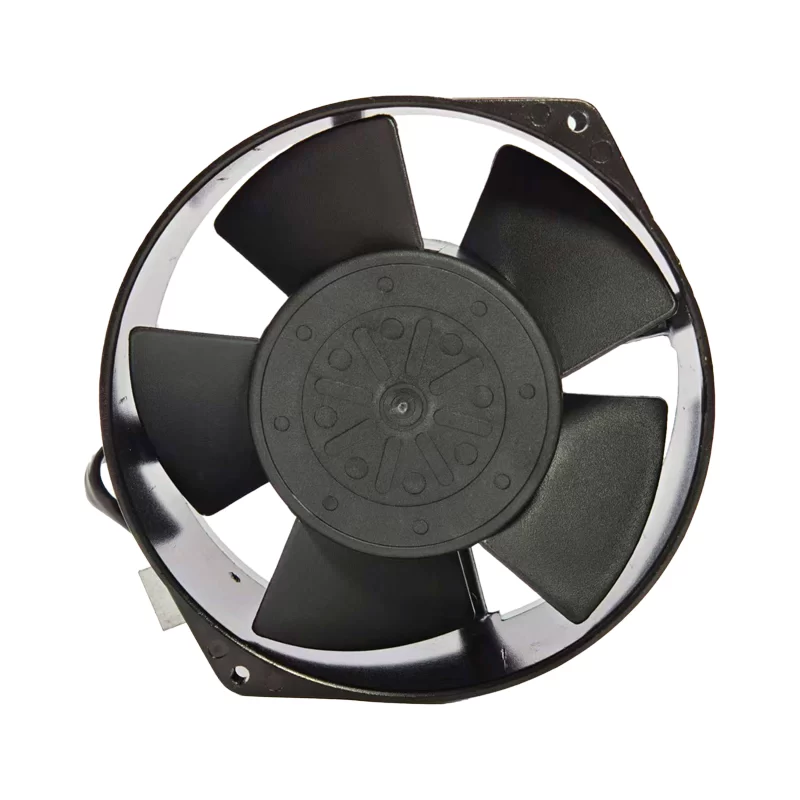

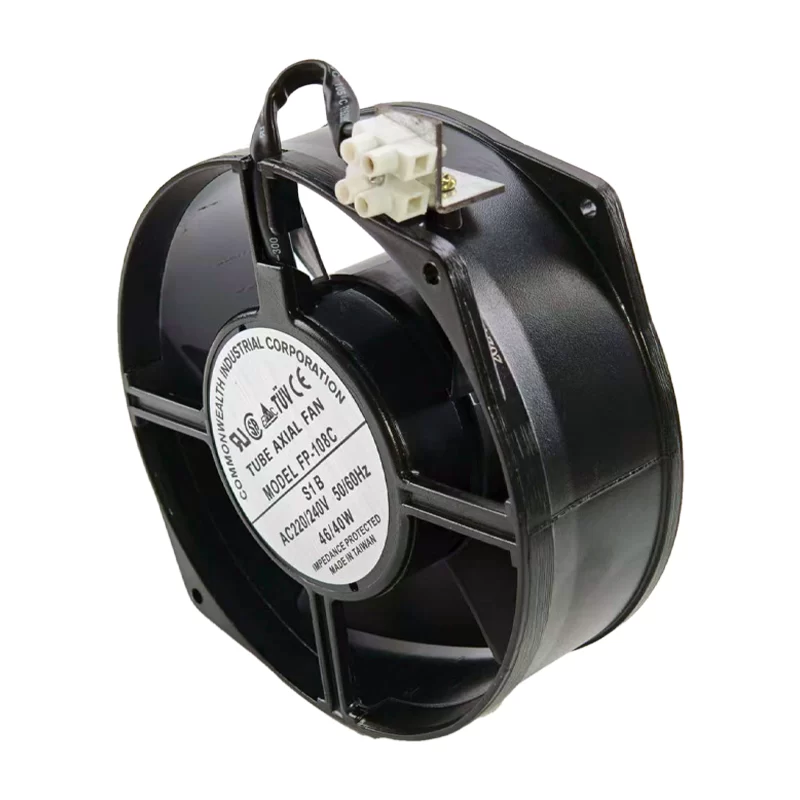

FP-108C-S1B Commonwealth 220-240V AC Axial Fan

Description

The Commonwealth FP-108C-S1B is an AC Axial Fan with dimensions of 108x108x25mm. It operates on a nominal voltage range of 220-240V and supports both 50Hz and 60Hz frequencies. At 50Hz, it has a power consumption of 46W. At 60Hz, its power consumption is 40W. This fan delivers an airflow of 420m³/h (247.2CFM) at a speed of 2700RPM, with a noise level of 51dBA. It utilizes a ball bearing and features 2 wire leads for termination. It is suitable for robust cooling applications in electronic cabinets, industrial equipment, and various systems designed for international power grids.

FP-108C-S1B Fan Parameters
Model: FP-108C-S1B
Manufacturer: Commonwealth
Type: AC Axial Fan
Dimensions: 108 x 108 x 25 mm
Nominal Voltage: 220-240 V
Frequency: 50/60 Hz
Power Consumption (50Hz): 46 W
Power Consumption (60Hz): 40 W
Airflow: 420 m³/h (247.2 CFM)
Speed: 2700 RPM
Noise: 51 dBA
Bearing: Ball bearing
Termination: 2 Wire Leads
Weight: 850 g
Application: Electronic cabinets, industrial equipment, international power grids.
