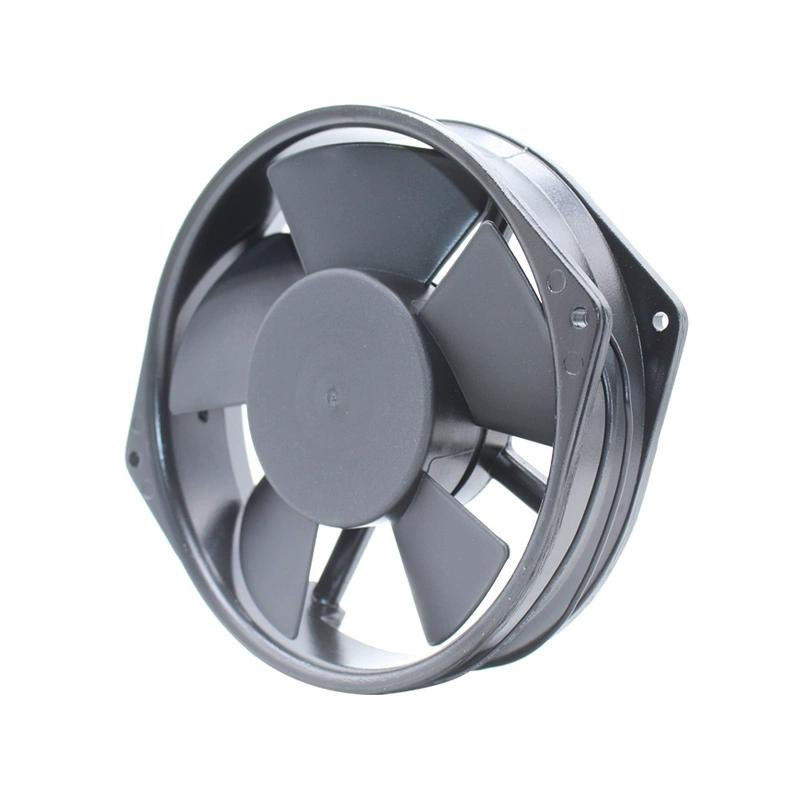

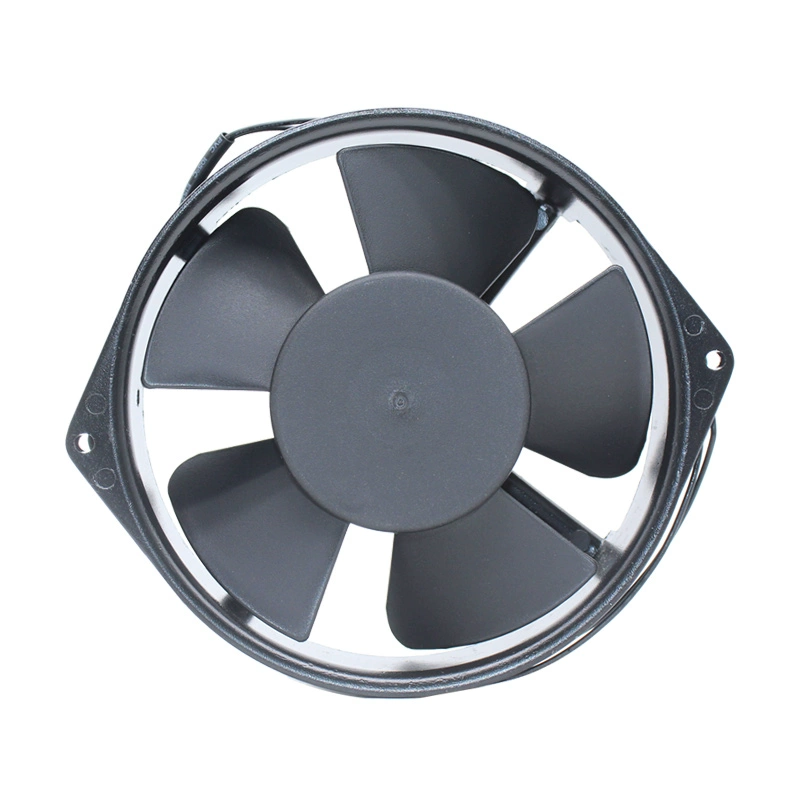

FP-108CX-S1B Commonwealth AC Axial Cooling Fan

Description

The Commonwealth FP-108CX-S1B is an AC axial cooling fan measuring 172mm x 150mm x 38mm. Designed for robust thermal management in industrial and commercial applications, it operates on 220V to 240V AC power at both 50Hz and 60Hz. At 50Hz, it has a rated current of 0.18A and power of 27W, delivering approximately 140 CFM of airflow at 2300 RPM. At 60Hz, the current is 0.16A with power of 24W, providing around 130 CFM at 2000 RPM. Its noise level is typically around 31.0 dBA at both frequencies, and it achieves a static pressure of 0.38 inch-H2O (94.6 Pa). The fan is built with ball bearings for enhanced durability and connects via 2-wire leads.

Model Number: FP-108CX-S1B
Manufacturer: Commonwealth
Type: AC Axial Cooling Fan
Dimensions: 172mm x 150mm x 38mm
Rated Voltage: 220-240V AC
Frequency: 50/60 Hz
Rated Current (50Hz): 0.18A
Rated Current (60Hz): 0.16A
Rated Power (50Hz): 27W
Rated Power (60Hz): 24W
Speed (50Hz): 2300 RPM
Speed (60Hz): 2000 RPM
Airflow (50Hz): 140 CFM / 4.0 m³/min
Airflow (60Hz): 130 CFM / 3.7 m³/min
Static Pressure: 0.38 inch-H2O / 94.6 Pa
Noise Level: 31.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Plastic (often fiberglass filled UL 94V-0)
Motor: Shaded Pole, Impedance Protected
