Description

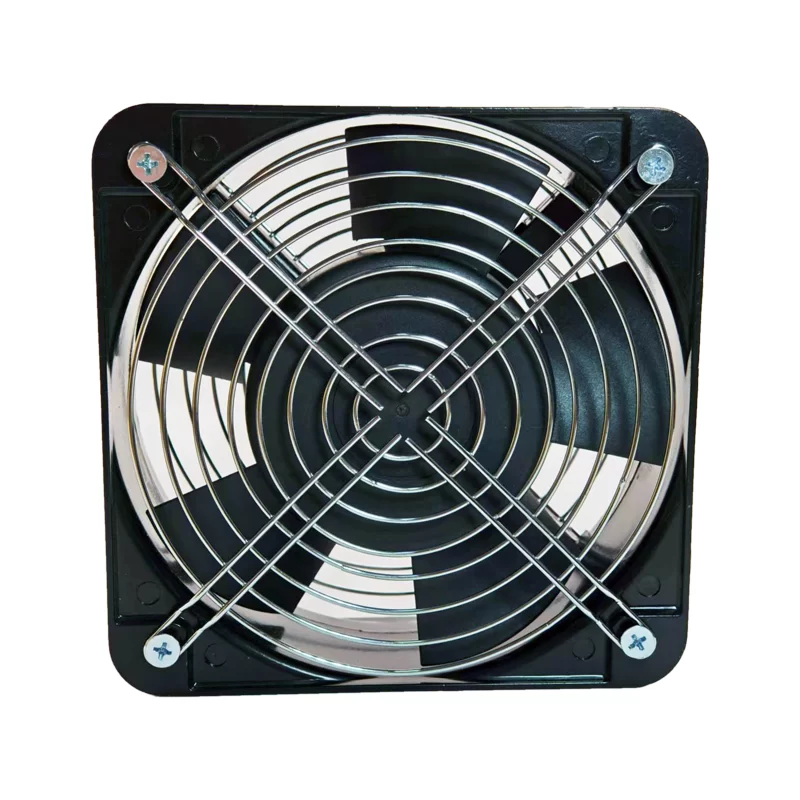

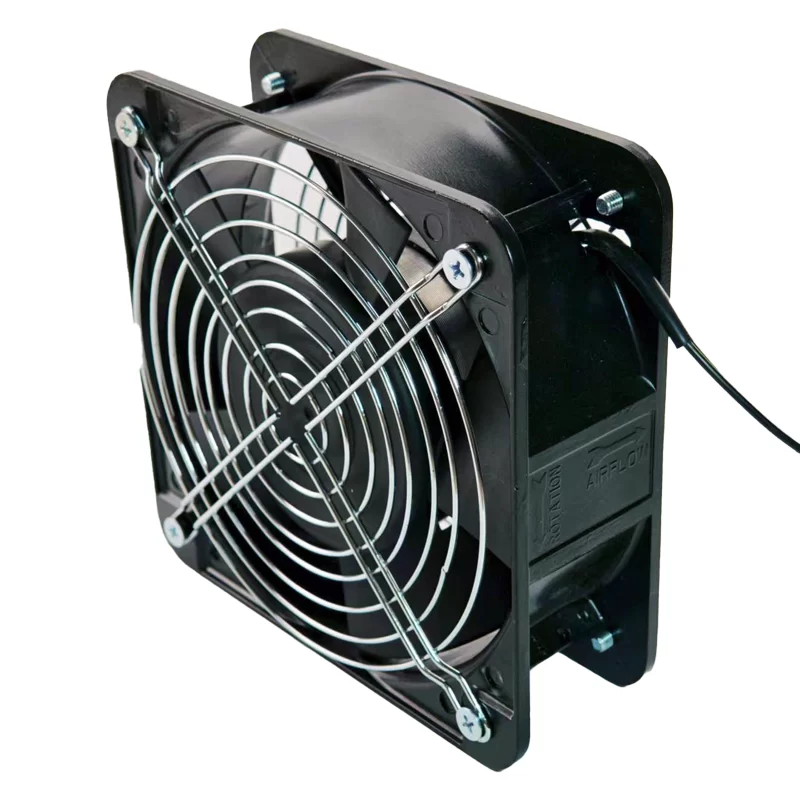

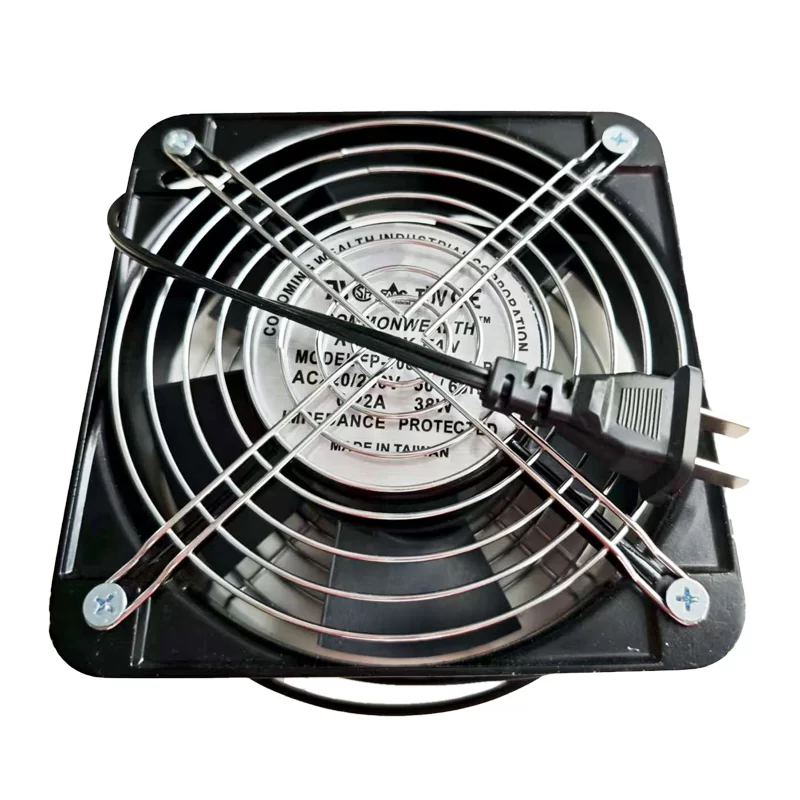

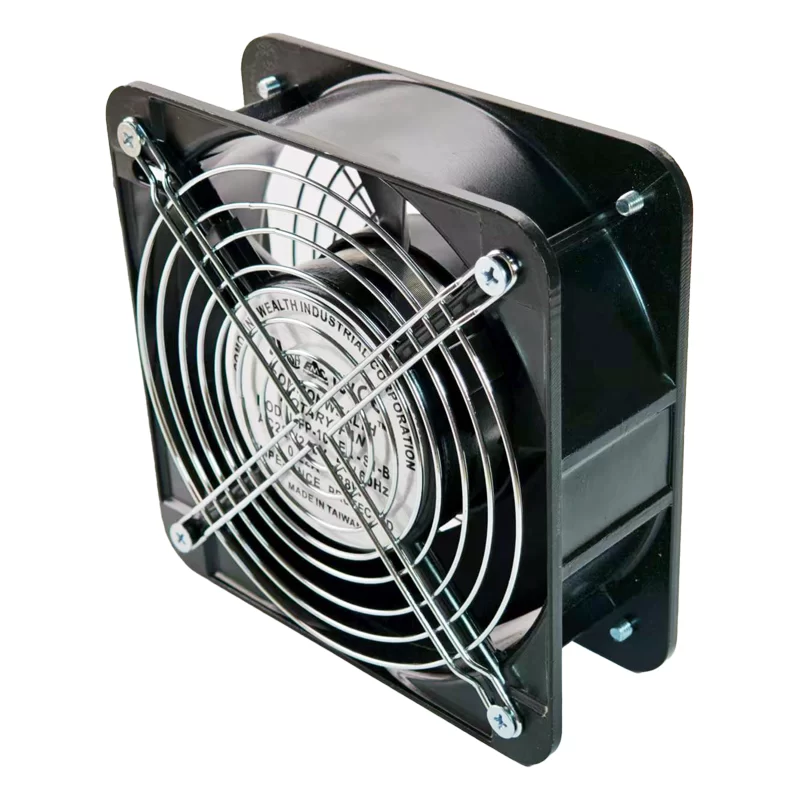

The COMMONWEALTH FP-108EX-S1-B is an AC axial fan measuring 150x150x50mm. It operates on 220-240 VAC at 50/60 Hz frequencies, with current consumption typically between 0.22 A and 0.29 A, resulting in a power consumption of 35 W to 38 W. This fan typically achieves a speed of 2800 RPM, providing an airflow of 5.1 m³/min (approximately 180 CFM). The noise level is generally around 58 dB(A). It features ball bearings for a long and reliable service life. The fan is generally constructed with a die-cast aluminum alloy frame and plastic blades. It connects via 2-wire Leads. This fan is widely used for general cooling in cabinets, industrial equipment, and various electronic systems.
FP-108EX-S1-B Fan Parameters
Model: FP-108EX-S1-B
Manufacturer: COMMONWEALTH (ROTARY Fan)
Type: AC Axial Fan
Dimensions: 150x150x50 mm
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.22 A – 0.29 A
Power Consumption: 35 W – 38 W
Speed: 2800 RPM
Airflow: 5.1 m³/min (180 CFM)
Noise Level: 58 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Weight: 950 g
Material Frame: Die-cast aluminum alloy
Material Blade: Plastic (PBT + Glass fiber)
Operating Temperature: -20 to 75°C
Expected Life: 50000 Hrs (at 40°C)
Application: Cabinet cooling, industrial equipment, general electronic cooling.
