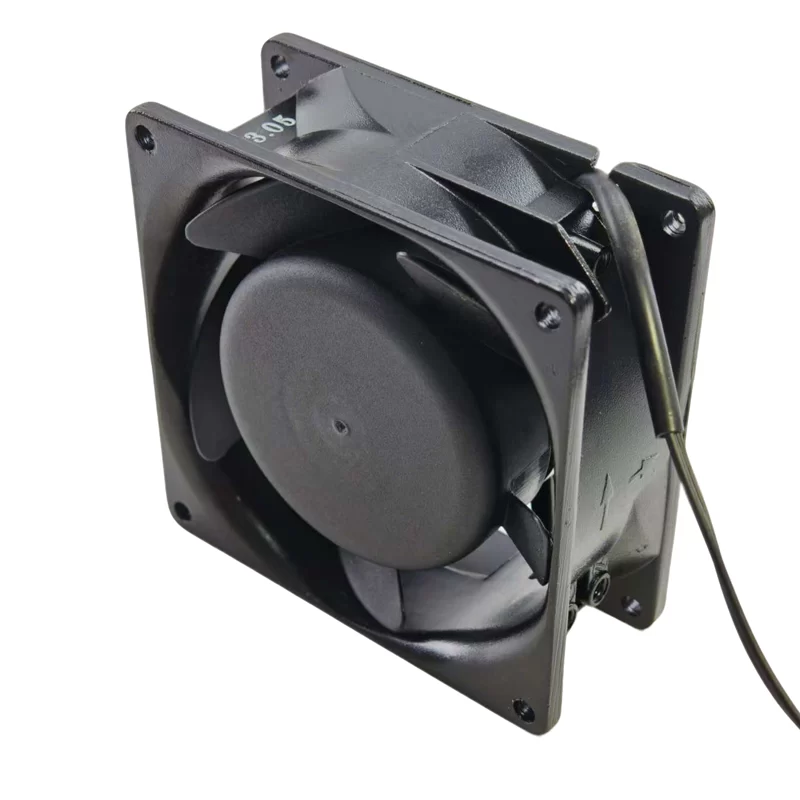

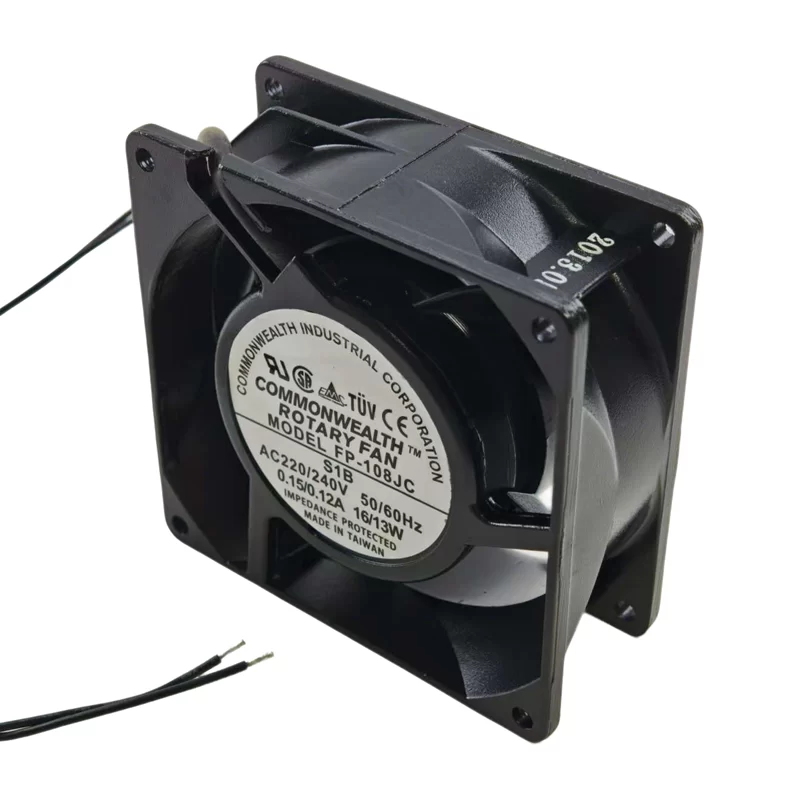

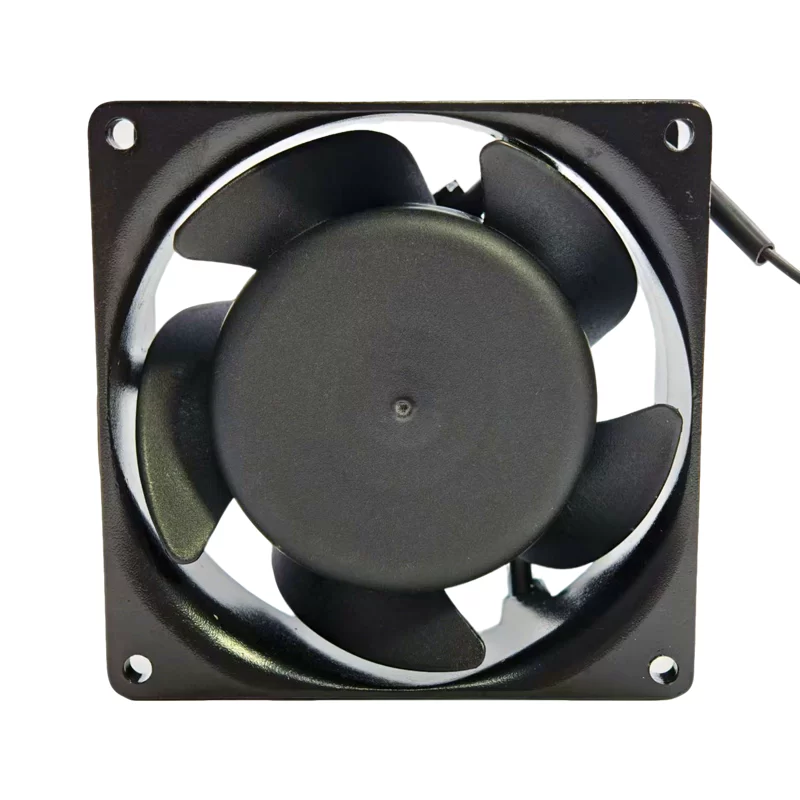

FP-108JC S1B Commonwealth 220-240V AC Axial Fan

Description

The Commonwealth FP-108JC S1B is a high-performance, multi-frequency AC axial fan with dimensions of 92 x 92 x 38 mm. It operates on 220-240V at both 50 Hz and 60 Hz. At 50 Hz, it draws 0.15 A of current, consumes 16 W of power, and delivers 40 CFM (68 m³/h) of airflow at 2700 RPM with a noise level of 35 dB(A). At 60 Hz, it draws 0.12 A, consumes 13 W, and delivers 45 CFM (76.5 m³/h) of airflow at 3000 RPM with a noise level of 37 dB(A). The fan achieves a static pressure of 0.17/0.20 inch H₂O (42.3/49.8 Pa) and connects via a two-wire termination.

FP-108JC S1B Fan Parameters
Manufacturer: Commonwealth
Model: FP-108JC S1B
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 220-240V
Rated Frequency: 50/60 Hz
Current Rating: 0.15/0.12 A
Power Consumption: 16/13 W
Airflow: 40/45 CFM (68/76.5 m³/h)
Static Pressure: 0.17/0.20 inch H₂O (42.3/49.8 Pa)
Speed: 2700/3000 RPM
Noise Level: 35/37 dB(A)
Termination: Two Wire Leads
Application: The FP-108JC S1B is suitable for cooling in power supplies, industrial control cabinets, and HVAC systems.
