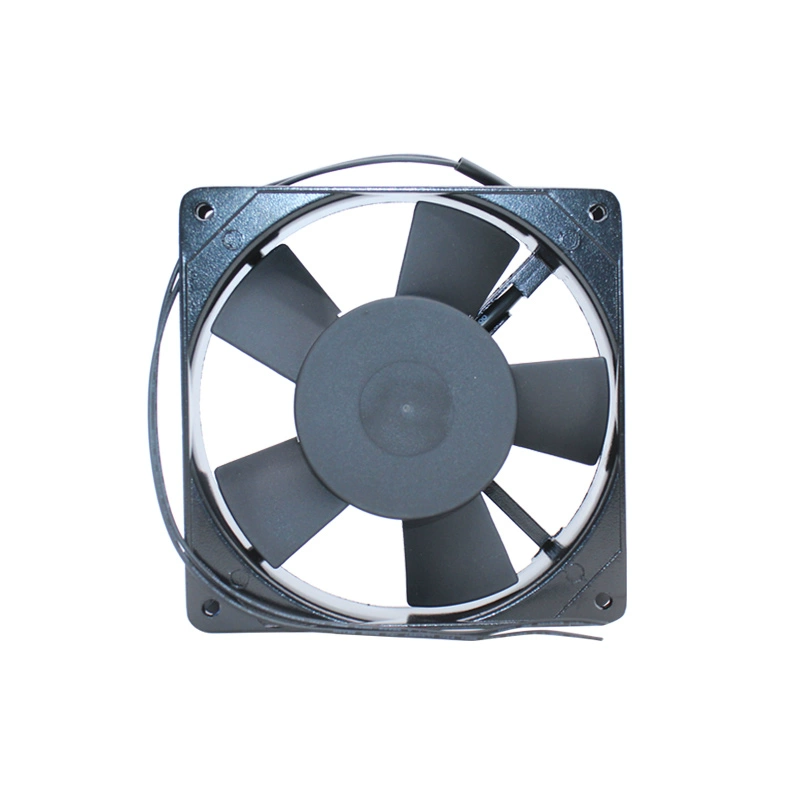

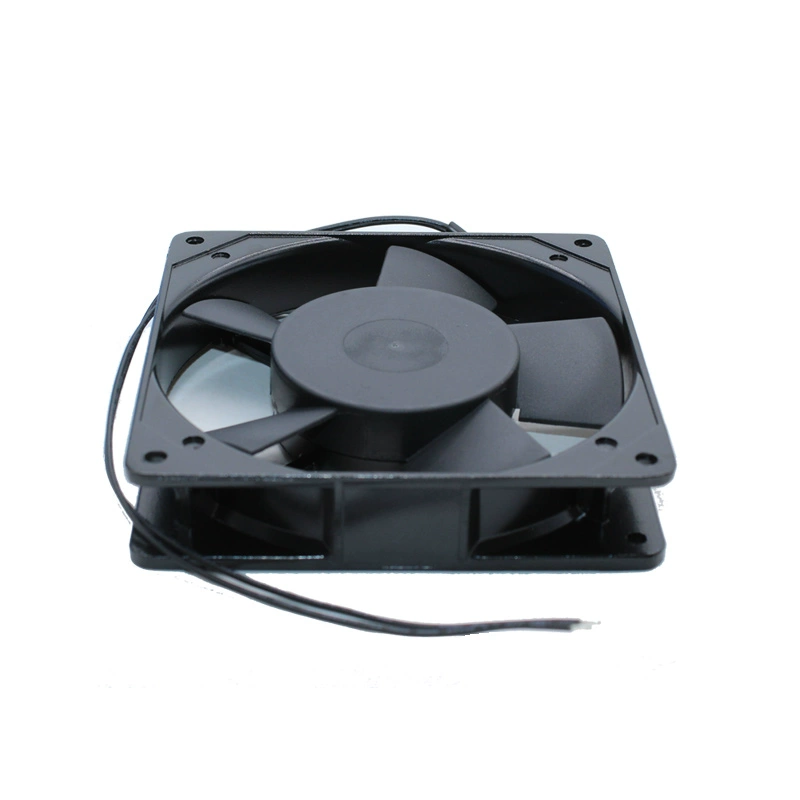

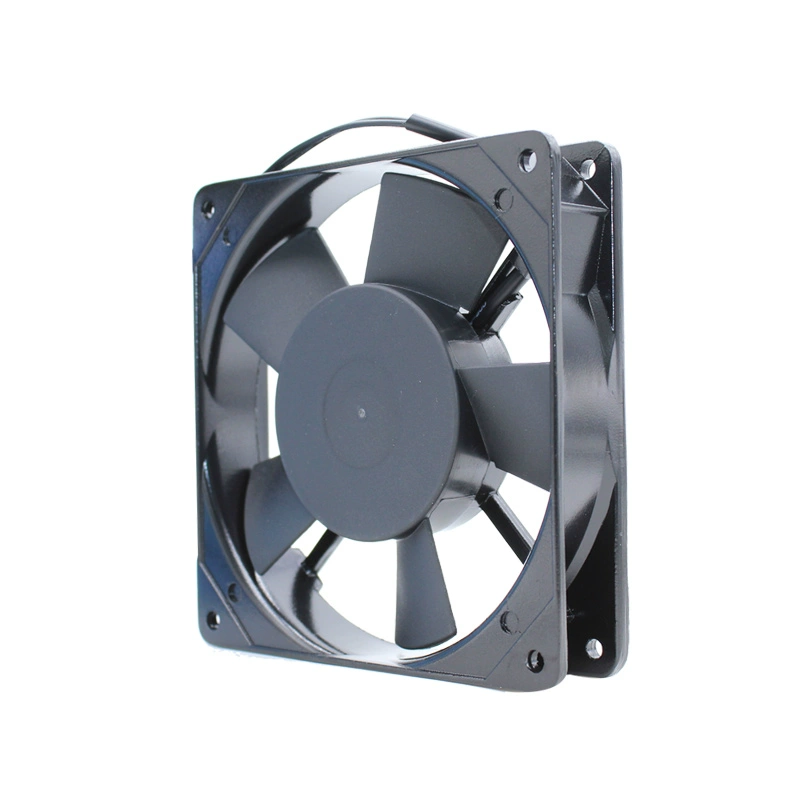

FP-108X-S1B Commonwealth AC axial cooling fan

Description

Model Number: FP-108X-S1B
Manufacturer: Commonwealth
Type: AC Axial Cooling Fan
Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 220V / 240V AC
Frequency: 50Hz / 60Hz
Rated Current: 0.12A / 0.11A
Rated Power: 18W / 16W
Speed: 2000 RPM / 2350 RPM
Airflow: 64 CFM / 80 CFM (1.8 m³/min / 2.3 m³/min)
Static Pressure: 0.20 inch-H2O / 0.23 inch-H2O
Noise Level: 42 dBA / 44 dBA
Connector: 2-Wire Leads (or quick slide terminals)
Bearing Type: Ball Bearing
Life Expectancy: Not explicitly stated for this exact model in common public listings
Operating Temperature: -20°C to 75°C
Frame Material: Die-cast Aluminum
Impeller Material: Plastic with fiberglass filled (UL 94V-0)
Features: Impedance Protected

The FP-108X-S1B is an AC axial cooling fan primarily associated with Commonwealth / ACROTORS, measuring 120mm x 120mm x 25mm. It operates on a 220V / 240V AC power supply at 50Hz / 60Hz, consuming 18W at 50Hz and 16W at 60Hz, with corresponding currents of 0.12A and 0.11A. This fan achieves speeds of 2000 RPM (50Hz) / 2350 RPM (60Hz), delivering an airflow of 64 CFM (50Hz) / 80 CFM (60Hz) and a static pressure of 0.20 inch-H2O (50Hz) / 0.23 inch-H2O (60Hz), while producing a noise level of 42 dBA (50Hz) / 44 dBA (60Hz). Equipped with ball bearings and connected via 2-wire leads, its robust die-cast aluminum frame and impedance protection make it a suitable choice for various industrial and electronic cooling applications requiring reliable AC operation.
