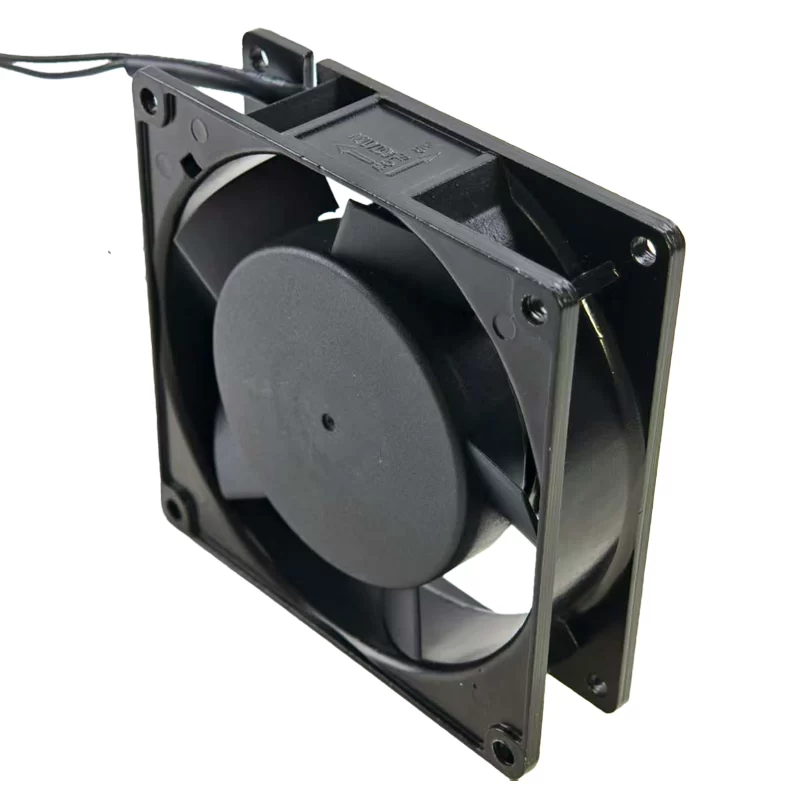

FSY9225HA2BL FONSONING 220-240V AC Axial Fan

Description

The FONSONING FSY9225HA2BL is a multi-frequency AC axial fan with dimensions of 92x92x25mm. It is designed for applications where different power line frequencies are used. Operating on 220-240V, the fan adjusts its performance based on the input frequency. At 50 Hz, it provides a balance of airflow (41 CFM) and quiet operation (35 dB(A)). At 60 Hz, it increases performance to 49 CFM with a slightly higher noise level of 38 dB(A). The fan connects via two wire leads.

FSY9225HA2BL Fan Parameters
Manufacturer: FONSONING
Model: FSY9225HA2BL
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240V
Rated Frequency: 50/60 Hz
Current Rating: 0.07 A
Airflow: 41/49 CFM (69.7/83.3 m³/h)
Static Pressure: 4.35/5.50 mmH₂O (42.7/53.9 Pa)
Speed: 2300/2850 RPM
Noise Level: 35/38 dB(A)
Termination: Two Wire Leads
Application: This FONSONING AC axial fan is suitable for general-purpose cooling in electronic enclosures, power supplies, and various machinery.
