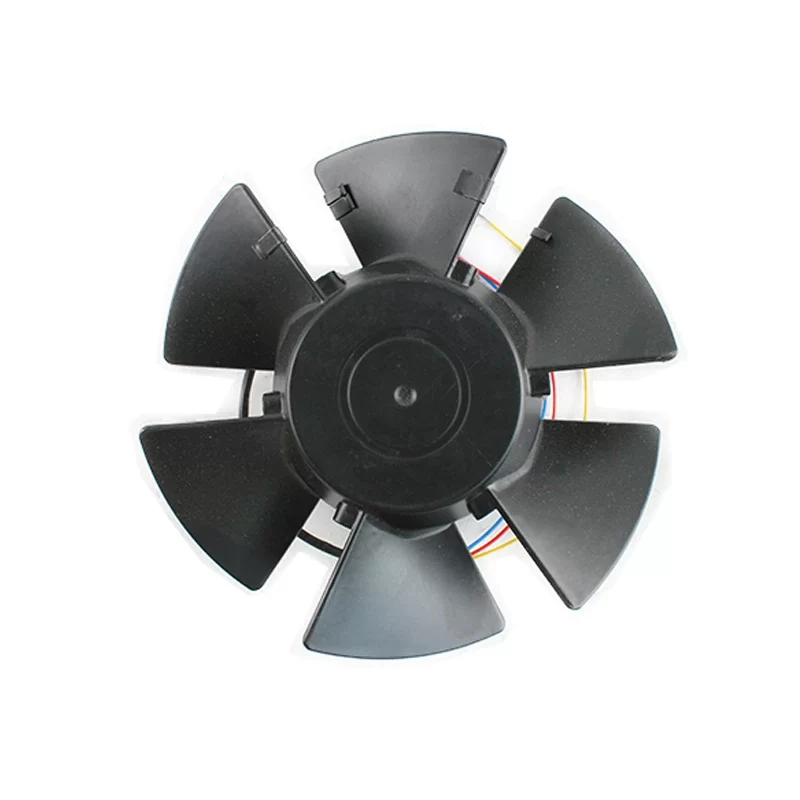

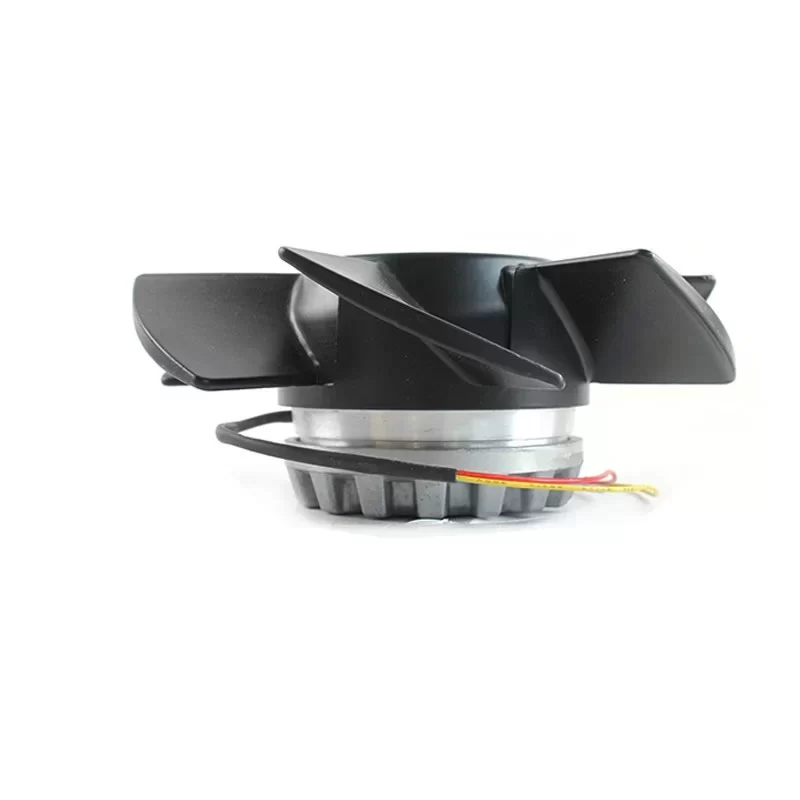

FZY150C04-D KAKU 380V 30W 148x54mm AC Axial Fan

Description

The KAKU FZY150C04-D is a high-performance 380 V industrial 3-phase AC axial fan with an impeller size of 150 mm and dimensions of 148 x 148 x 54 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty external rotor motor capable of sustaining a 30 W power input (at 50 Hz) or 27 W (at 60 Hz) to drive its specialized high-velocity impeller at speeds of 2700 RPM or 3100 RPM respectively. Engineered specifically for air displacement in compact industrial machinery and electrical control suites, it utilizes a 54 mm deep reinforced housing to provide balanced pressure and airflow for mission-critical hardware. The mechanical design relies on precision maintenance-free ball bearings and a black-painted rotor to ensure reliable continuous operation across an ambient temperature range of -30 °C to 70 °C. Featuring a robust 3-phase electrical interface with a 3-wire lead termination and an IP54 protection rating, this fan is a critical component for welding machines, frequency converters, and power distribution systems where long-term reliability and high aerodynamic efficiency are mandatory.

FZY150C04-D Fan Parameters
Manufacturer: KAKU
Model Number: FZY150C04-D
Series: FZY Series
Fan Size: 150 mm
Dimensions: 148 x 148 x 54 mm
Type: AC Axial Fan (3-Phase)
Bearing Type: Ball Bearing
Nominal Voltage: 380 VAC
Voltage Range: 340 – 420 VAC
Frequency: 50/60 Hz
Weight: 900 g

[Electrical Data]
Input Power: 30 W (50 Hz) / 27 W (60 Hz)
Nominal Current: 0.07 A (50 Hz) / 0.06 A (60 Hz)
Nominal Speed: 2700 RPM (50 Hz) / 3100 RPM (60 Hz)
Motor Design: AC External Rotor Motor (3-Phase)
Motor Protection: Thermal impedance protected
Insulation Class: Class B
Termination: 3-Lead wires

[Performance & Acoustics]
Max. Air Flow: 216.0 CFM (367.0 m³/h / 6.12 m³/min)
Max. Static Pressure: 7.87 mmH₂O (77.2 Pa / 0.31 inH₂O)
Sound Pressure Level: 62 dB(A) (50 Hz) / 65 dB(A) (60 Hz)
Number of Blades: 6
Direction of Rotation: Clockwise (Viewed toward rotor)
Airflow Direction: Exhaust over struts
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Housing Material: Sheet steel, painted black
Impeller Material: Sheet steel, painted black
Rotor Surface: Painted black
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -30 °C
Max. Ambient Temperature: 70 °C
Storage Temperature: -40 °C – 80 °C
Life Expectancy: 50,000 hours at 40 °C
Standard Compliance: CE, RoHS
Approval Agency: CCC, CE

Application
The KAKU FZY150C04-D axial fan is used in electric welding machines, ultrasonic cleaners, small frequency inverters, power distribution cabinets, and medical laboratory equipment.
