Description

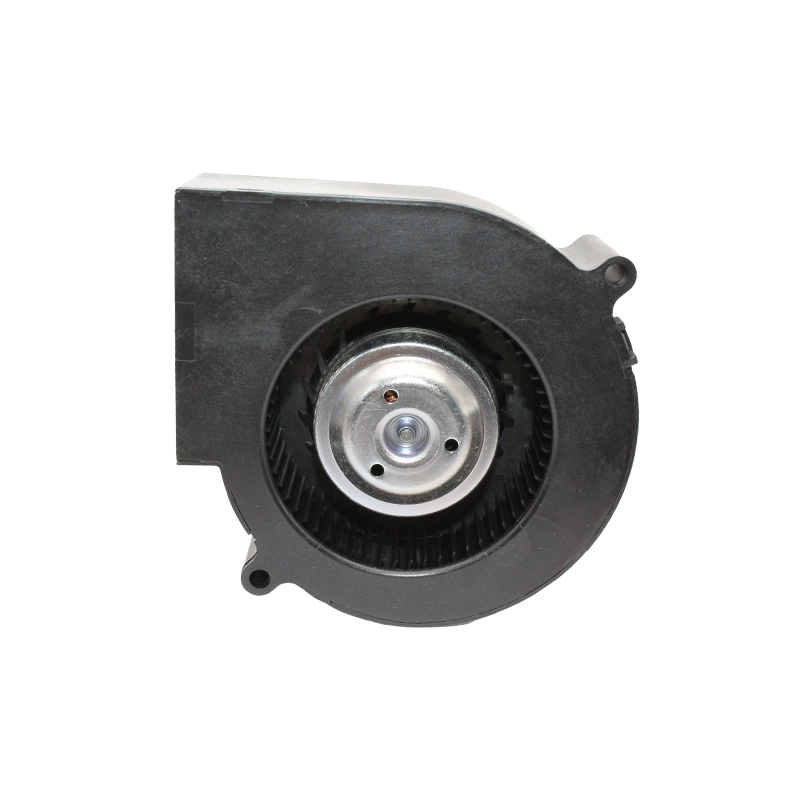

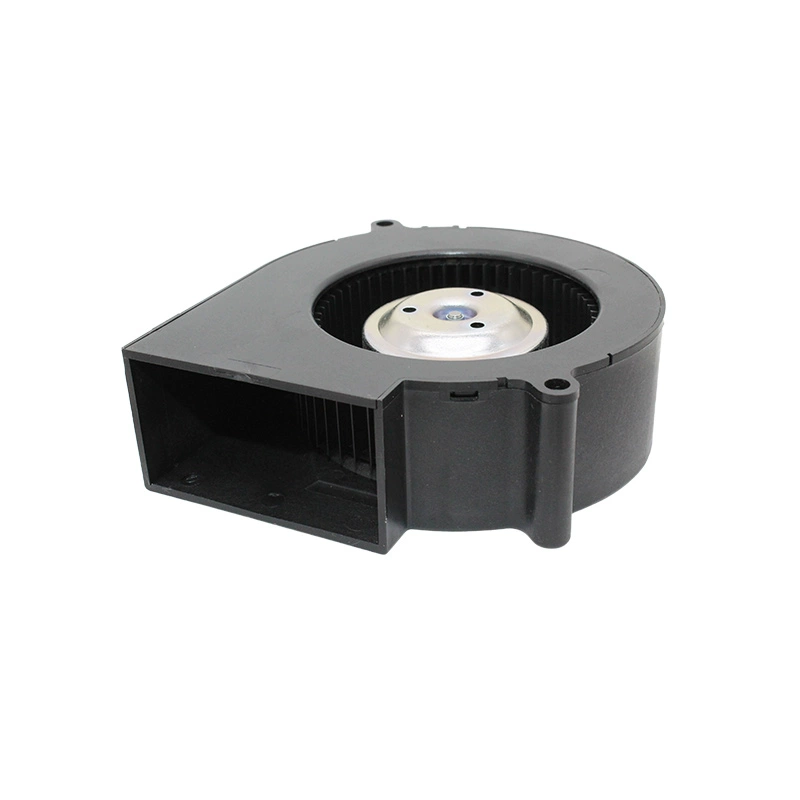

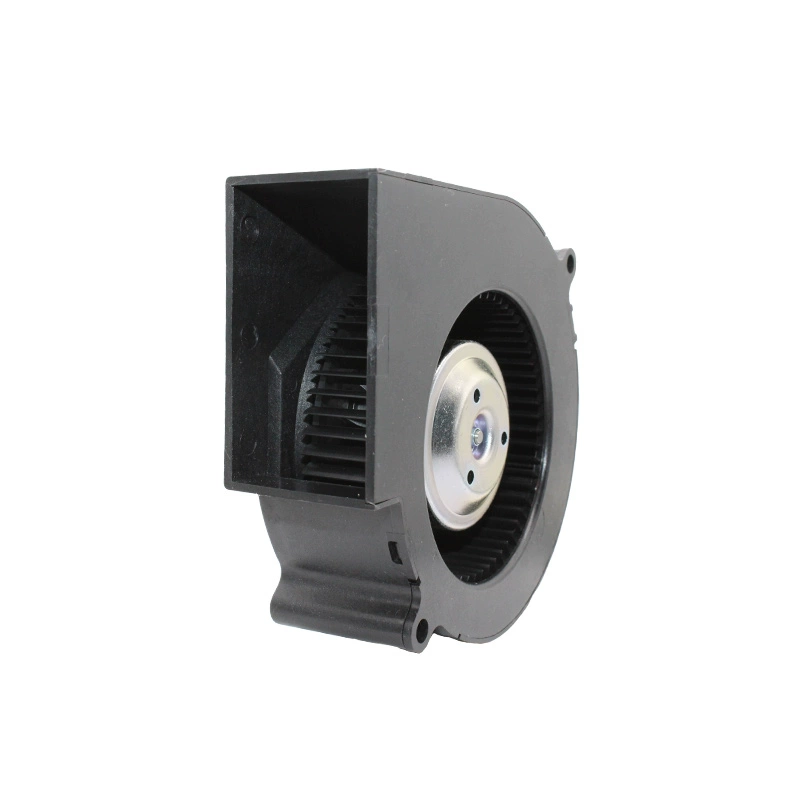

The Nidec G10D12BS10AZ-56Z99 is a high-performance 12V DC blower fan manufactured by Nidec Corporation, featuring dimensions of 97mm x 94mm x 33mm. Operating at a rated current of 0.79A (9.48W), this fan is engineered for applications requiring powerful, focused airflow and high static pressure, such as cooling server racks or specialized industrial equipment. It achieves a rotational speed of 4600 RPM, delivering 27.5 CFM of airflow and a substantial static pressure of 0.86 inch-H2O, making it highly effective at forcing air through dense components or restrictive pathways. Equipped with durable ball bearings, it ensures a long operational life of 50,000 hours at 40°C, while producing a noise level of 50.5 dBA. The fan utilizes 3-wire leads, providing a speed sensor for real-time monitoring of its operational status, along with auto-restart and polarity protection, making it a reliable choice for demanding thermal management solutions.
Model Number: G10D12BS10AZ-56Z99
Manufacturer: Nidec Corporation
Type: DC Blower Fan
Dimensions: 97mm x 94mm x 33mm
Rated Voltage: 12V DC
Rated Current: 0.79A
Rated Power: 9.48W
Speed: 4600 RPM
Airflow: 27.5 CFM / 0.78 m³/min
Static Pressure: 0.86 inch-H2O / 215 Pa
Noise Level: 50.5 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Speed Sensor, Auto Restart, Polarity Protection
