Description

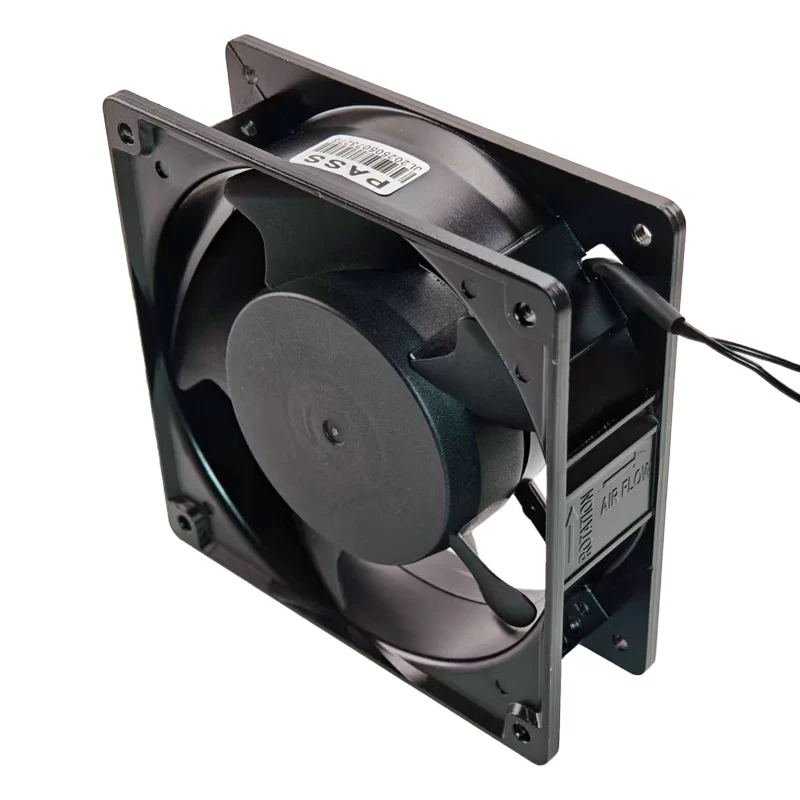

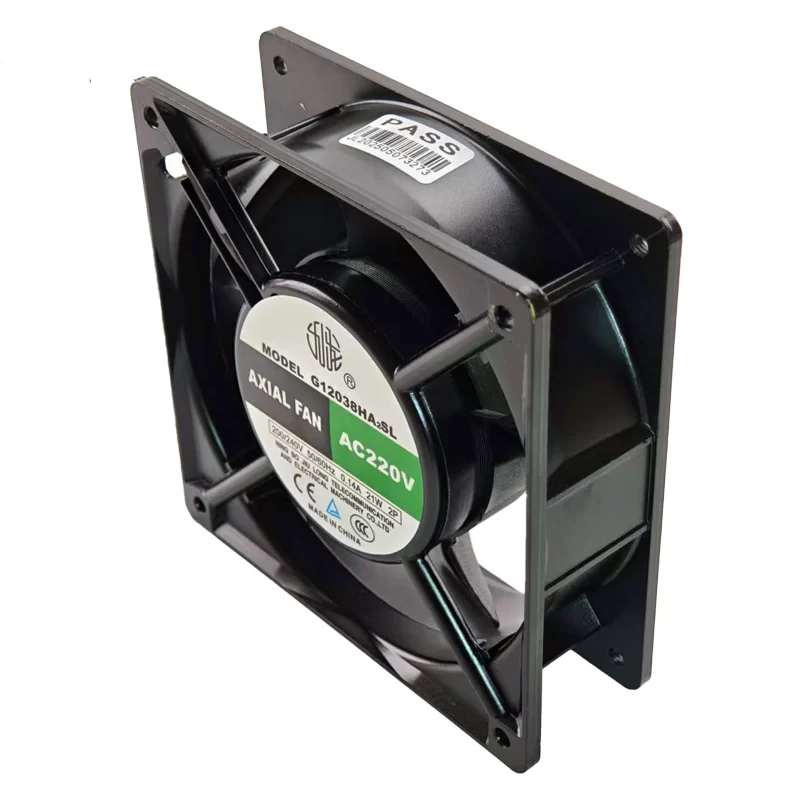

The Jiulong G12038HA2SL is a robust 120x120x38mm AC axial fan designed for effective cooling and ventilation in various electronic and industrial equipment. Operating on a 220V AC (50/60Hz) power supply, this fan precisely draws 0.14A of current, consuming 21W of power. It achieves a rotational speed of 2600 RPM, delivering an airflow of 84 CFM (2.37 m³/min) and generating a static pressure of 0.28 Inch-H2O. Utilizing oil bearings, this model offers reliable performance for applications requiring consistent air movement.
G12038HA2SL Fan Parameters
Model Number: G12038HA2SL
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.14A
Rated Power: 21W
Speed: 2600 RPM
Airflow: 84 CFM (2.37 m³/min)
Static Pressure: 0.28 Inch-H2O
Noise Level: 45 dB(A)
Bearing Type: Oil Bearing
Frame Material: Aluminum Alloy
Blade Material: Plastic
Wiring: 2-Wire Leads
Weight: 520 g
Operating Temperature: -10°C to +65°C
Application: General electronics cooling, industrial equipment, welding machines, control cabinets.
