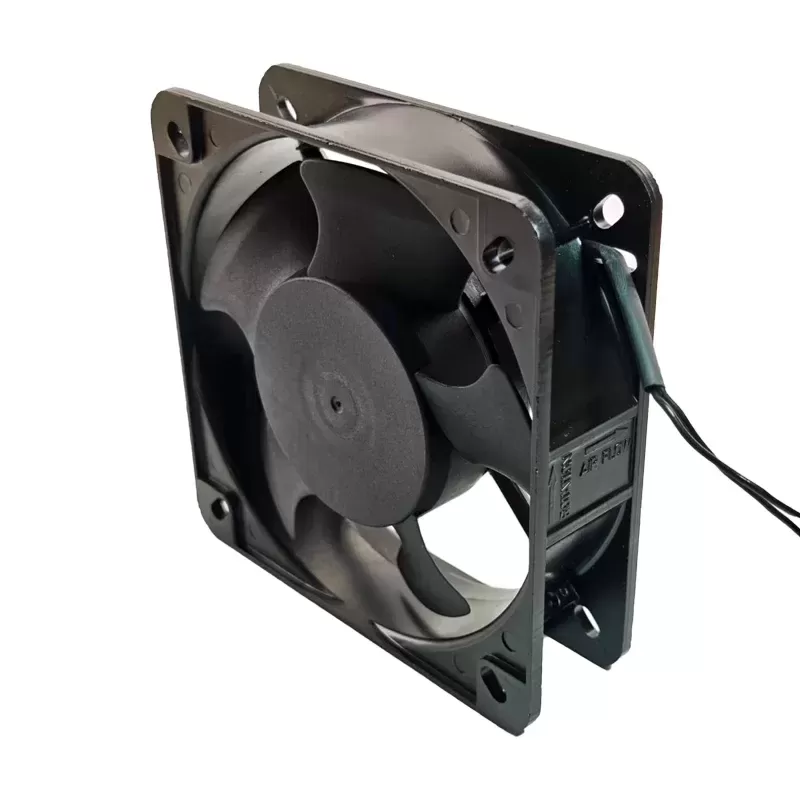

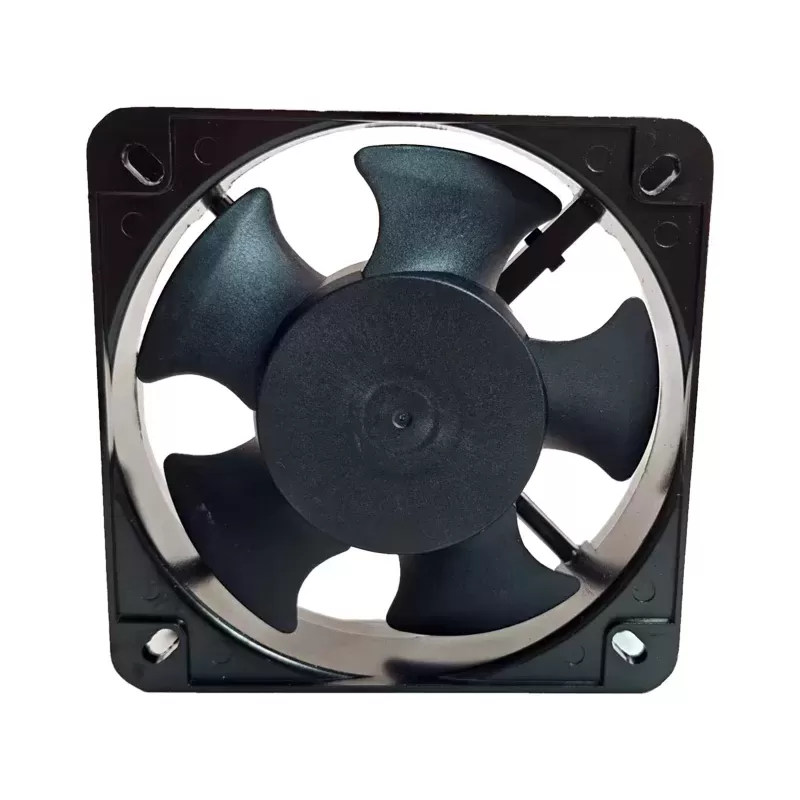

G13538HA2BL Jiulong 220V 0.17A 25W AC axial fan

Description

The Jiulong G13538HA2BL is an AC axial fan measuring 135mm x 135mm x 38mm. It operates on 220 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.17A of current and consuming 25W of power. This fan has a speed ranging from 2600 to 3000 RPM and provides an airflow of 160 to 180 CFM, with a noise level between 48 and 52 dB(A). It is equipped with ball bearings for durable operation and typically features 2-wire leads for termination. Constructed with an aluminum frame and a plastic impeller, it weighs approximately 0.8 kg. This fan is designed for reliable heat dissipation and is used in various industrial and electronic cooling applications.

G13538HA2BL Fan Parameters
Model: G13538HA2BL
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 135 x 135 x 38 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.17 A
Power Consumption: 25 W
Speed: 2600 – 3000 RPM
Airflow: 160 – 180 CFM
Noise Level: 48 – 52 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Weight: 0.8 kg
Frame Material: Aluminum
Impeller Material: Plastic
Application: Industrial cooling, electronic equipment cooling, ventilation systems.
