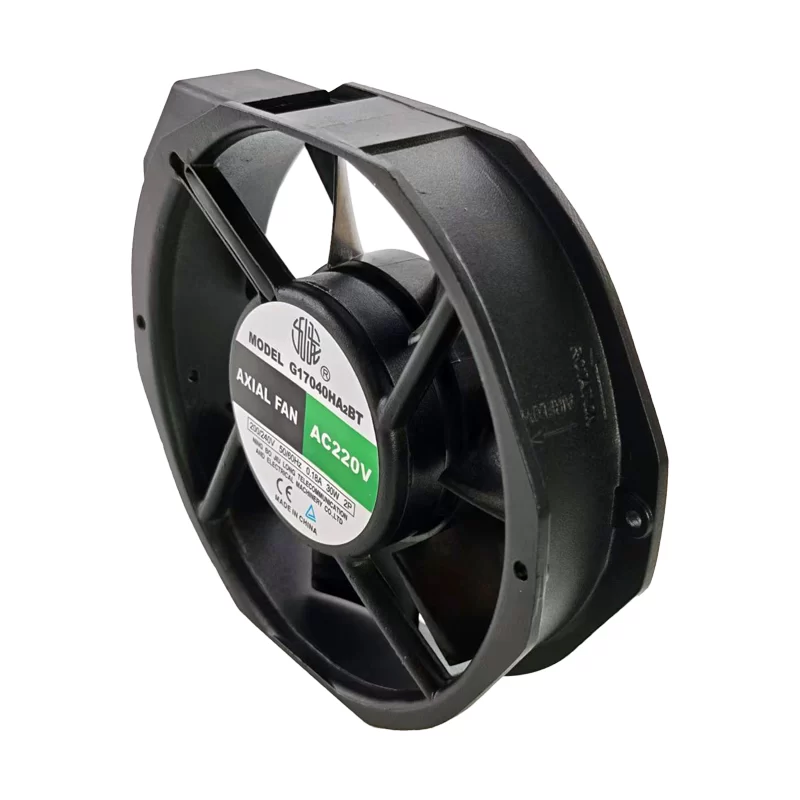

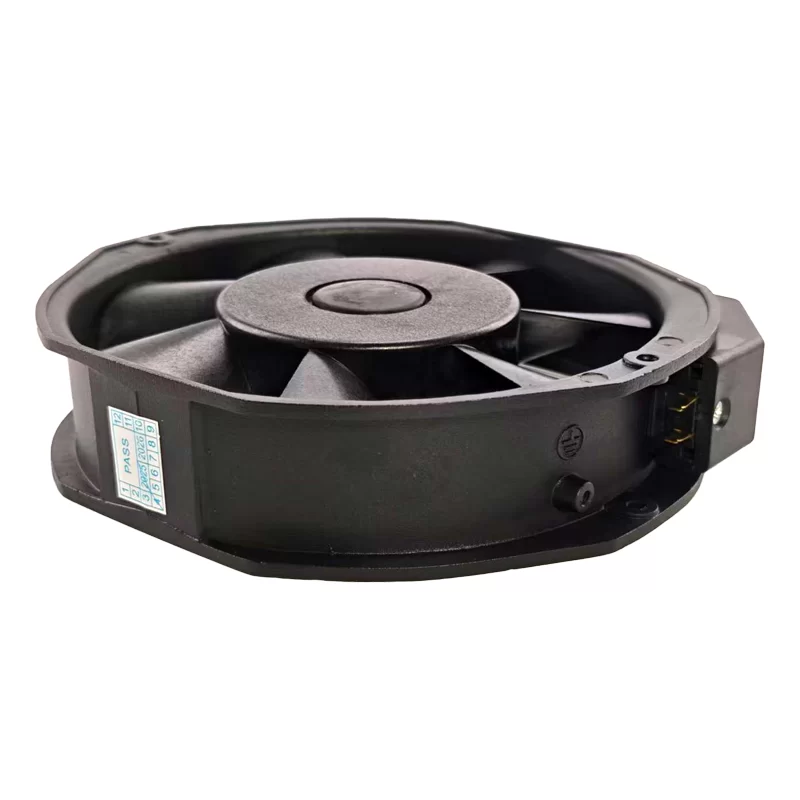

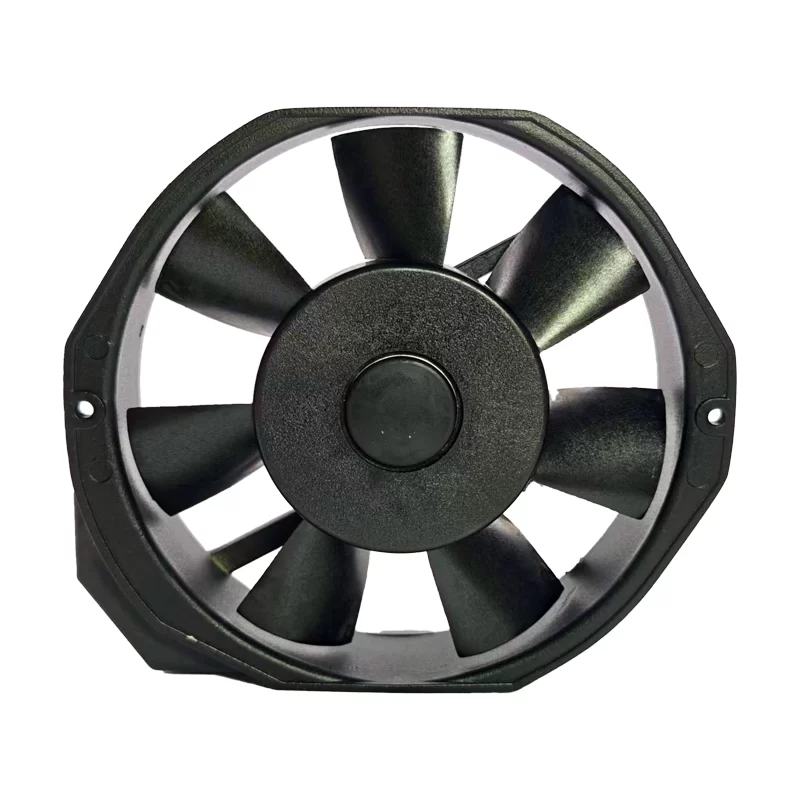

G17040HA2BT Jiulong AC220V axial fan

Description

The Jiulong G17040HA2BT is a compact 172x150x38mm AC axial fan designed for effective cooling in demanding environments such as electrical cabinets, control panels, and industrial equipment. Operating on a 200-240V AC (single-phase) power supply at both 50Hz and 60Hz, this fan precisely draws 0.18A of current, consuming 30W of power. Utilizing durable ball bearings and featuring terminals for connection, this model is constructed with an aluminum frame and thermoplastic impeller, ensuring reliable cooling performance.

G17040HA2BT Fan Parameters
Model Number: G17040HA2BT
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 172mm x 150mm x 38mm
Rated Voltage: 200-240 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 0.18A
Rated Power: 30 W
Bearing Type: Ball Bearing
Frame Material: Aluminum
Impeller Material: Thermoplastic PBT
Connection: Terminals
Operating Temperature: -20°C to +80°C
Application: Electrical cabinets, control panels, power supplies, industrial machinery, inverters, general ventilation.
