Description

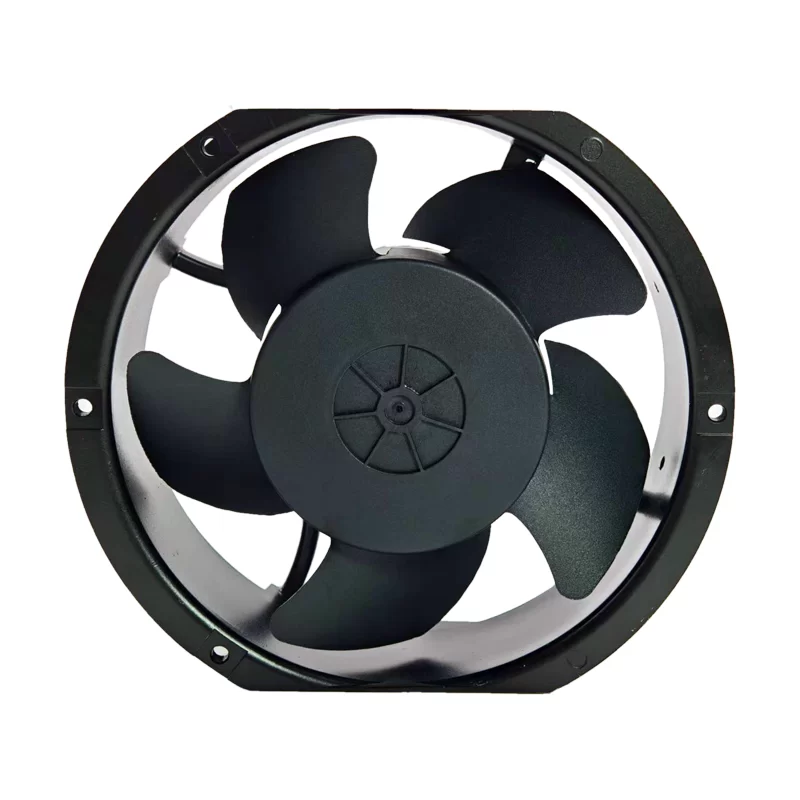

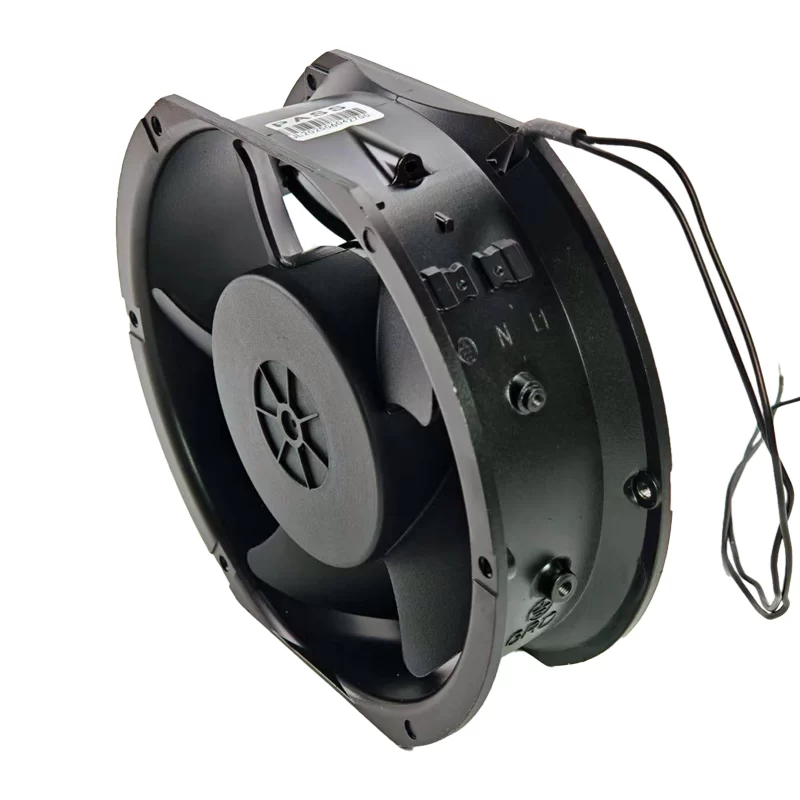

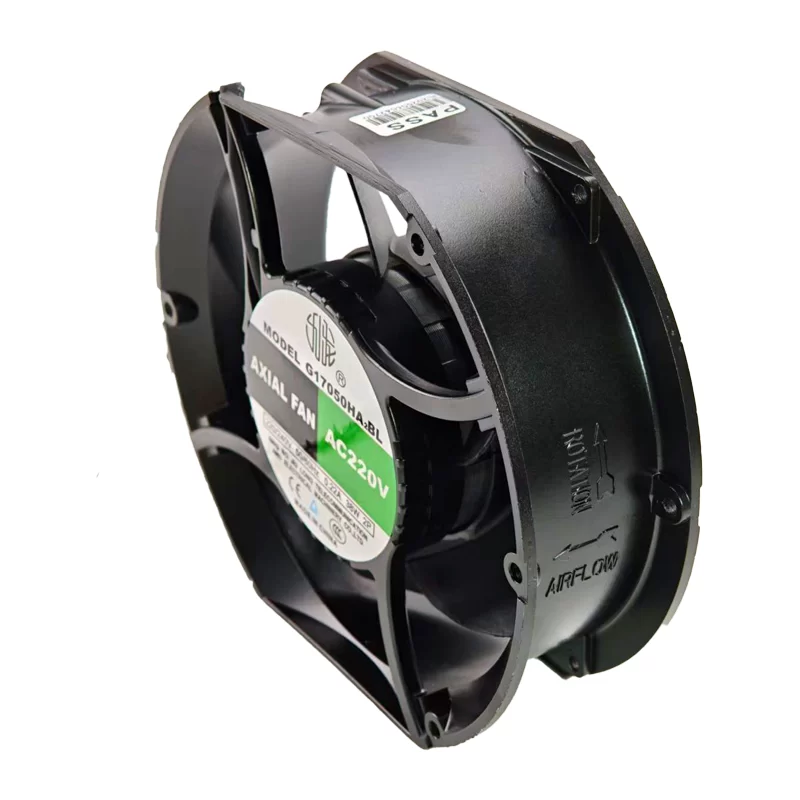

The Jiulong G17050HA2BL is a versatile 220/240VAC Axial Fan with dimensions of 172x150x51mm, designed for various air movement applications. This fan draws 0.22A of current and consumes 38W of power. It offers dual performance characteristics: at one operating point it achieves a speed of 2600RPM, delivering 299.04m³/h (176CFM) of airflow with a noise level of 54dB(A); at another operating point, its performance increases to 2900RPM, providing 336.42m³/h (198CFM) of airflow with a noise level of 59dB(A). Weighing 860g, this fan is suitable for general cooling and ventilation systems.
G17050HA2BL Fan Parameters
Model: G17050HA2BL
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 172 x 150 x 51 mm
Nominal Voltage: 220/240 V AC
Rated Current: 0.22 A
Power Consumption: 38 W
Speed: 2600 RPM / 2900 RPM
Airflow: 299.04 m³/h (176 CFM) / 336.42 m³/h (198 CFM)
Noise Level: 54 dB(A) / 59 dB(A)
Weight: 860 g
Application: General cooling and ventilation systems.
