Description

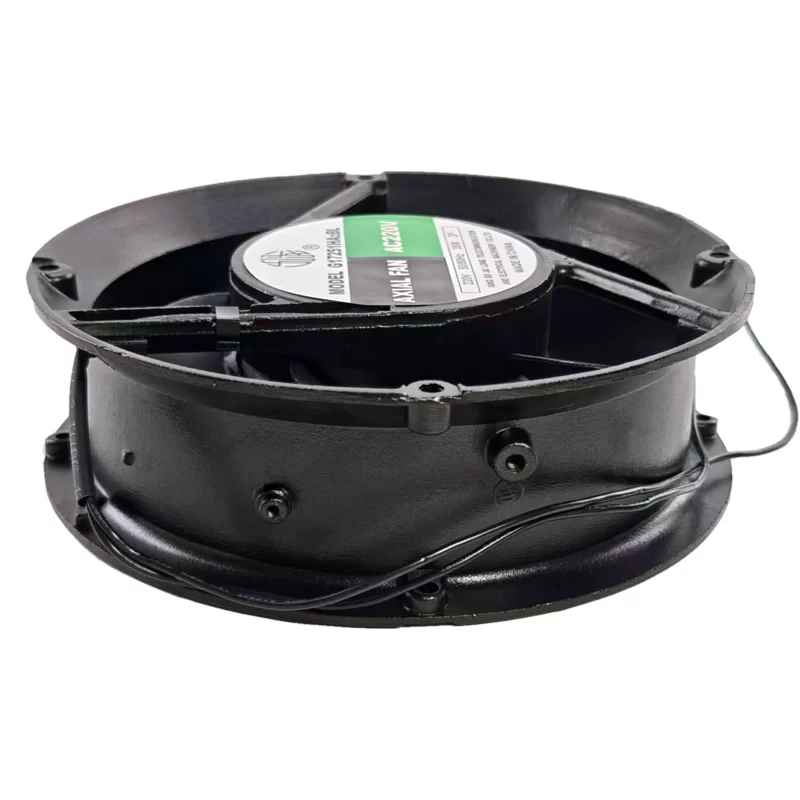

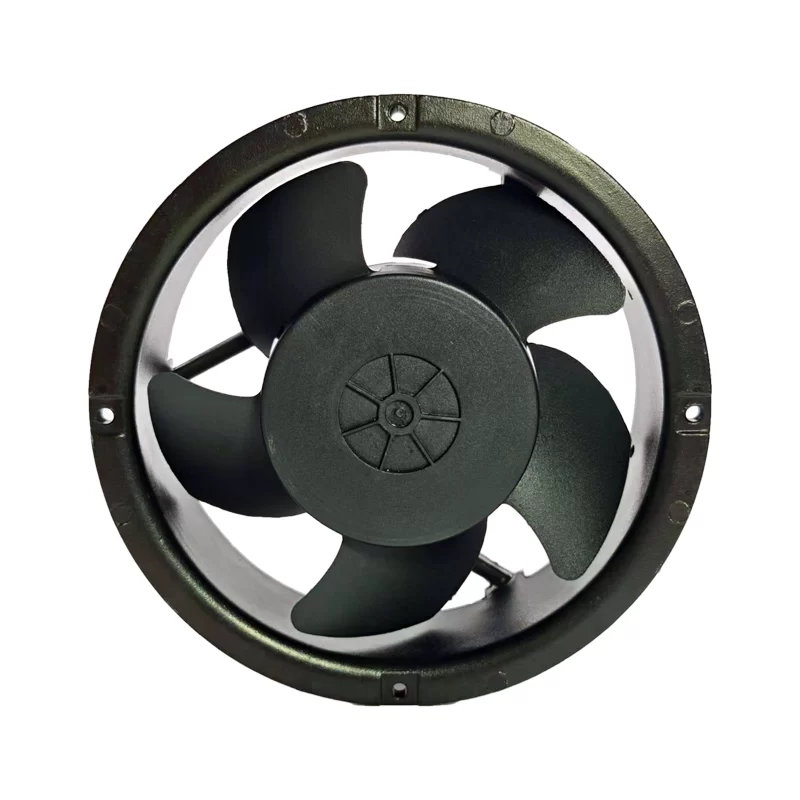

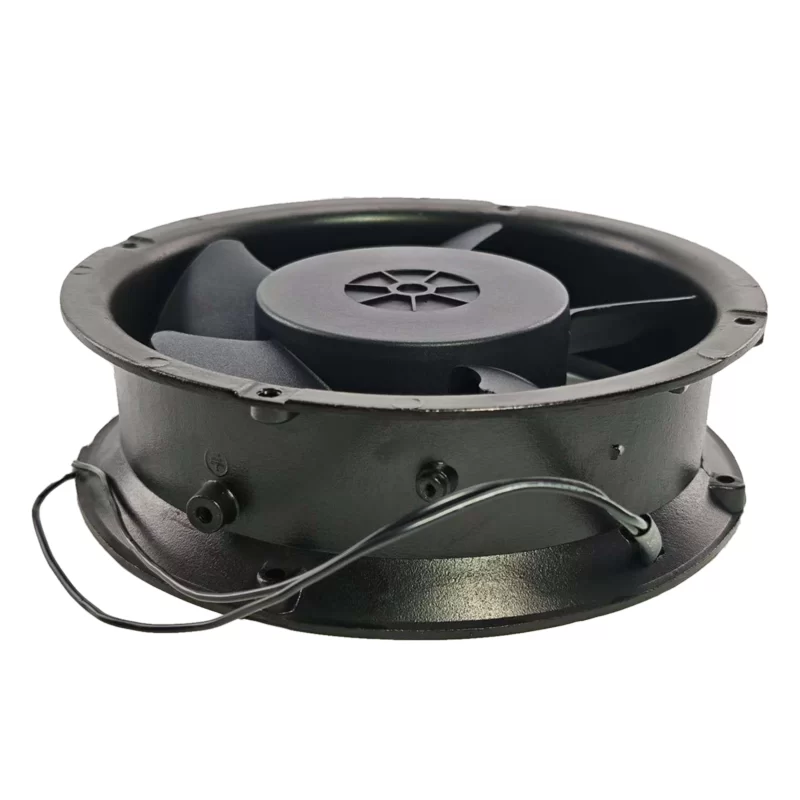

The Jiulong G17251HA2BL is an AC axial fan measuring 172x150x51mm. It operates on 220 VAC at 50/60 Hz frequencies, drawing 0.22 A of current. Power consumption is 38 W. This fan achieves a speed of 2800 RPM, providing an airflow of 190 CFM with a static pressure of 0.63 in H2O. The noise level is 50 dB(A). It weighs 0.84 kg. It is equipped with ball bearings for durable operation and features a metal frame and plastic impeller. It is suitable for general purpose cooling and ventilation in various industrial and electronic equipment.
G17251HA2BL Fan Parameters
Model: G17251HA2BL
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 172x150x51 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.22 A
Power Consumption: 38 W
Speed: 2800 RPM
Airflow: 190 CFM
Static Pressure: 0.63 in H2O
Noise Level: 50 dB(A)
Bearing Type: Ball Bearing
Weight: 0.84 kg
Frame Material: Metal
Impeller Material: Plastic
Application: Industrial equipment cooling, electronic equipment ventilation, general purpose
