Description

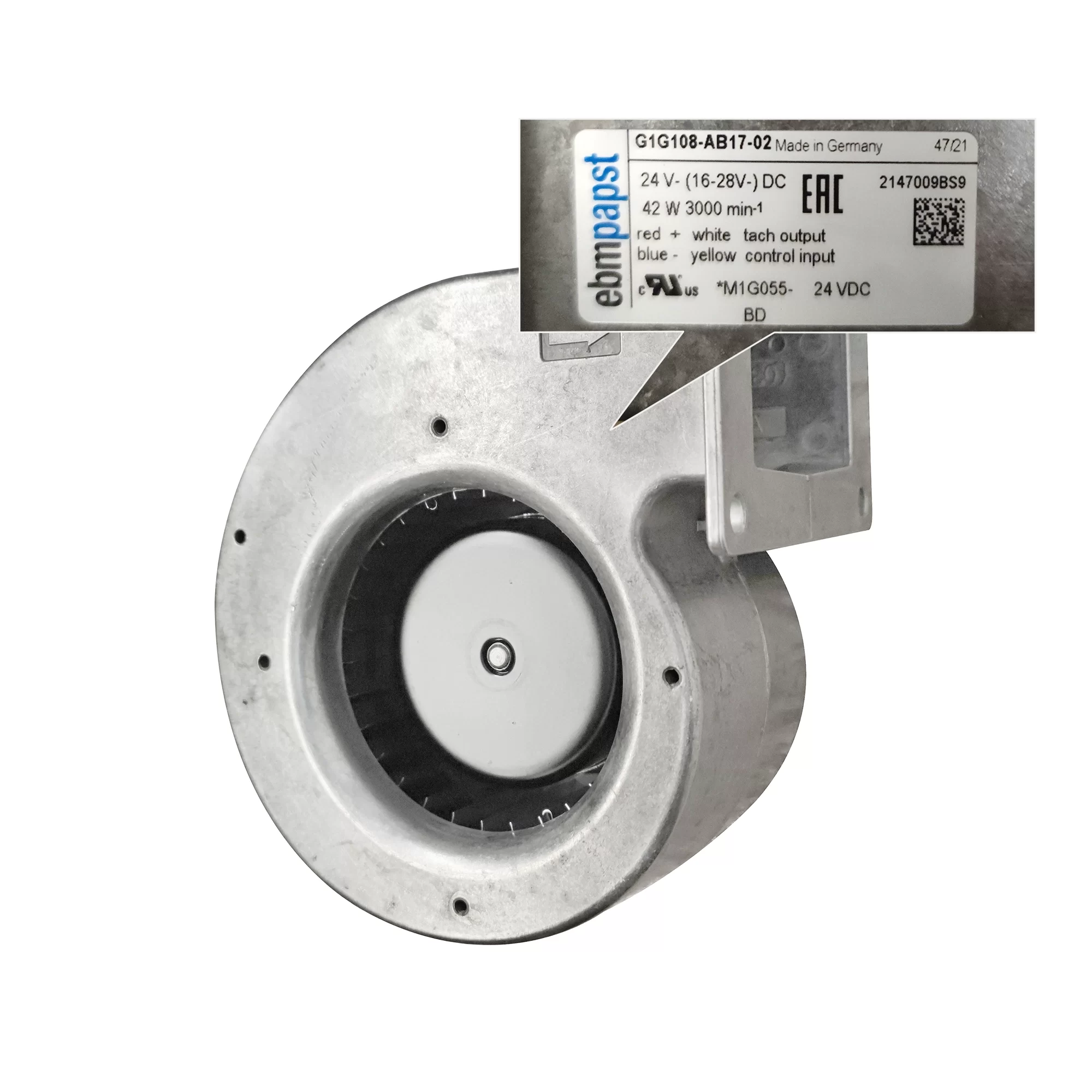

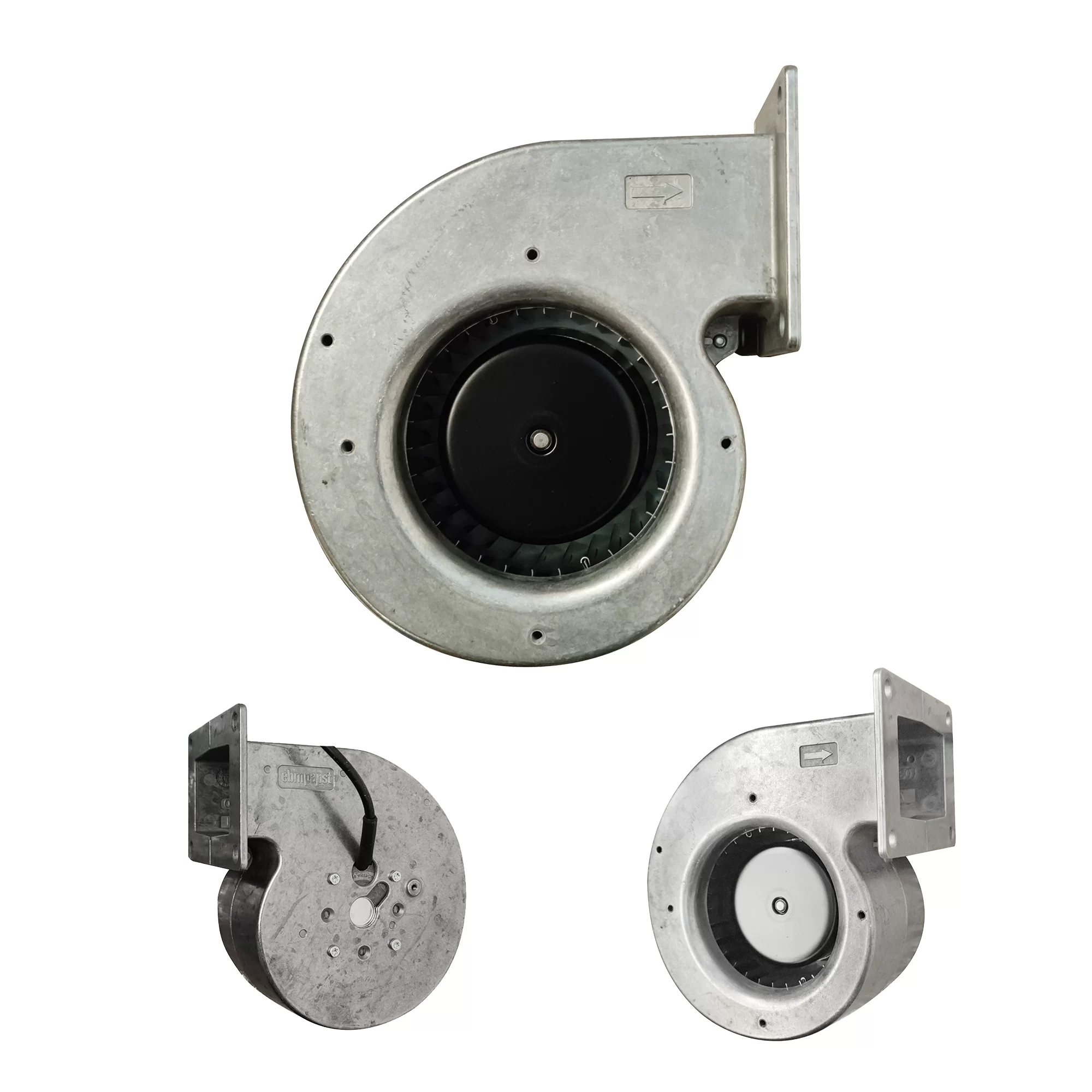

The ebmpapst G1G108-AB17-02 is a high-quality EC Centrifugal Blower measuring 183x159x115mm. It operates on 24 VDC, with a power consumption of 42 W and a current draw of 2.0 A. This blower achieves a speed of 3000 RPM and provides an airflow of 225 m³/h (equivalent to 130 CFM). Its noise level is 65 dB(A).
It features a durable ball bearing system for smooth and quiet operation and has an IP22 ingress protection rating. The impeller is made of hot-galvanized sheet steel, and the housing is constructed from die-cast aluminum. This fan is designed with an electronically commutated motor with integrated commutation electronics, offering features like tach output, motor current limitation, soft start, and control input options (0-10 VDC / PWM). It also includes reverse polarity and locked-rotor protection. It is suitable for a wide range of electronic devices and industrial equipment requiring efficient and reliable cooling, commonly found in HVAC systems, electronic cooling, and various air handling units.
G1G108-AB17-02 Fan Parameters
Model: G1G108-AB17-02
Manufacturer: ebmpapst
Type: EC Centrifugal Blower
Dimensions: 183 x 159 x 115 mm
Supply Voltage: 24 VDC
Operating Voltage Range: 16 to 28 VDC
Power Consumption: 42 W
Rated Current: 2.0 A
Airflow: 225 m³/h (130 CFM)
Speed: 3000 RPM
Noise Level: 65 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads with Splice Terminals
Impeller Material: Sheet steel, hot-galvanised
Housing Material: Die-cast aluminum
Rotor Surface: Painted black
Insulation Class: B
Protection Level: IP22
Operating Temperature: -25 to 60°C
Storage Temperature: -40 to 80°C
Weight: 1.4 kg
Motor Type: M1G055-BD, Electronically commutated external rotor motor
Motor Protection: Reverse polarity and locked-rotor protection
Direction of Rotation: Clockwise, viewed toward rotor
Technical Features: Tach output, Motor current limitation, Soft start, Control input 0-10 VDC / PWM
EMC Immunity to Interference: According to EN 61000-6-2 (industrial environment)
EMC Interference Emission: According to EN 61000-6-3 (household environment)
Application: HVAC systems, electronic cooling, industrial equipment, air handling units.
