G1G126-AA49-70 ebmpapst 230V EC Centrifugal Fan

Description

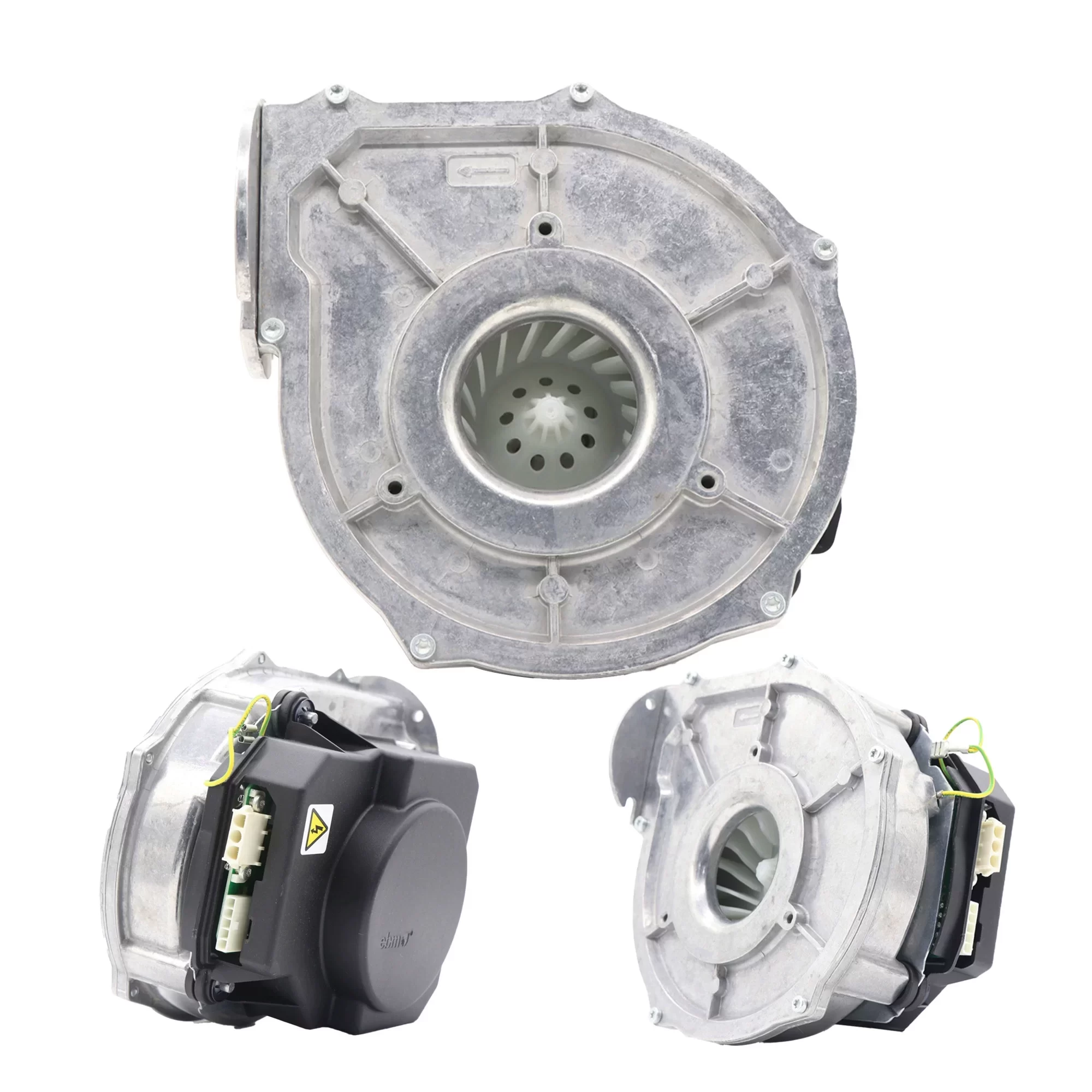

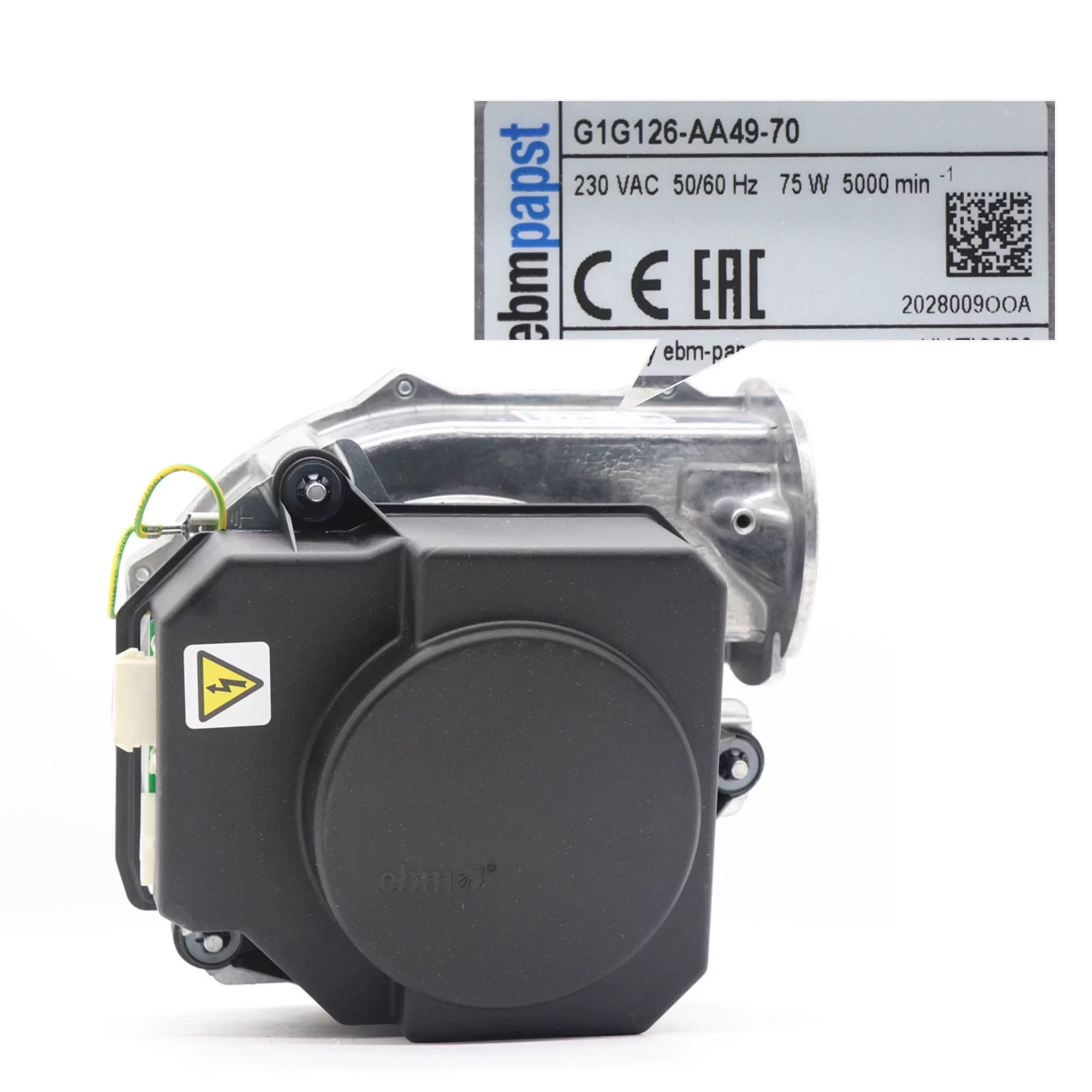

The ebmpapst G1G126-AA49-70 is a high-performance 230VAC EC Centrifugal Fan with a size of 126mm, driven by the M1G055-BD motor. This fan operates on 230VAC at a frequency of 50/60Hz, drawing 0.5A of current and consuming 75W of power. It achieves a high speed of 5000RPM. The impeller is made of PA plastic, the cover material is PP plastic, and the electronic housing is made of die-cast aluminum. It features a thick-film passivated rotor surface and a ball bearing motor. The fan has an IP20 degree of protection and Insulation class “B”. It is designed for operation in a dry environment (H0) and can be installed in any position. Motor protection includes reverse polarity and locked-rotor protection. Electrical hookup is via a plug, and it meets Protection class I (with customer connection of protective earth). The fan has a weight of 1.5kg and operates within a wide ambient temperature range of -25°C to 70°C. It conforms to CE standards and is EAC approved. This fan is suitable for applications requiring high-performance air movement in systems where space and energy efficiency are critical.

G1G126-AA49-70 Fan Parameters
Model: G1G126-AA49-70
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Motor: M1G055-BD
Nominal Voltage: 230 V AC
Frequency: 50/60 Hz
Speed: 5000 RPM
Power Consumption: 75 W
Current Draw: 0.5 A
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 70 °C
Weight: 1.5 kg
Size: 126 mm
Motor Size: 55
Rotor Surface: Thick-film passivated
Cover Material: PP plastic
Impeller Material: PA plastic
Housing Material: Die-cast aluminum (electronic housing)
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP20
Insulation Class: “B”
Moisture / Environmental Protection Class: H0 – dry environment
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Premixing: Not suitable for premixing
Motor Bearing: Ball bearing
Touch Current: <= 3.5 mA (according to IEC 60990)
Electrical Hookup: Plug
Motor Protection: Reverse polarity and locked-rotor protection
Protection Class: I (with customer connection of protective earth)
Conformity with Standards: CE
Approval: EAC
Application: Systems requiring high-performance and energy-efficient air movement.
