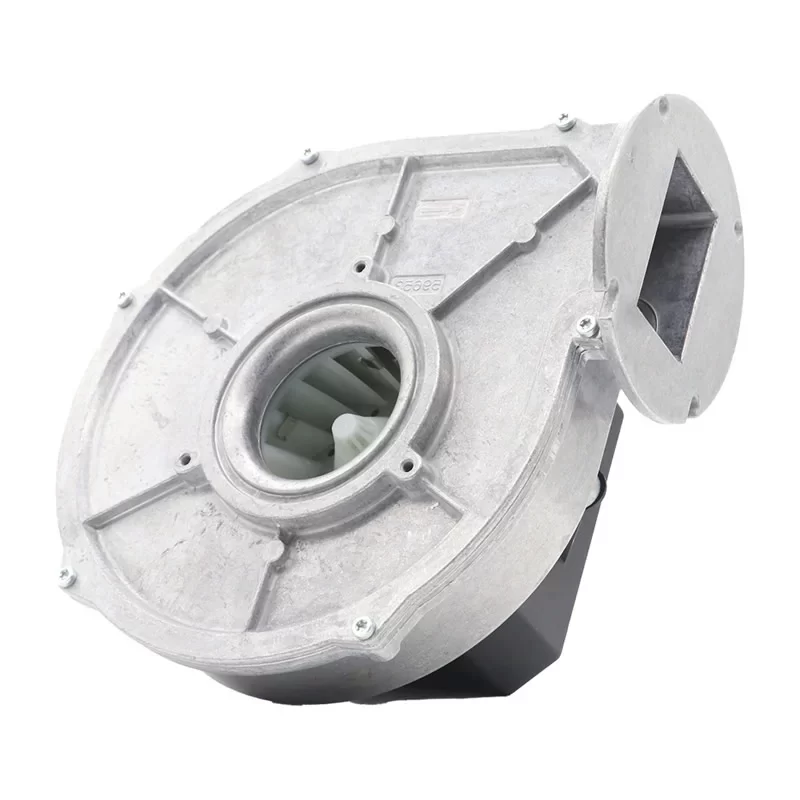

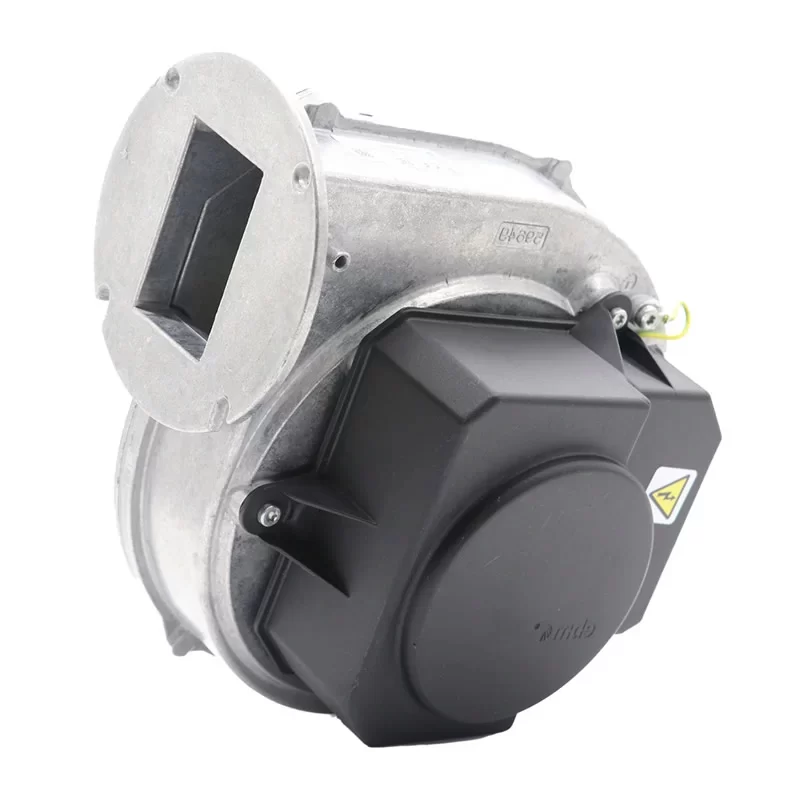

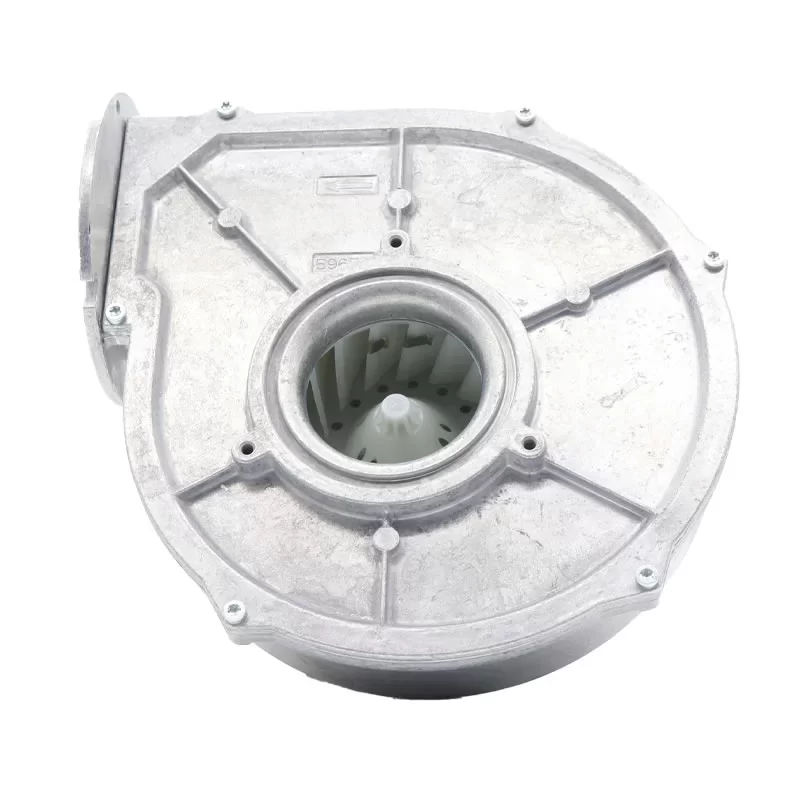

G1G144-AF49-01 ebmpapst 230V EC Centrifugal Fan 144mm

Description

The ebmpapst G1G144-AF49-01 is a high-power EC Centrifugal Fan with dimensions measuring Φ 144 x 65 mm. It operates on a nominal voltage of 230 V, 50/60 Hz. The fan achieves a high speed of 4800 RPM, consuming 75 W of power and drawing a maximum current of 0.5 A. It delivers a substantial maximum air flow of 748.8 m³/h and a very high maximum static pressure of 1251.4 Pa (5.02 inAq). This fan features high-efficiency Electronically Commutated (EC) motor technology and a durable Ball Bearing system, making it ideal for continuous, high-pressure industrial ventilation and HVAC applications.

G1G144-AF49-01 Fan Parameters
Model: G1G144-AF49-01
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (Single Inlet)
Dimensions (measuring): Φ 144 x 65 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Speed: 4800 RPM
Power Consumption: 75 W
Current Draw: 0.5 A
Max. Airflow: 748.8 m³/h
Max. Static Pressure: 1251.4 Pa (5.02 inAq)
Noise Level: 78 dB(A)
Weight: 1.72 kg
Housing Material: Plastic (PA)
Impeller Material: Plastic (PA)
Bearing Type: Ball Bearing
Motor Design: Electronically Commutated (EC) Motor
Motor Protection: Integrated Locked-Rotor Protection, Reverse Polarity Protection
Termination: 2 Wire Leads / Terminals
Monitor Output: No
Service Life L10 at 50 °C: 20000 h
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 80 °C
Approvals: UL, CSA, CE, VDE, EAC
IP Rating: IP20

Application
The ebmpapst G1G144-AF49-01 EC centrifugal fan is optimized for high energy efficiency and powerful air movement in industrial and commercial HVAC systems. Primary applications include compact air handling units, heat recovery systems, specialized cabinet cooling, and industrial ventilation systems requiring high static pressure capability and operation from a standard 230V AC supply.
