Description

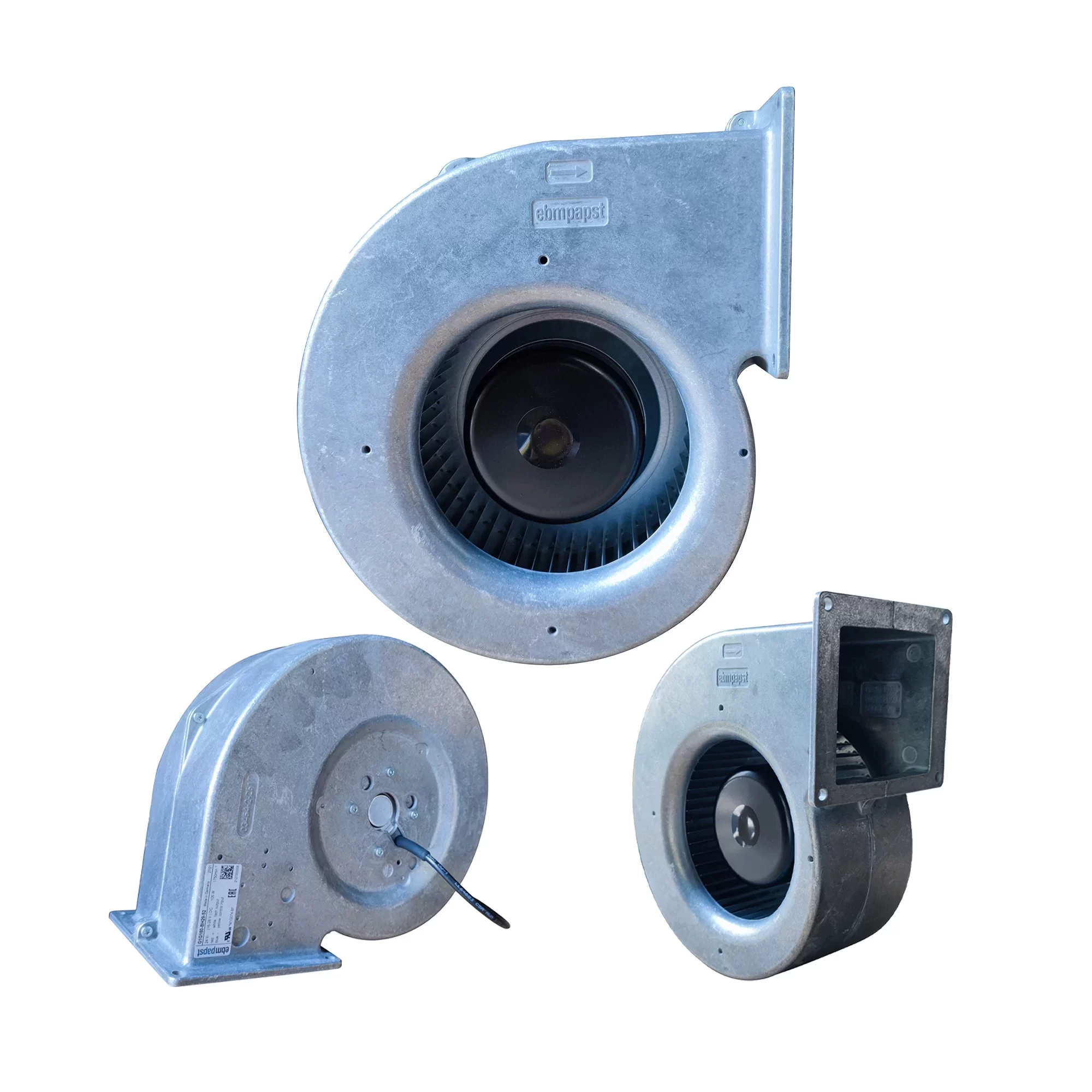

The ebmpapst G1G160-BH29-52 is a high-performance EC centrifugal fan, featuring the M1G074-BF motor and measuring 226.8x262x130mm. Operating at 24VDC within a 16-28VDC range, it draws 5.8A of current and consumes 105W of power. This fan delivers an airflow of 505m³/h (297CFM) and operates at a speed of 1750RPM, with a noise level of 67dB(A). Equipped with durable ball bearings and a galvanized steel impeller, it boasts an IP42 ingress protection rating. It features integrated PWM control for speed adjustment and a tachometer output for speed monitoring. The fan is suitable for reliable operation within an ambient temperature range of -25 to 60°C and has a typical service life of 40,000hours at 40°C. Its housing is made of die-cast aluminum.
G1G160-BH29-52 Fan Parameters
Manufacturer: ebmpapst
Model: G1G160-BH29-52
Motor: M1G074-BF
Fan Type: EC Centrifugal Fan
Dimensions: 226.8 x 262 x 130 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 28 VDC
Current Rating: 5.8 A
Power Consumption: 105 W
Airflow: 505 m³/h (297 CFM)
Static Pressure: Not specified (but high for blowers)
Speed: 1750 RPM
Noise Level: 67 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads (with crimped splices)
Fan Features: Analog/PWM Speed Control, Tachometer Output, Motor Current Limitation, Soft Start
Operating Temperature: -25 ~ 60°C
Lifetime @ Temp: 40,000 Hours (at 40°C)
Housing Material: Die-cast aluminum
Blade Material: Galvanized steel
IP Rating: IP42
Weight: 2.82 kg
Approval Agency: CSA, EAC, UL
Application: This ebmpapst EC centrifugal fan is suitable for various applications requiring high pressure and precise airflow control, such as gas boilers, heating systems, and industrial equipment.
