Description

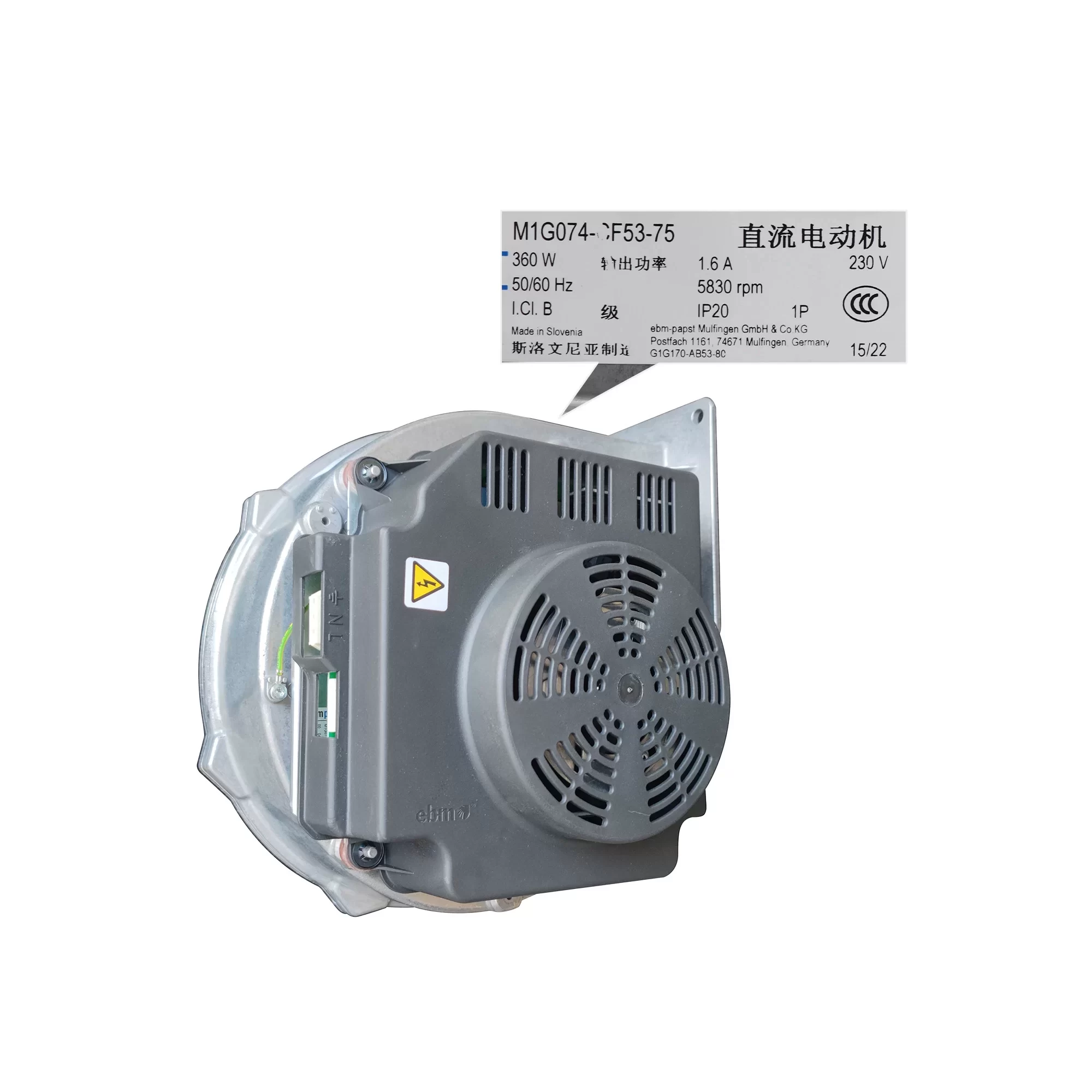

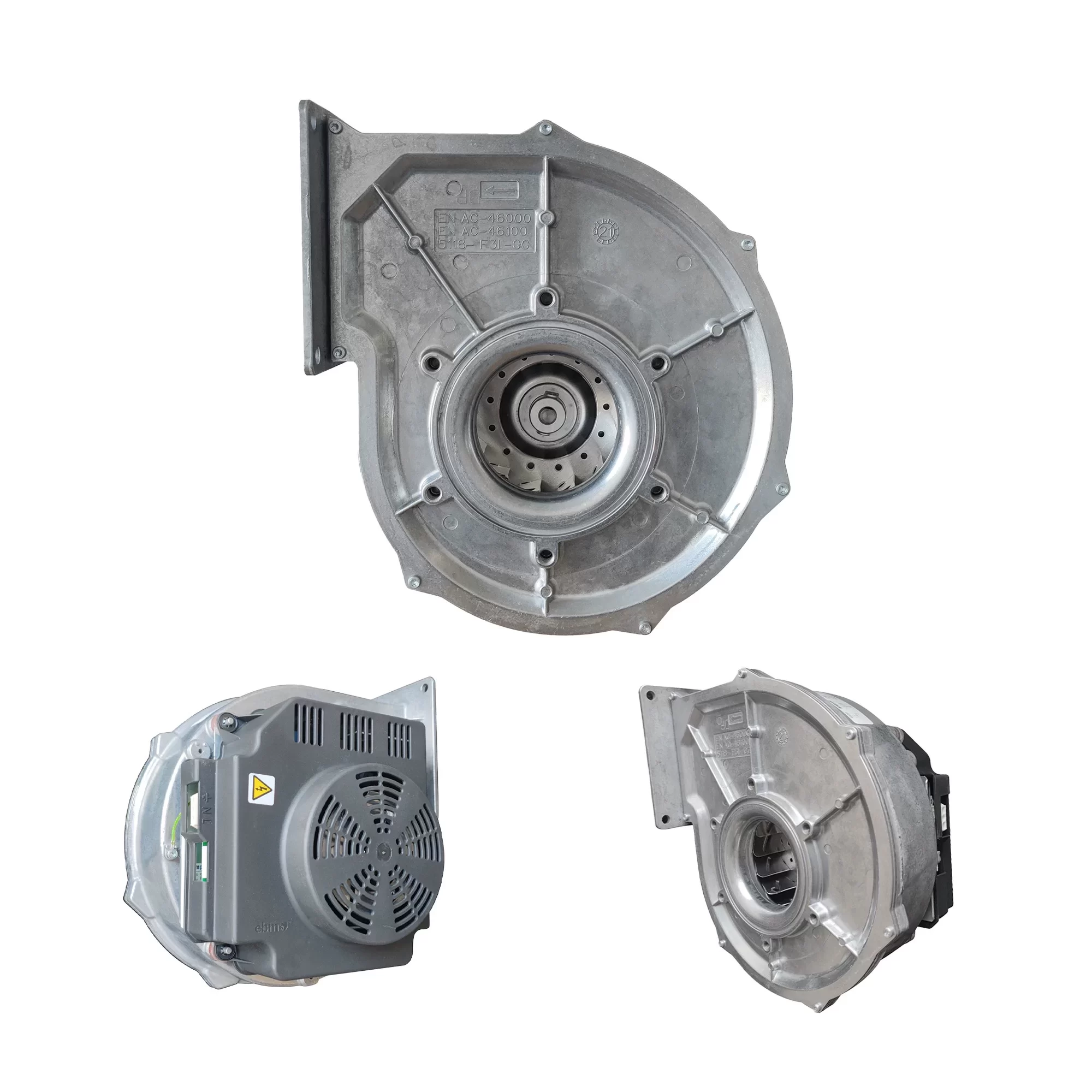

The ebmpapst G1G170-AB53-80 is a high-performance 230VAC EC centrifugal fan featuring a 170mm impeller. It is powered by an M1G074-CF EC motor, allowing it to operate on both 50Hz and 60Hz frequencies with a constant speed of 5830RPM. The fan consumes 360W of power, draws 1.6A of current, and provides a powerful airflow of 645.6m³/h (380CFM). This blower is built with durable ball bearings, features a sturdy die-cast aluminum housing and an aluminum sheet impeller, and has an IP20 protection rating. It is suitable for ambient temperatures from -25 to 55°C. It is commonly used as a gas blower in gas-condensing heating systems and for industrial cooling applications in equipment such as CNC machines.
G1G170-AB53-80 Fan Parameters
Manufacturer: ebmpapst
Model: G1G170-AB53-80
Fan Type: EC Centrifugal Fan (Blower)
Motor: M1G074-CF
Dimensions: Ø170 mm (impeller diameter)
Rated Voltage: 230 VAC
Operating Frequency: 50 Hz / 60 Hz
Power Consumption: 360 W
Current Rating: 1.6 A
Airflow: 645.6 m³/h (380 CFM)
Speed: 5830 RPM
Bearing Type: Ball Bearing
Termination: Terminals
Housing Material: Die-cast aluminum
Impeller Material: Aluminium sheet
IP Protection: IP20
Operating Temperature: -25 ~ 55 °C
Weight: 4.5 kg
Approval Agency: CE, VDE, UL, CSA, CCC
Application: This ebmpapst EC centrifugal fan is suitable for use as a gas blower in heating systems and for industrial cooling.
