Description

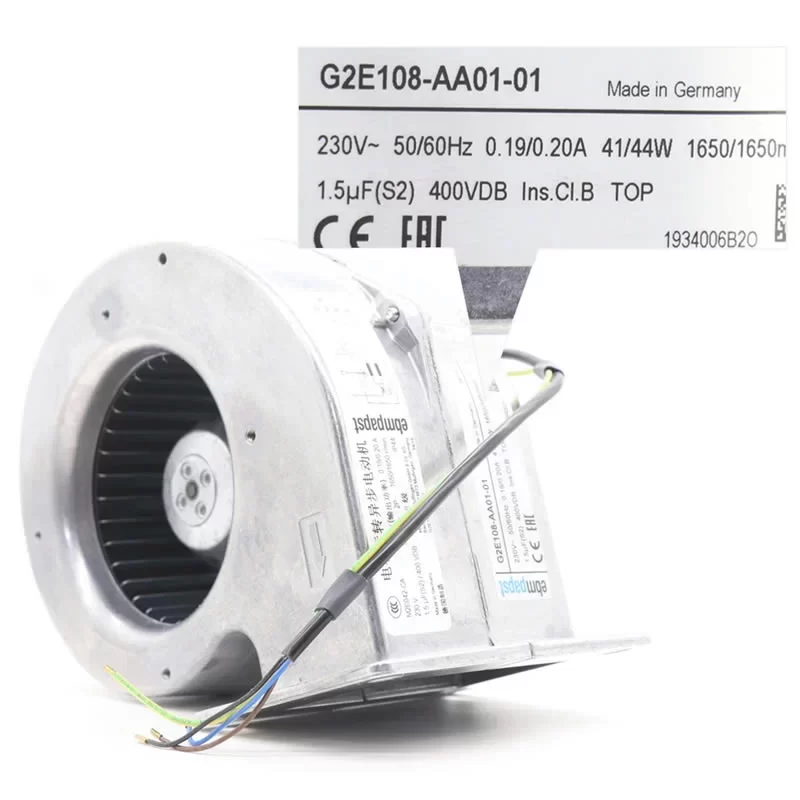

The ebmpapst G2E108-AA01-01 is a high-performance 230VAC single-phase AC Centrifugal Fan with a housing (flange) and an impeller diameter of 108 mm, specifically engineered for mission-critical cooling in laboratory instrumentation and industrial ventilation systems. Driven by the M2E042-CA external rotor motor with maintenance-free ball bearings, this forward-curved single-intake unit operates on a 230 VAC supply, delivering a Power Consumption of 41 W (50 Hz) / 44 W (60 Hz) and a Current Draw of 0.19 A / 0.20 A at a rated speed of 1650 RPM under free air conditions. Requiring a 1.5 µF / 400 VDB motor capacitor for operation, this unit is optimized for stable air movement with zero minimum back pressure. Featuring a rugged die-cast aluminum housing and hot-dip galvanized sheet steel impeller, this 108 mm unit ensures superior thermal management and an extended service life in continuous S1 environments at the end.
G2E108-AA01-01 Fan Parameters
Model Number: G2E108-AA01-01
Motor Model: M2E042-CA
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward-curved, single-intake)
Fan Size: 108 mm
Dimensions: 159 x 183 x 115 mm
Weight: 1.3 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.19 / 0.20 A
Power Consumption: 41 / 44 W
Capacitor: 1.5 µF
Capacitor Voltage: 400 VDB
Capacitor Standard: S2 (CE)
Rated Speed: 1650 / 1650 RPM
Min. Back Pressure: 0 Pa (0 in. wg)
Touch Current: < 0.75 mA
Noise Level: 57.0 dB(A)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: "B"
Degree of Protection: IP44
Protection Class: I
Impeller Material: Sheet steel, hot-dip galvanized
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 55 °C
Min. Operating Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; CE
Application
The ebmpapst G2E108-AA01-01 fan is the primary cooling component for laboratory equipment, small-scale control cabinets, and localized industrial cooling systems requiring a compact flanged centrifugal blower.
