G2E120-AR77-01 ebmpapst 230V AC Centrifugal Fan 120mm

Description

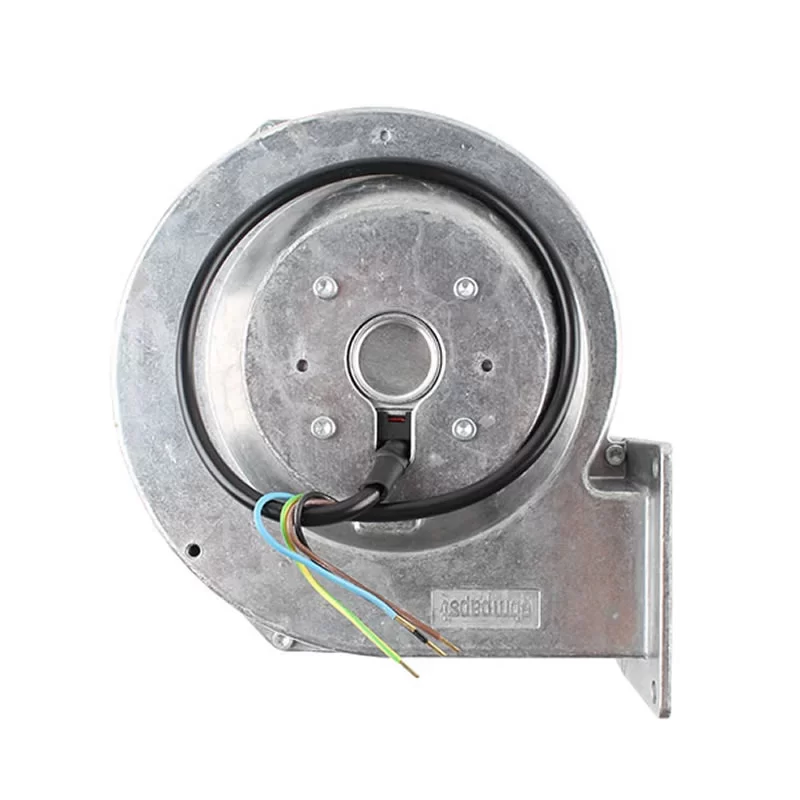

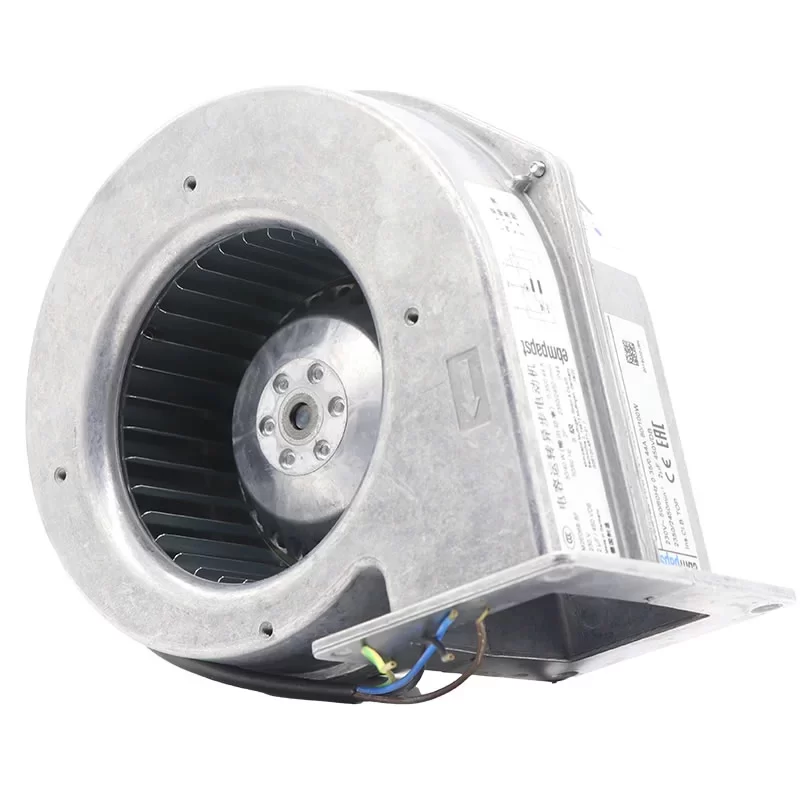

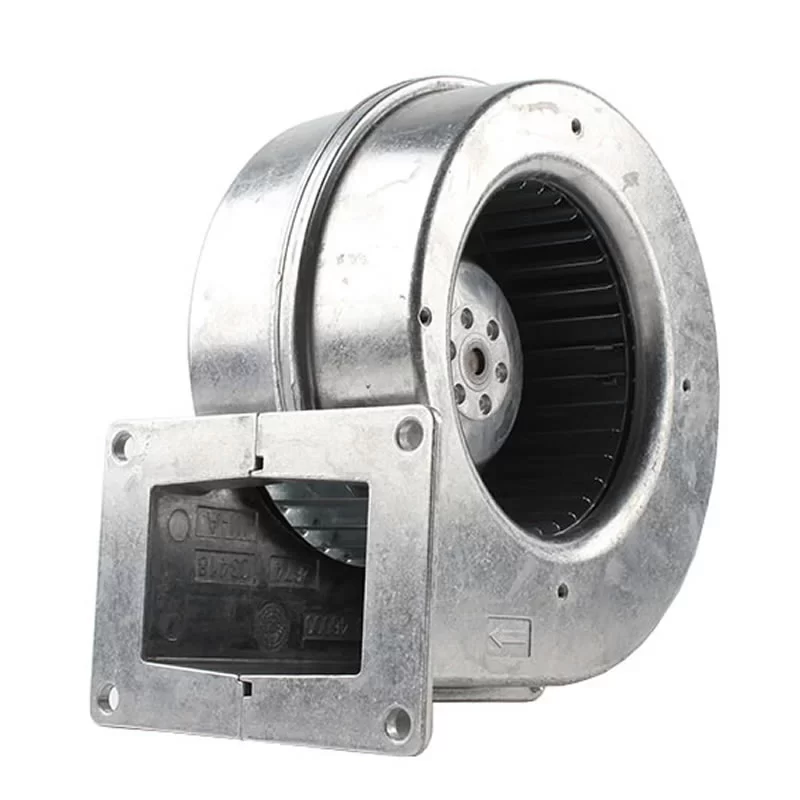

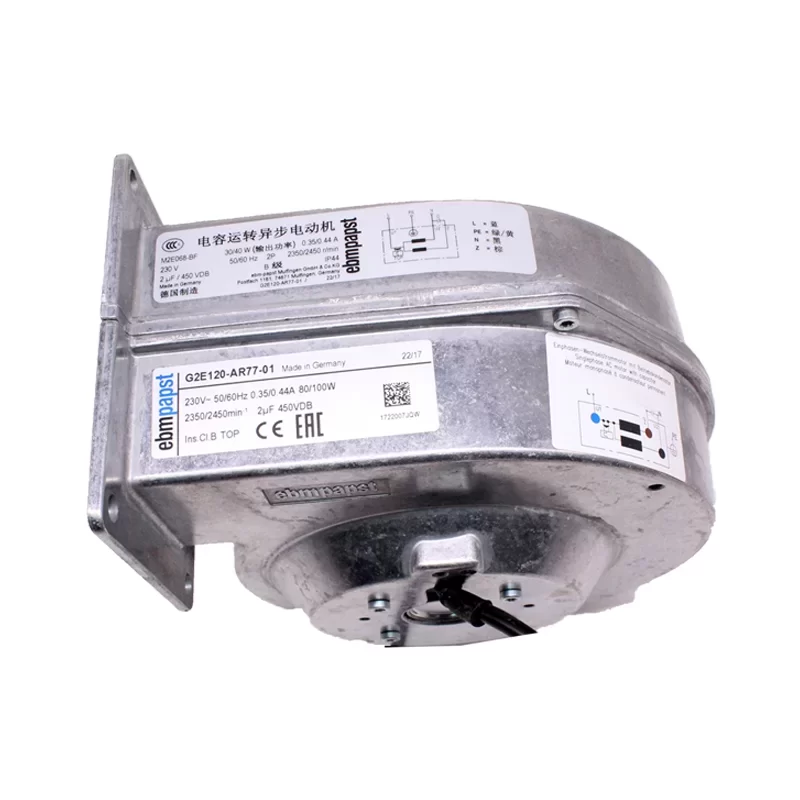

The ebmpapst G2E120-AR77-01 is an AC Centrifugal Fan (Forward Curved) with an impeller diameter of 120 mm. It operates on a single-phase nominal voltage of 230 VAC at 50/60 Hz. The fan achieves speeds of 2350/2450 RPM, consuming 80/100 W of power and drawing a maximum current of 0.35/0.44 A. It delivers a maximum air flow of 260 m³/h (153.0 CFM) and a high maximum static pressure of 280 Pa (1.12 inAq). This robust fan features IP44 protection and Class B insulation, making it ideal for air conditioning units and high-pressure ventilation systems.

G2E120-AR77-01 Fan Parameters

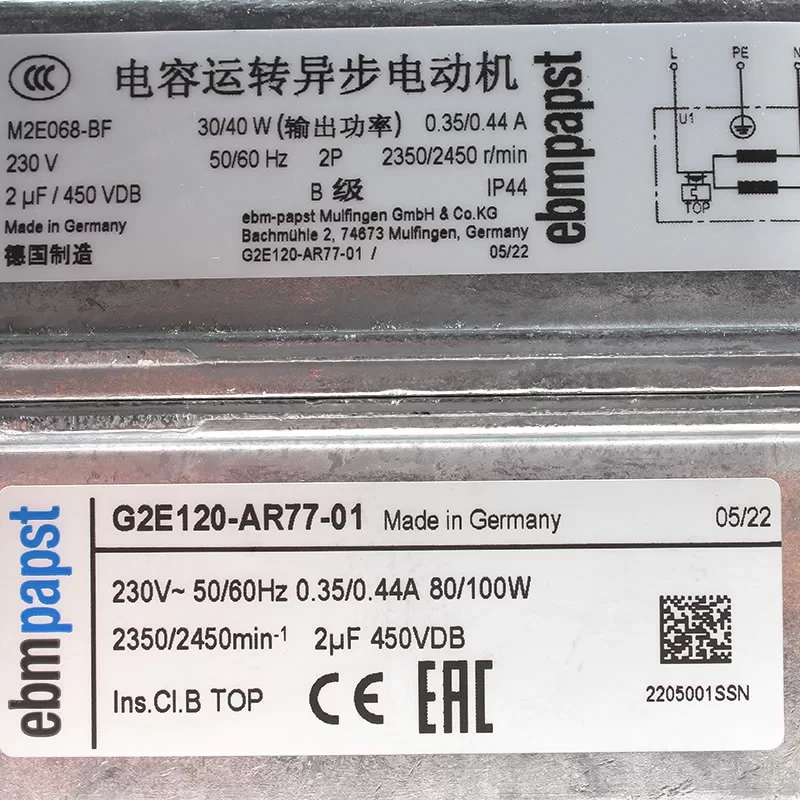

Model: G2E120-AR77-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward Curved, Single Inlet)
Dimensions (Impeller Diameter): 120 mm
Nominal Voltage: 230 VAC
Voltage Type: 1~ AC
Frequency: 50/60 Hz
Speed: 2350 RPM / 2450 RPM
Power Consumption: 80/100 W
Current Draw: 0.35/0.44 A
Starting Current: 0.47 A
Capacitor: 2 µF
Max. Airflow: 260 m³/h (153.0 CFM)
Max. Static Pressure: 280 Pa (1.12 inAq)
Noise Level: 61 dB(A)
Weight: 1.94 kg
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, galvanized
Bearing Type: Ball bearing
Motor Protection: Thermal overload protector (TOP) internally connected
Degree of Protection: IP44
Insulation Class: B
Protection Class: I
Direction of Rotation: Clockwise, viewed toward rotor
Operation Mode: S1
Min. Ambient Temperature (Operation): -25 °C
Max. Ambient Temperature (Operation): 55 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 80 °C
Approvals: CE, CCC, EAC, UKCA

Application
The ebmpapst G2E120-AR77-01 fan is optimized for high-pressure air movement in compact, contained systems. Primary applications for the G2E120-AR77-01 include cooling electronic enclosures, centralized ventilation systems, air handling units, heat pumps, and specialized cooling applications where an AC motor and high static pressure capability are required.
