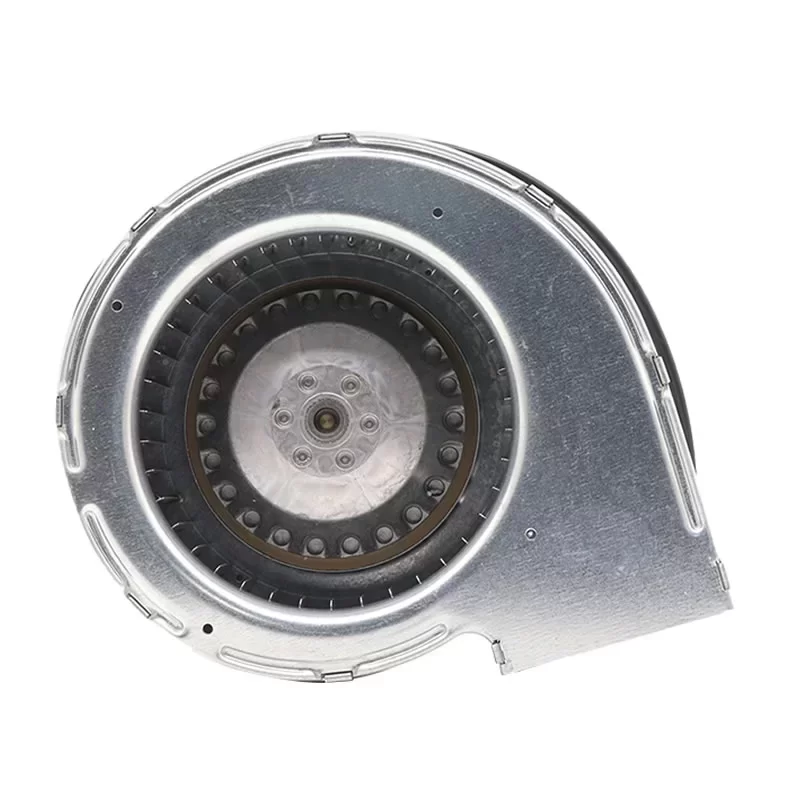

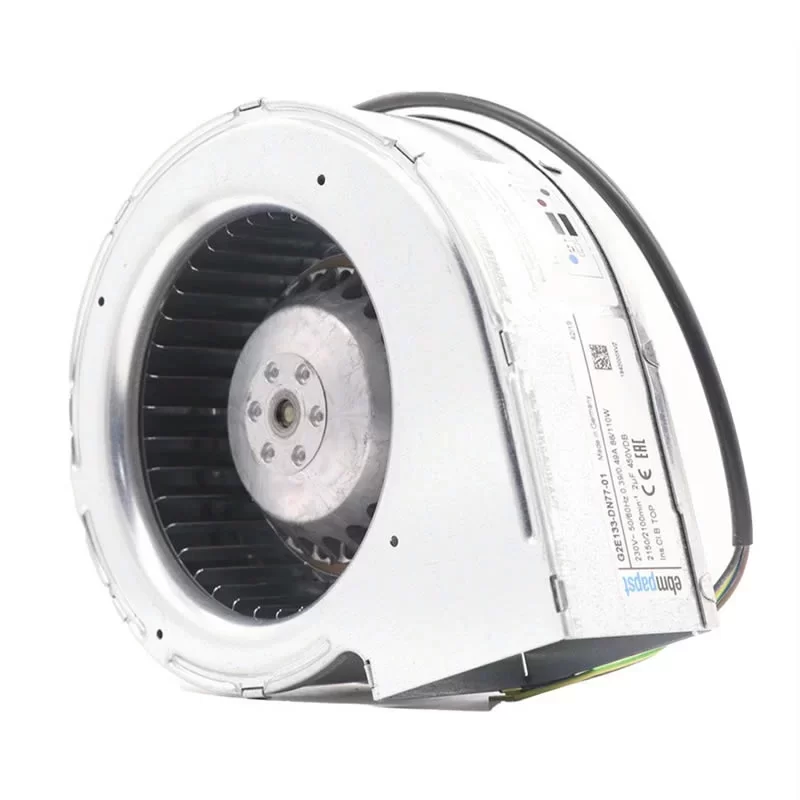

G2E133-DN77-01 ebmpapst 230V 133mm AC Centrifugal Blower

Description

The ebmpapst G2E133-DN77-01 is a high-performance 230VAC single-phase AC Centrifugal Blower, featuring forward-curved impellers within a galvanized sheet steel housing without a flange. Driven by the M2E068-BF motor with integrated thermal overload protection (TOP), this 133 mm impeller size blower is specifically engineered for high-static pressure applications in residential ventilation, laboratory extraction, and industrial cooling. Operating on a 230 VAC supply, it delivers a Power Consumption of 88 W / 110 W and a Current Draw of 0.39 A / 0.49 A at rated speeds of 2150 / 2100 RPM. Featuring a galvanized sheet steel impeller, an unpainted rotor surface, and a 2.0 µF / 450 VDB capacitor system, it ensures superior aerodynamic efficiency and reliable continuous S1 operation in demanding environments at the end.

G2E133-DN77-01 Fan Parameters
Model Number: G2E133-DN77-01
Motor Model: M2E068-BF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Forward-curved, single-intake with housing (without flange)
Impeller Size: 133 mm
Dimensions: 171 x 180 x 81 mm
Weight: 1.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.39 / 0.49 A
Power Consumption: 88 / 110 W
Rated Speed: 2150 / 2100 RPM
Max. Air Flow: 147.1 CFM (250.0 m³/h / 4.17 m³/min)
Max. Static Pressure: 17.34 mmH₂O (170.0 Pa / 0.68 inAq)
Capacitor: 2.0 µF / 450 VDB
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Rotor Surface: Unpainted
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Moisture (F) / Environmental (H) Protection Class: H0 – dry environment
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: None
Installation Position: Any
Mode: S1 (Continuous operation)
Protection Class: I (if protective earth is connected)
Max. Ambient Temperature: 55 / 50 °C
Min. Ambient Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC

Application
The ebmpapst G2E133-DN77-01 centrifugal blower is the primary air-moving solution for localized extraction systems, high-static residential ventilation, and precision industrial cooling requiring stable 230V AC airflow in a 133mm non-flanged configuration.
