Description

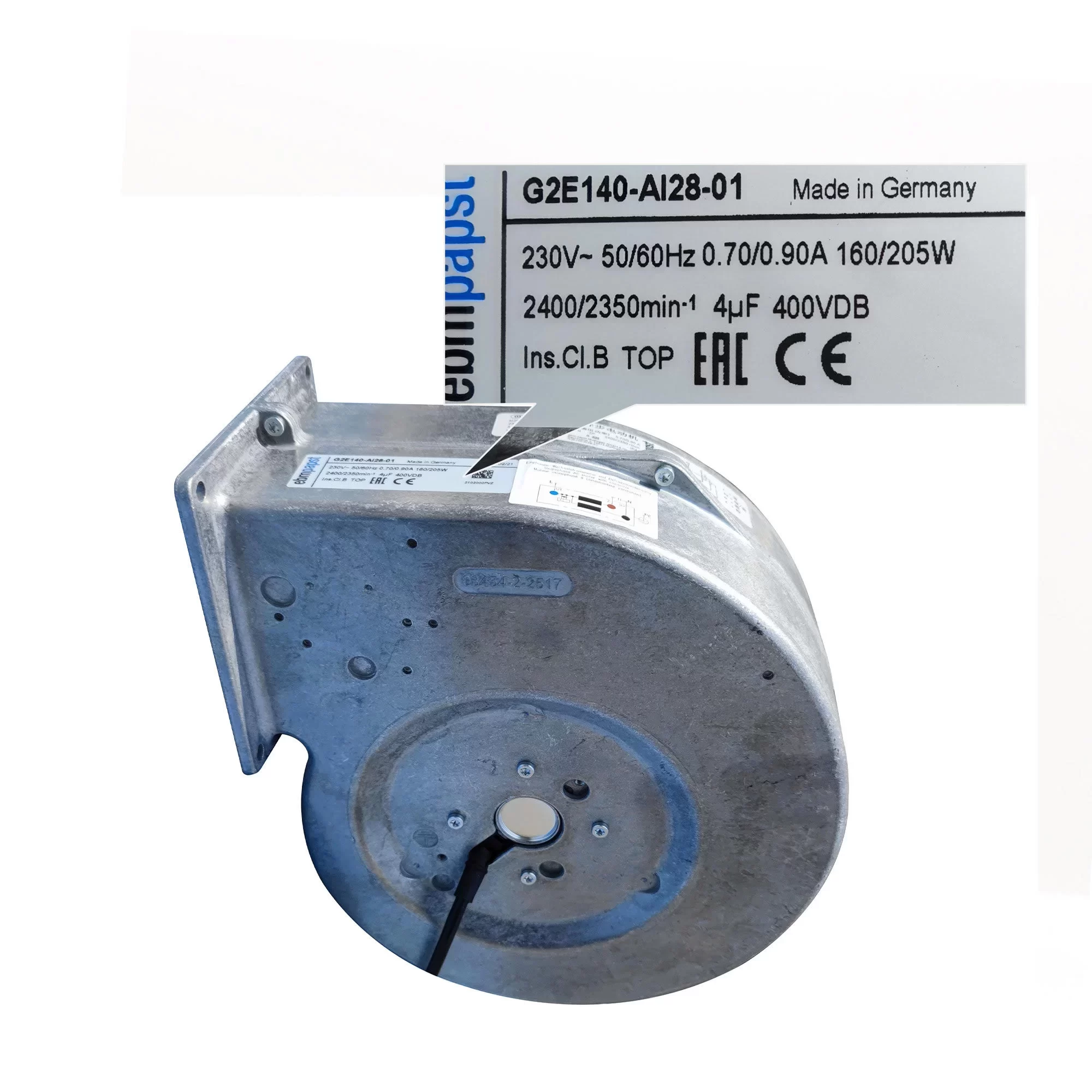

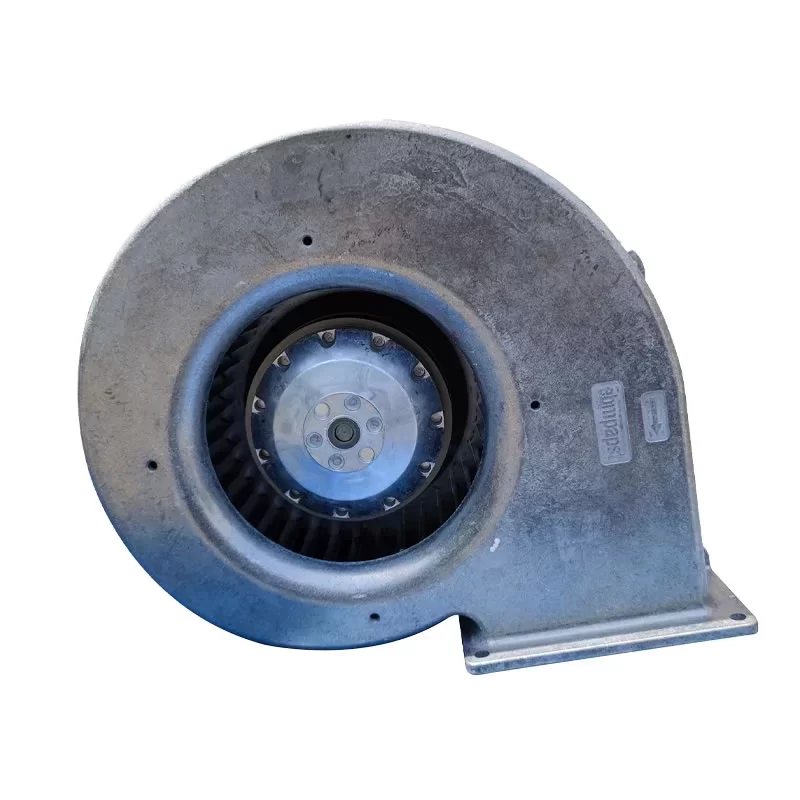

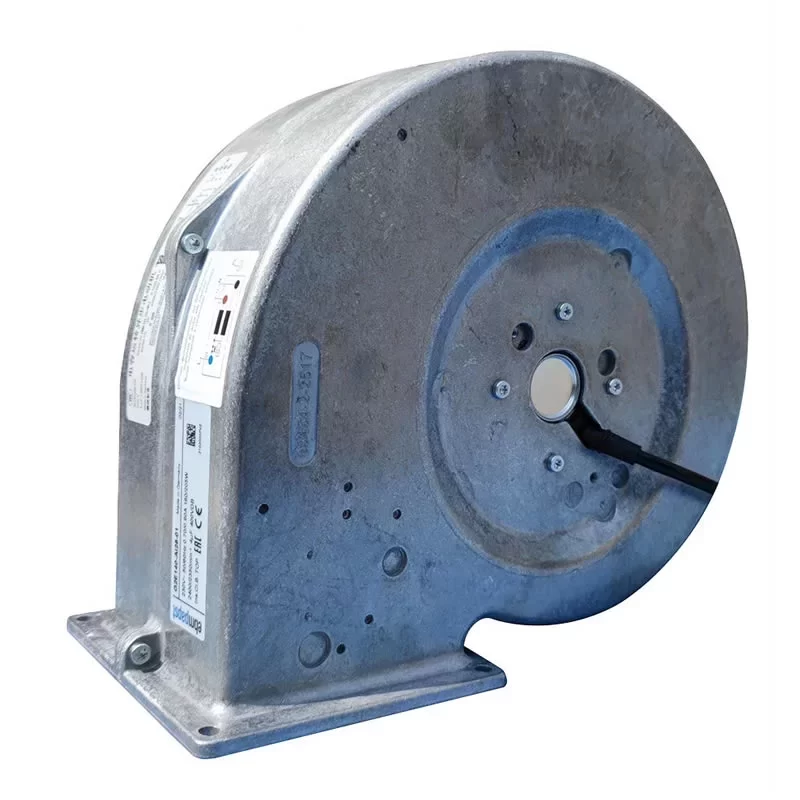

The ebmpapst G2E140-AI28-01 is a high-performance 230VAC single-phase AC Centrifugal Fan featuring forward-curved blades with an Impeller Size of 140 mm and a robust die-cast aluminium housing with flange. Specifically engineered for mission-critical industrial ventilation and air-moving applications, this 140 mm unit is driven by the M2E068-DF external rotor motor with maintenance-free ball bearings and a 4.0 µF / 400 VDB capacitor connection. Operating on a 230 VAC supply, it delivers a Power Input of 160 W (50 Hz) / 205 W (60 Hz) and a Current Draw of 0.7 A / 0.9 A at a rated speed of 2400 / 2350 RPM under running at free air (rfa) conditions. Featuring a rugged hot-galvanised sheet steel impeller and a black coated rotor surface, it ensures superior thermal management with IP44 protection, F0 humidity class, and an extended service life in continuous S1 environments at the end.
G2E140-AI28-01 Fan Parameters
Model Number: G2E140-AI28-01
Motor Model: M2E068-DF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan – Forward curved, single inlet
Impeller Size: 140 mm
Weight: 3.52 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: rfa (Running at free air)
Current Draw: 0.7 / 0.9 A
Power Input: 160 / 205 W
Rated Speed: 2400 / 2350 RPM
Max. Air Flow: 235.4 / 235.4 CFM (400.0 / 400.0 m³/h / 6.67 / 6.67 m³/min)
Max. Static Pressure: 0.0 / 0.0 Pa (at rfa condition)
Capacitor: 4.0 µF / 400 VDB
Number of Blades: Multi-vane
Impeller Material: Sheet steel, hot-galvanised
Housing Material: Die-cast aluminium
Rotor Surface: Coated in black
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Humidity Class: F0
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) wired internally
Condensate Discharge Holes: None
Mounting Position: Any
Mode: S1
Protection Class: I
Max. Ambient Temperature: 70 / 45 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; GOST
Application
The ebmpapst G2E140-AI28-01 fan is the primary cooling component for industrial air curtains, localized exhaust systems, and cabinet cooling requiring high-pressure 230V single-phase centrifugal airflow with a 140mm forward-curved housing configuration.
