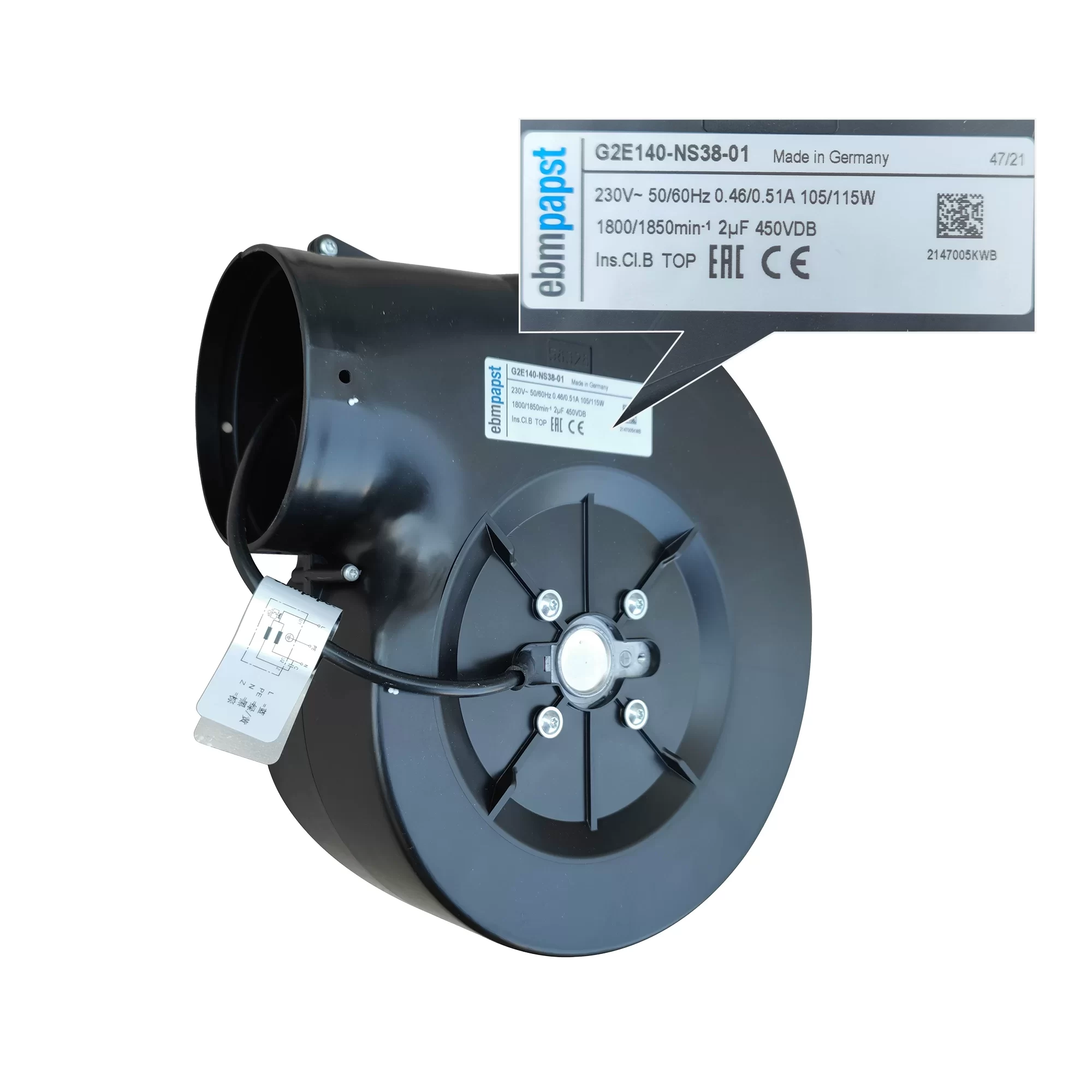

G2E140-NS38-01 ebmpapst 230V AC Centrifugal Fan

Description

The ebmpapst G2E140-NS38-01 is an AC Centrifugal Fan measuring 237x277x100mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.46A of current, consumes 105W of power, and achieves a speed of 1800 RPM, providing an airflow of 390 m³/h at a noise level of 59 dBA. When running at 60Hz, the current is 0.51A, power is 115W, and the speed reaches 1850 RPM, with an airflow of 370 m³/h at a noise level of 59 dBA. This fan features a durable ball bearing system and has an IP44 ingress protection level. With an aluminum and plastic housing and a PP-TV40 plastic impeller, it is a reliable solution for various industrial and air handling applications.

G2E140-NS38-01 Fan Parameters
Model: G2E140-NS38-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Dimensions: 237 x 277 x 100 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Weight: 1.6 kg
Bearing Type: Ball Bearing
Protection Level: IP44
Termination: 4 Wire Leads
Housing Material: Aluminum, Plastic
Impeller Material: PP-TV40 plastic
Operating Temperature: -25 to 40 °C
Motor Protection: Thermal overload protector internally connected

50Hz Performance
Current Draw: 0.46 A
Power Input: 105 W
Fan Speed: 1800 RPM
Airflow: 390 m³/h (230 CFM)
Noise Level: 59 dB(A)

60Hz Performance
Current Draw: 0.51 A
Power Input: 115 W
Fan Speed: 1850 RPM
Airflow: 370 m³/h (230 CFM)
Noise Level: 59 dB(A)

Application: Industrial and air handling applications.
