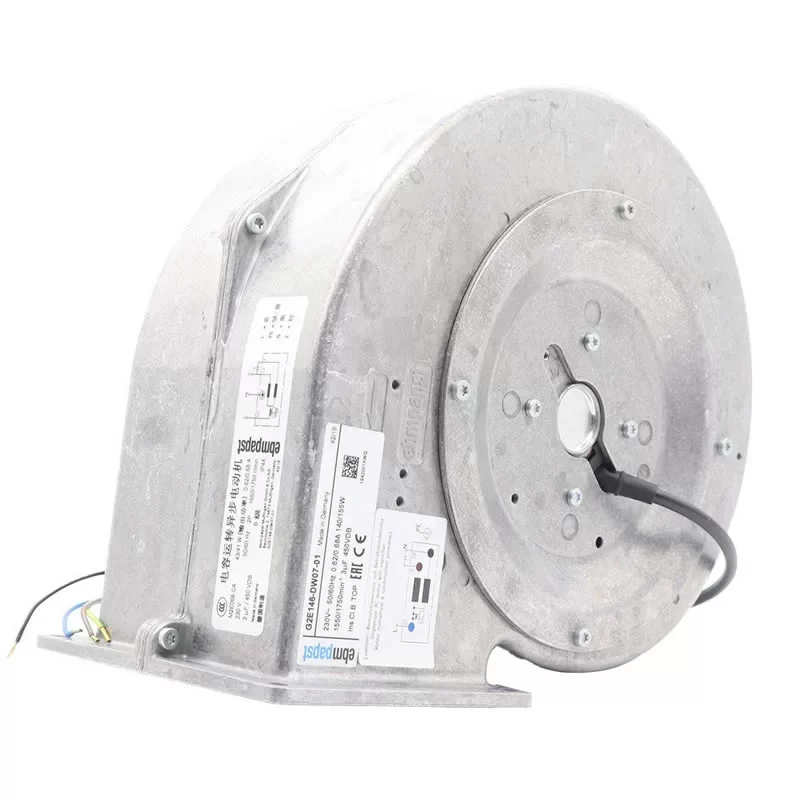

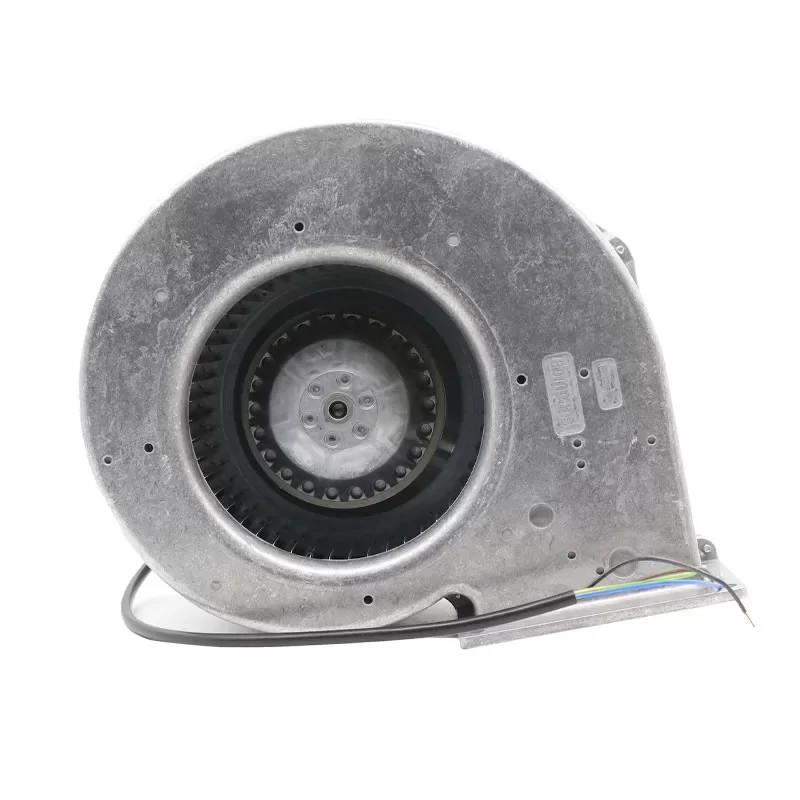

G2E146-DW07-01 ebmpapst 230V AC Centrifugal Blower

Description

The ebmpapst G2E146-DW07-01 is a high-performance 230VAC single-phase AC Centrifugal Blower, featuring forward-curved impellers within a robust flanged housing. Made in Germany and driven by a specialized AC motor with integrated thermal overload protection (TOP), this 146 mm impeller size blower is specifically engineered for medical equipment, laboratory ventilation, and industrial cooling applications. Operating on a 230 VAC supply, it delivers a Power Consumption of 140 W / 155 W and a Current Draw of 0.62 A / 0.68 A at rated speeds of 1550 / 1750 RPM. Featuring a galvanized sheet steel impeller and a high-quality 3.0 µF / 450 VDB capacitor system, it ensures stable air delivery, low acoustic noise, and reliable continuous S1 operation in demanding environments at the end.

G2E146-DW07-01 Fan Parameters
Model Number: G2E146-DW07-01
Motor Model: M2E068-CA
Manufacturer: ebmpapst (Made in Germany)
Type: AC Centrifugal Blower – Forward-curved, single-intake with housing (flange)
Impeller Size: 146 mm
Dimensions: 248 x 227 x 130 mm
Weight: 2.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air) / ml (Max. load)
Current Draw: 0.62 / 0.68 A
Power Consumption: 140 / 155 W
Rated Speed: 1550 / 1750 RPM
Max. Air Flow: 280.0 CFM (475.0 m³/h / 7.92 m³/min)
Max. Static Pressure: 46.90 mmH₂O (460.0 Pa / 1.85 inAq)
Capacitor: 3.0 µF / 450 VDB
Impeller Material: Sheet steel, galvanized
Housing Material: Die-cast aluminum
Rotor Surface: Unpainted
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44 (installation-dependent)
Moisture (F) / Environmental (H) Protection Class: H0 (Dry environment)
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: None
Installation Position: Any
Mode: S1 (Continuous operation)
Protection Class: I (if protective earth is connected)
Max. Ambient Temperature: 45 / 30 °C
Min. Ambient Temperature: -25 °C
Standard Compliance: EN 61800-5-1; CE
Approval: EAC; CE; CCC

Application
The ebmpapst G2E146-DW07-01 centrifugal blower is the primary air-moving solution for medical respirators, lab ventilation hoods, and precision industrial cooling systems requiring stable 230V AC airflow in a 146mm flanged configuration.
