Description

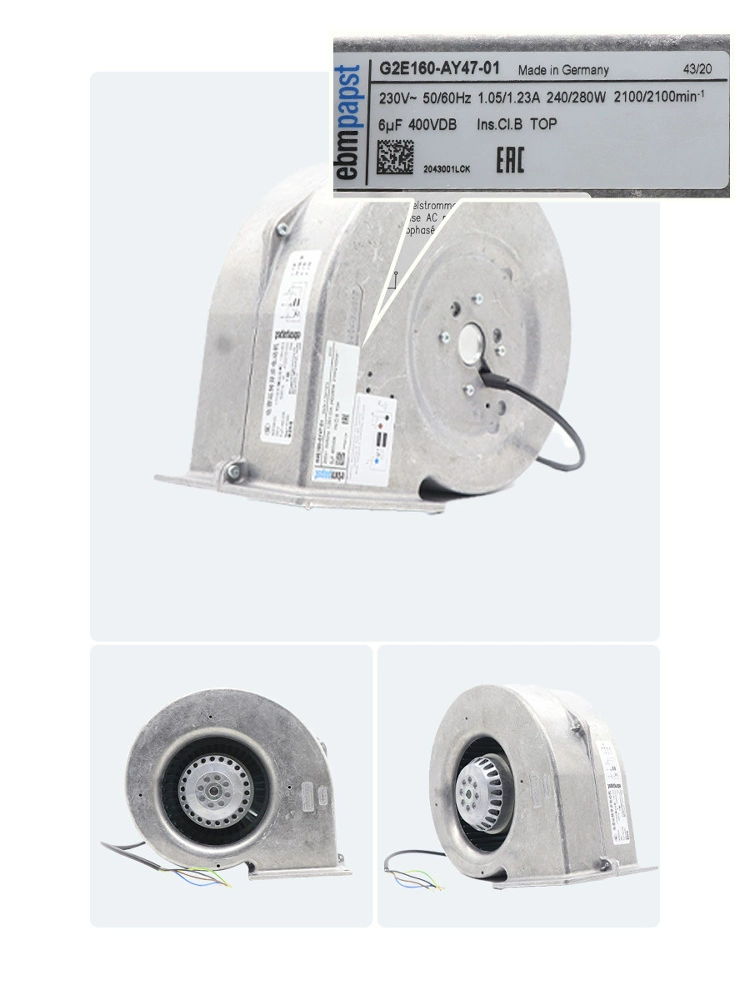

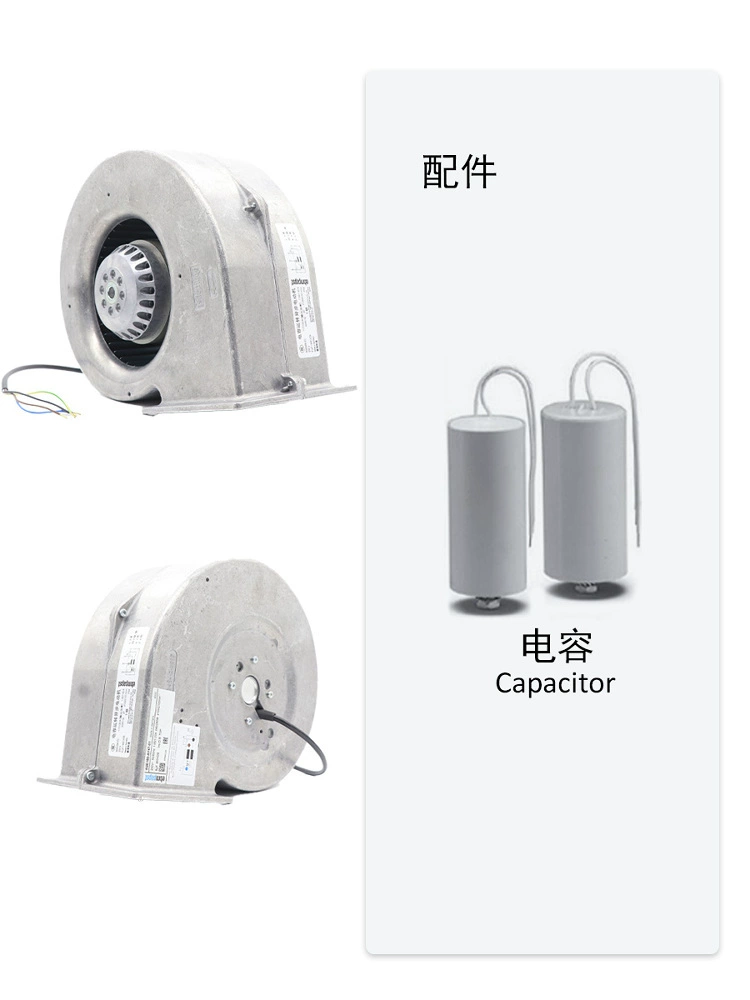

The ebmpapst G2E160-AY47-01 is a powerful 160mm AC centrifugal fan with backward-curved blades, designed for efficient air handling in various systems, often without the need for a separate scroll housing. Operating on a 230V AC (1-phase) power supply at both 50Hz and 60Hz, this fan precisely draws 1.05A (50Hz) or 1.23A (60Hz) of current, consuming 240W (50Hz) or 280W (60Hz) of power. It achieves a rotational speed of 2100 RPM. Utilizing durable ball bearings and an IP44 degree of protection, this model offers reliable and robust performance for demanding applications.
G2E160-AY47-01 Fan Parameters
Model Number: G2E160-AY47-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved motorized impeller)
Nominal Diameter: 160 mm
Motor: M2E068-DF
Rated Voltage: 230 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 1.05A (50Hz) / 1.23A (60Hz)
Rated Power: 240 W (50Hz) / 280 W (60Hz)
Speed: 2100 RPM
Bearing Type: Ball Bearing
Impeller Material: PA plastic (6 blades)
Rotor Surface: Coated in black
Direction of Rotation: Clockwise, viewed on rotor
Electrical Connection: Plug terminal
Motor Protection: Thermal overload protector (TOP) internally connected
Weight: 4 kg
Operating Temperature: -25°C to +40°C
Degree of Protection: IP44
Insulation Class: “B”
Conformity: CE, EAC
Application: Air handling units, ventilation systems, cleanroom technology, refrigeration, general industrial equipment.
