Description

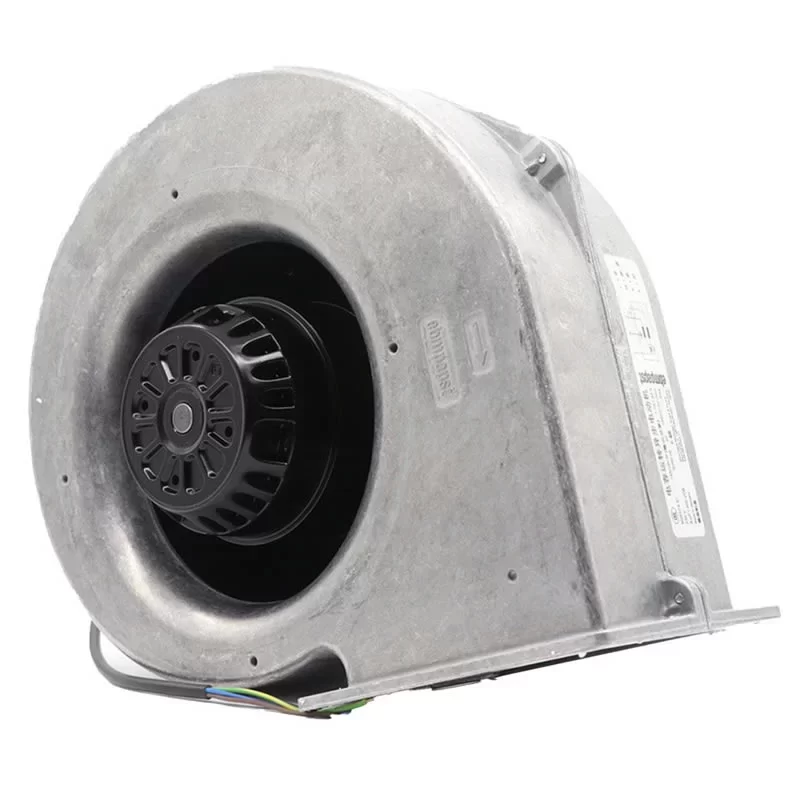

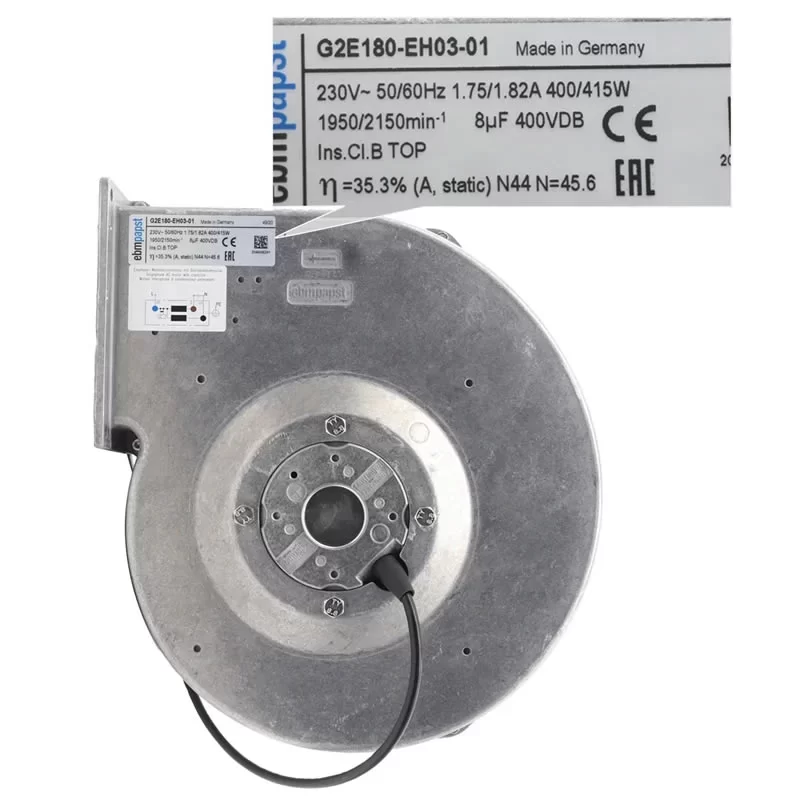

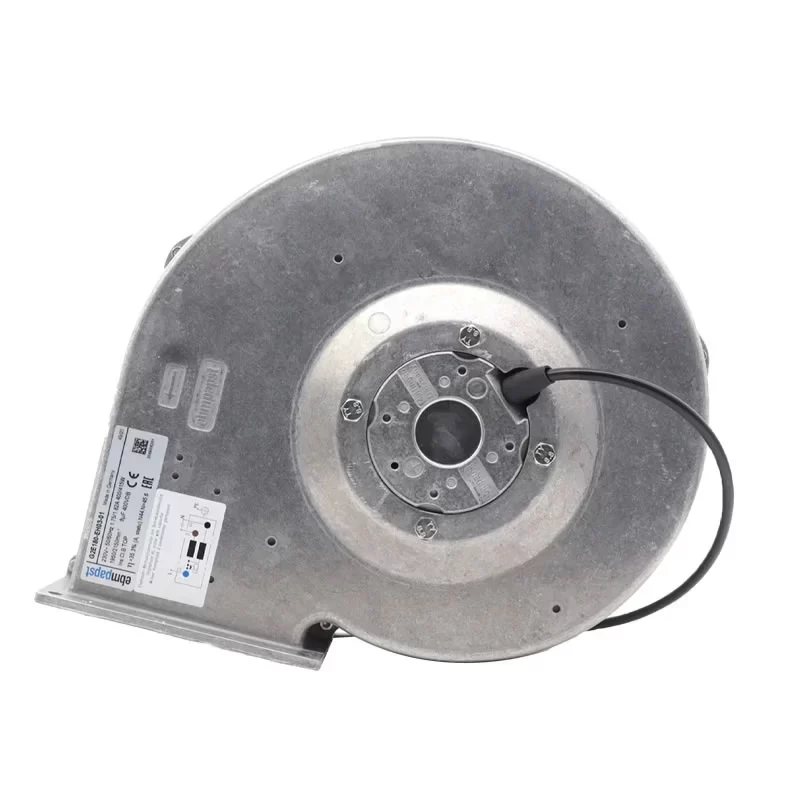

The ebmpapst G2E180-EH03-01 is a high-performance 230VAC single-phase AC Centrifugal Blower, featuring forward-curved impellers within a robust flanged die-cast aluminum housing. Driven by the M2E074-EI motor with integrated thermal overload protection (TOP), this 180 mm impeller size blower is specifically engineered for precision air handling units, ventilation systems, and industrial equipment cooling. Operating on a 230 VAC supply, it delivers a Power Consumption of 400 W / 415 W and a Current Draw of 1.75 A / 1.82 A at rated speeds of 1950 / 2150 RPM. Featuring a black-painted sheet steel impeller, a black-painted rotor surface, and a high-quality 8.0 µF / 400 VDB capacitor system, it ensures efficient high-capacity air delivery and reliable continuous S1 operation in demanding environments at the end.
G2E180-EH03-01 Fan Parameters
Model Number: G2E180-EH03-01
Motor Model: M2E074-EI
Manufacturer: ebmpapst
Type: AC Centrifugal Blower – Forward-curved, single-intake with housing (flange)
Impeller Size: 180 mm
Dimensions: 261 x 282 x 125 mm
Weight: 5.4 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa / ml
Current Draw: 1.75 / 1.82 A
Starting Current: 2.2 / 2.0 A
Power Consumption: 400 / 415 W
Rated Speed: 1950 / 2150 RPM
Max. Air Flow: 382.6 CFM (650.0 m³/h / 10.83 m³/min)
Max. Static Pressure: 56.09 mmH₂O (550.0 Pa / 2.21 inAq)
Capacitor: 8.0 µF / 400 VDB (S0)
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Moisture (F) / Environmental (H) Protection Class: H0 – dry environment
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: On rotor side
Installation Position: Any (Shaft horizontal/Rotor bottom/Rotor top)
Mode: S1 (Continuous operation)
Protection Class: I (if protective earth is connected)
Max. Ambient Temperature: 40 / 30 °C
Min. Ambient Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC
Application
The ebmpapst G2E180-EH03-01 centrifugal blower is the primary air-moving solution for high-capacity AHU systems, commercial ventilation, and industrial equipment cooling requiring stable 230V AC airflow in a 180mm flanged configuration.
