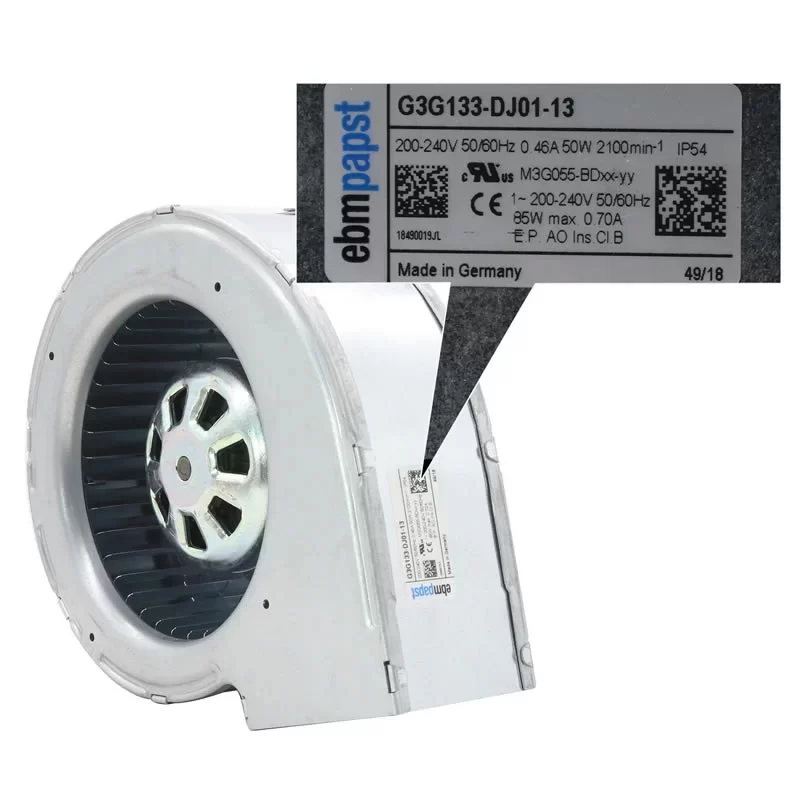

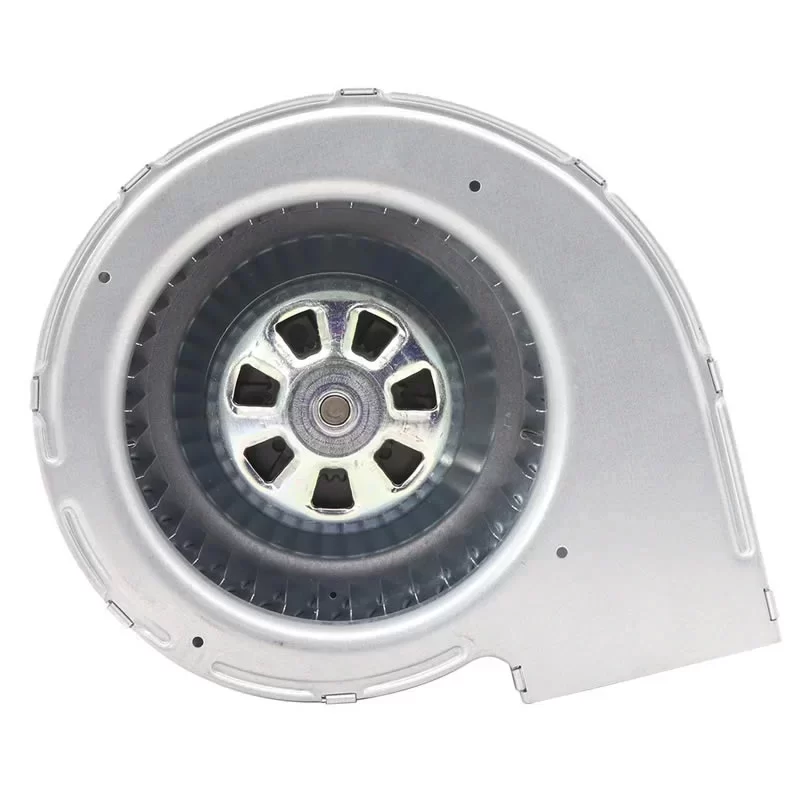

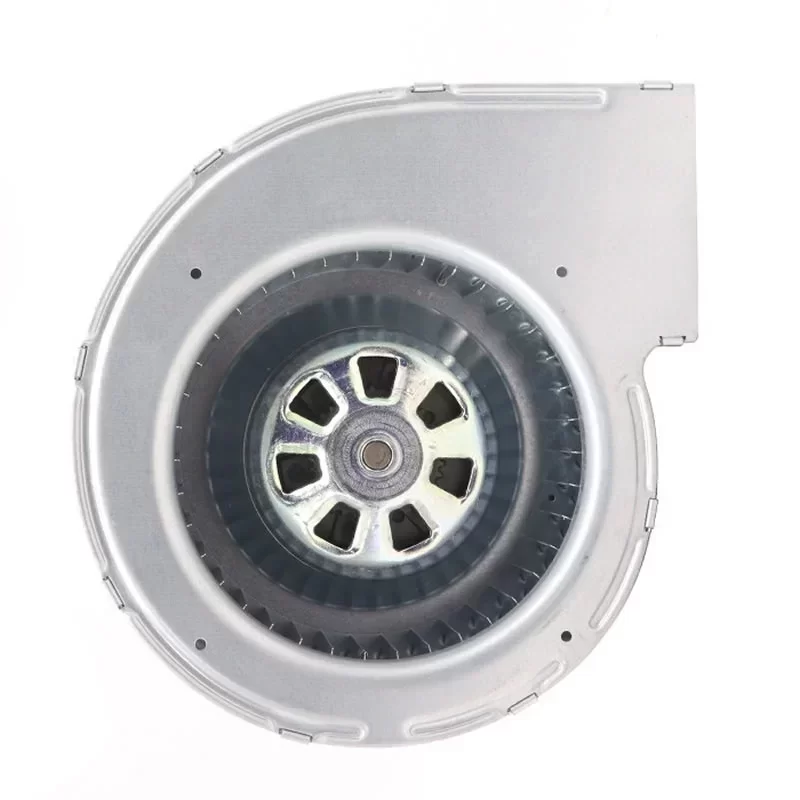

G3G133-DJ01-13 ebmpapst 230VAC 133mm EC Centrifugal Fan

Description

The ebmpapst G3G133-DJ01-13 is a high-efficiency GreenTech EC Centrifugal Fan with an impeller diameter of 133 mm and overall dimensions of 170.4 x 179.8 x 81.1 mm, specifically engineered for mission-critical cooling in industrial control cabinets and electronic enclosures. Driven by the M3G055-BD external rotor motor with maintenance-free ball bearings, this forward-curved single inlet unit operates on a 200 – 240 VAC supply, delivering a Power Consumption of 50 W and a Current Draw of 0.46 A at a rated speed of 2100 RPM under free air conditions. Featuring a rugged galvanized sheet steel housing and thick-film passivated rotor surface, this 133 mm unit ensures maximum operational reliability and precise speed modulation via a 230 V speed setting input. Optimized for continuous S1 environments, it incorporates integrated electronic motor protection and a soft start function to ensure stable thermal management at the end.

G3G133-DJ01-13 Fan Parameters
Model Number: G3G133-DJ01-13
Motor Model: M3G055-BD
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (Forward-curved, single inlet)
Impeller Size: 133 mm
Dimensions: 170.4 x 179.8 x 81.1 mm
Weight: 1.5 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.46 A
Power Consumption: 50 W
Rated Speed: 2100 RPM
Technical Features: Speed setting input (230 V); Motor current limitation; Soft start; Thermal overload protection
Motor Protection: Electronic motor protection
Insulation Class: “B”
Degree of Protection: IP54
Protection Class: I
Moisture (F) / Environmental (H) Class: H1
Rotor Surface: Thick-film passivated
Impeller Material: Sheet steel, galvanized
Housing Material: Sheet steel, galvanized
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: UL 1004-7 + 60730; CCC; CSA C22.2 No. 77; CE

Application
The ebmpapst G3G133-DJ01-13 fan is the primary cooling component for control cabinet ventilation, localized heat exchangers, and industrial electronic systems requiring integrated EC motor protection and stable 230V airflow.
