Description

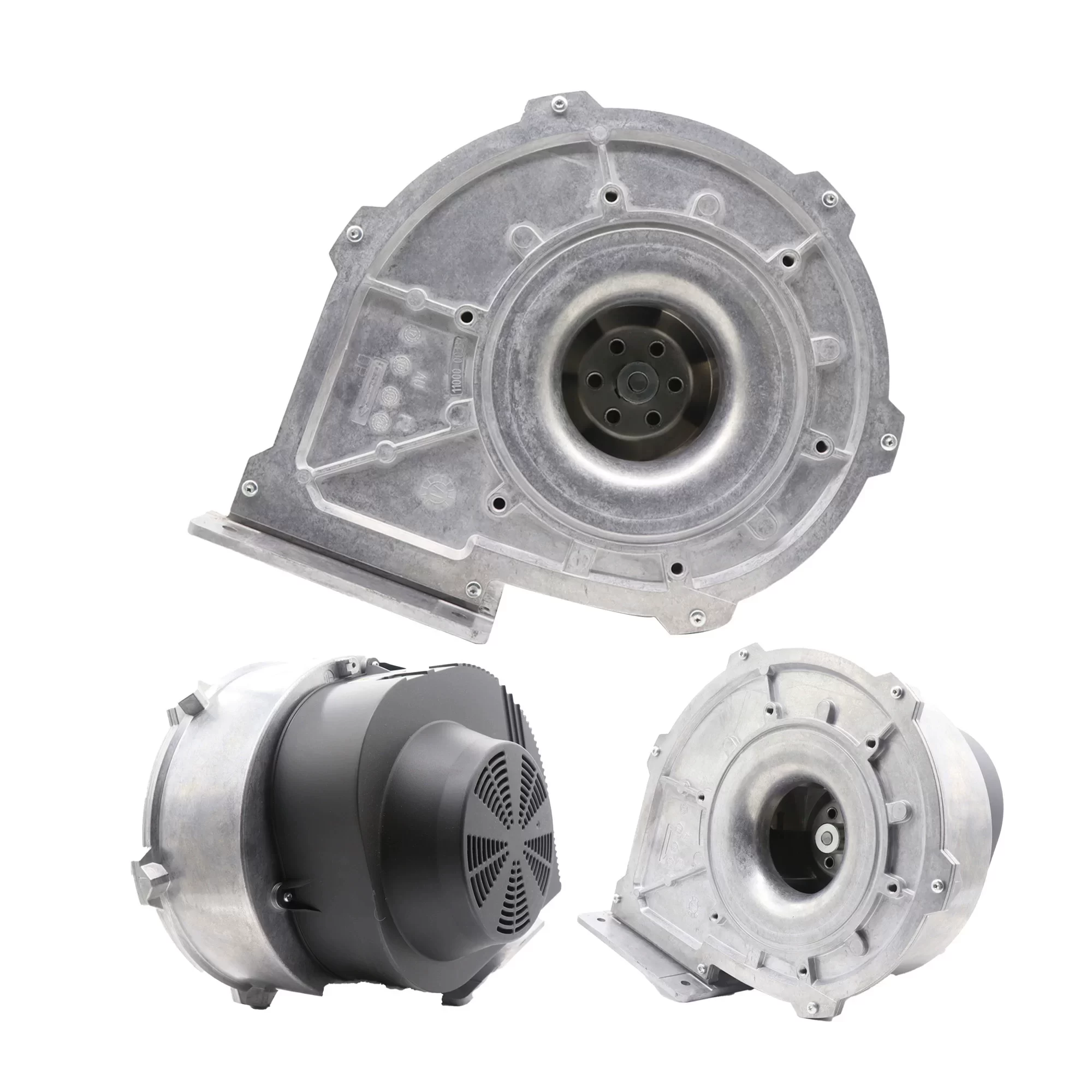

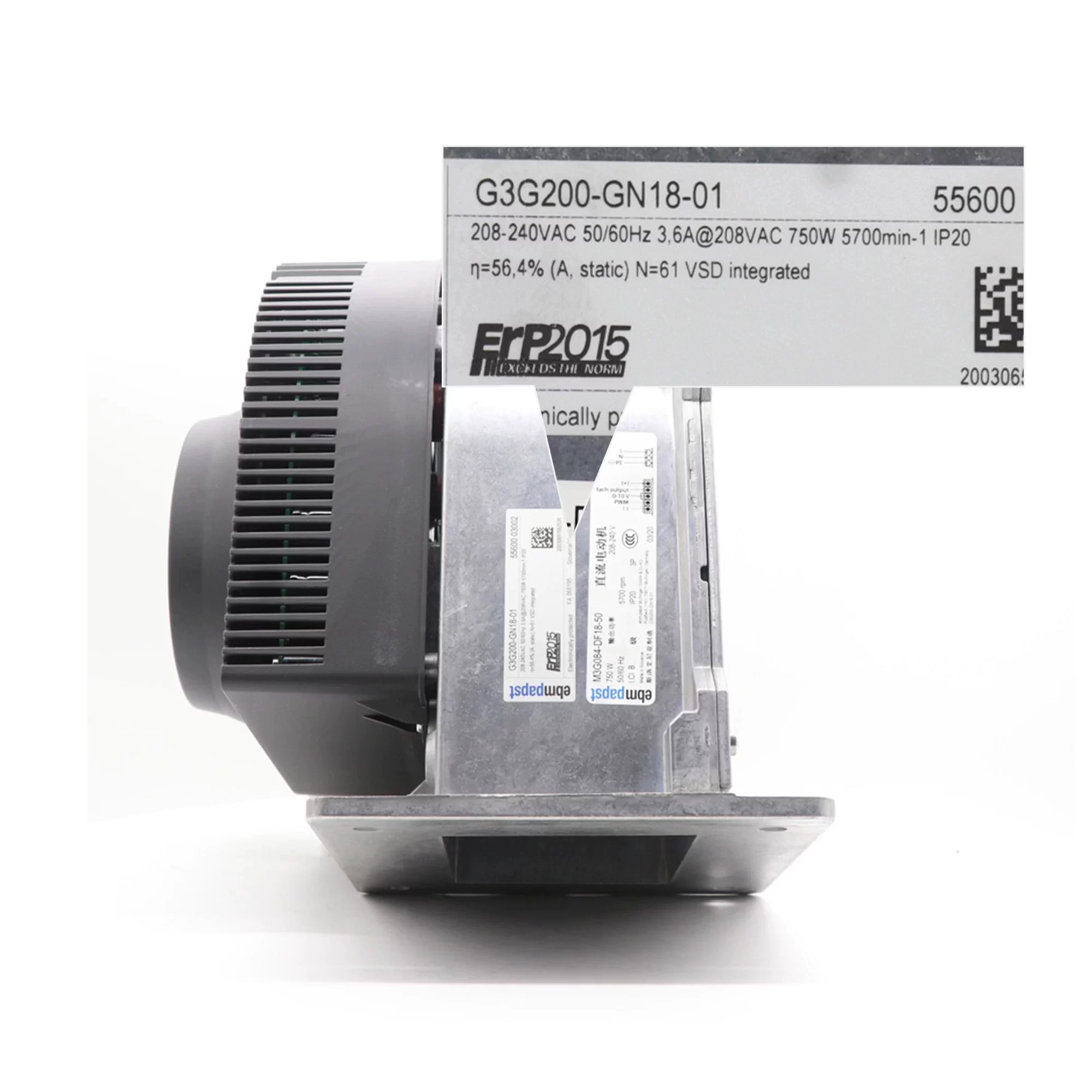

The ebmpapst G3G200-GN18-01 is a high-performance EC centrifugal fan, featuring the M3G074-BF motor and measuring 200x192x100.5mm. Operating at 230VAC within a 208-240V range across both 50Hz and 60Hz frequencies, it consumes 750W of power and draws 3.6A of current. This fan operates at a high speed of 5700RPM. Equipped with durable ball bearings, it boasts an IP20 ingress protection rating.
G3G200-GN18-01 Fan Parameters
Manufacturer: ebmpapst
Model: G3G200-GN18-01
Motor: M3G074-BF
Fan Type: EC Centrifugal Fan
Dimensions: 200 x 192 x 100.5 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 208 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 3.6 A
Power Consumption: 750 W
Speed: 5700 RPM
Bearing Type: Ball Bearing
Termination: Wire Leads
IP Rating: IP20
Weight: 9.2 kg
Approval Agency: CCC, CSA, UL
Application: This ebmpapst EC centrifugal fan is suitable for high-performance applications in heating, ventilation, and industrial systems where powerful and precise airflow is critical.
