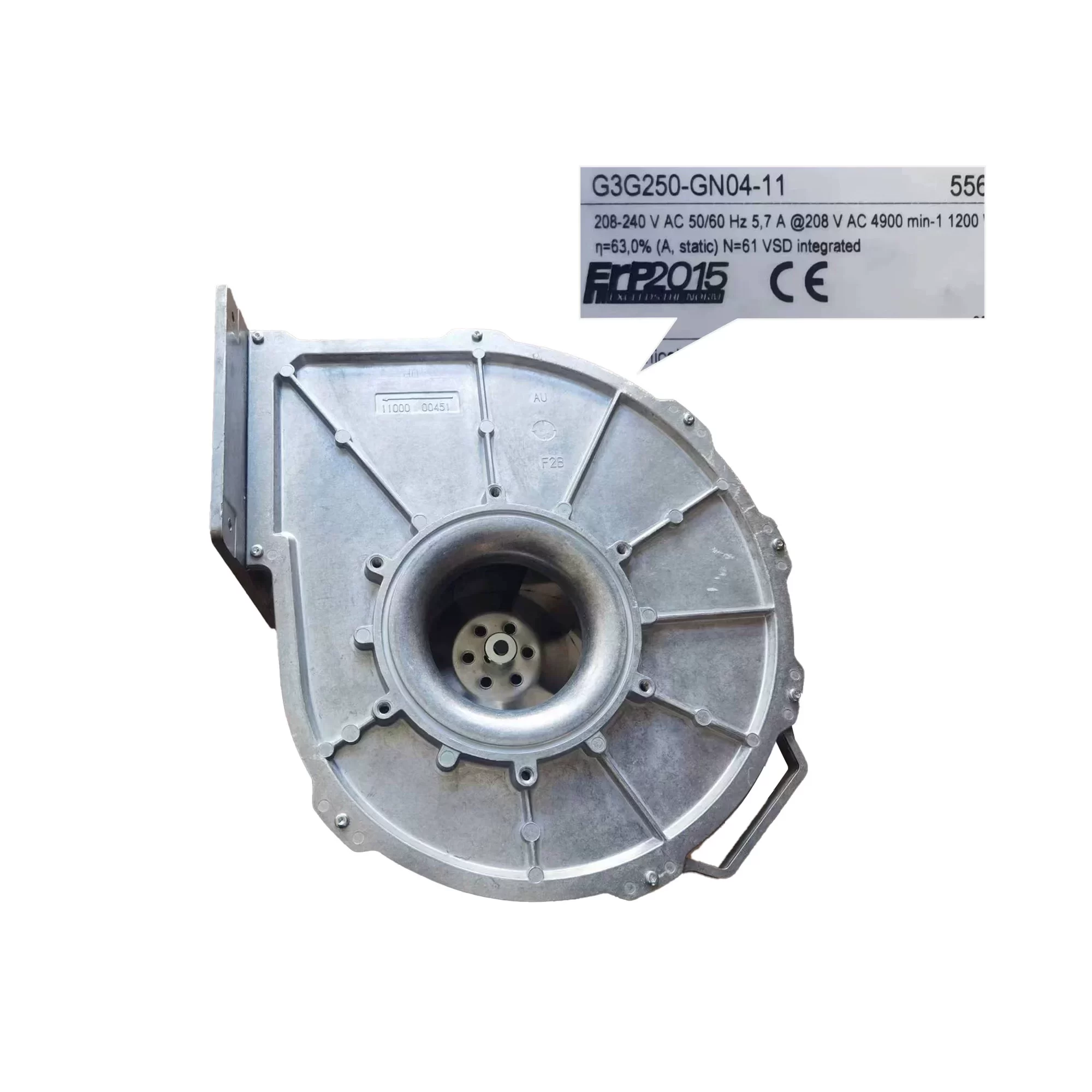

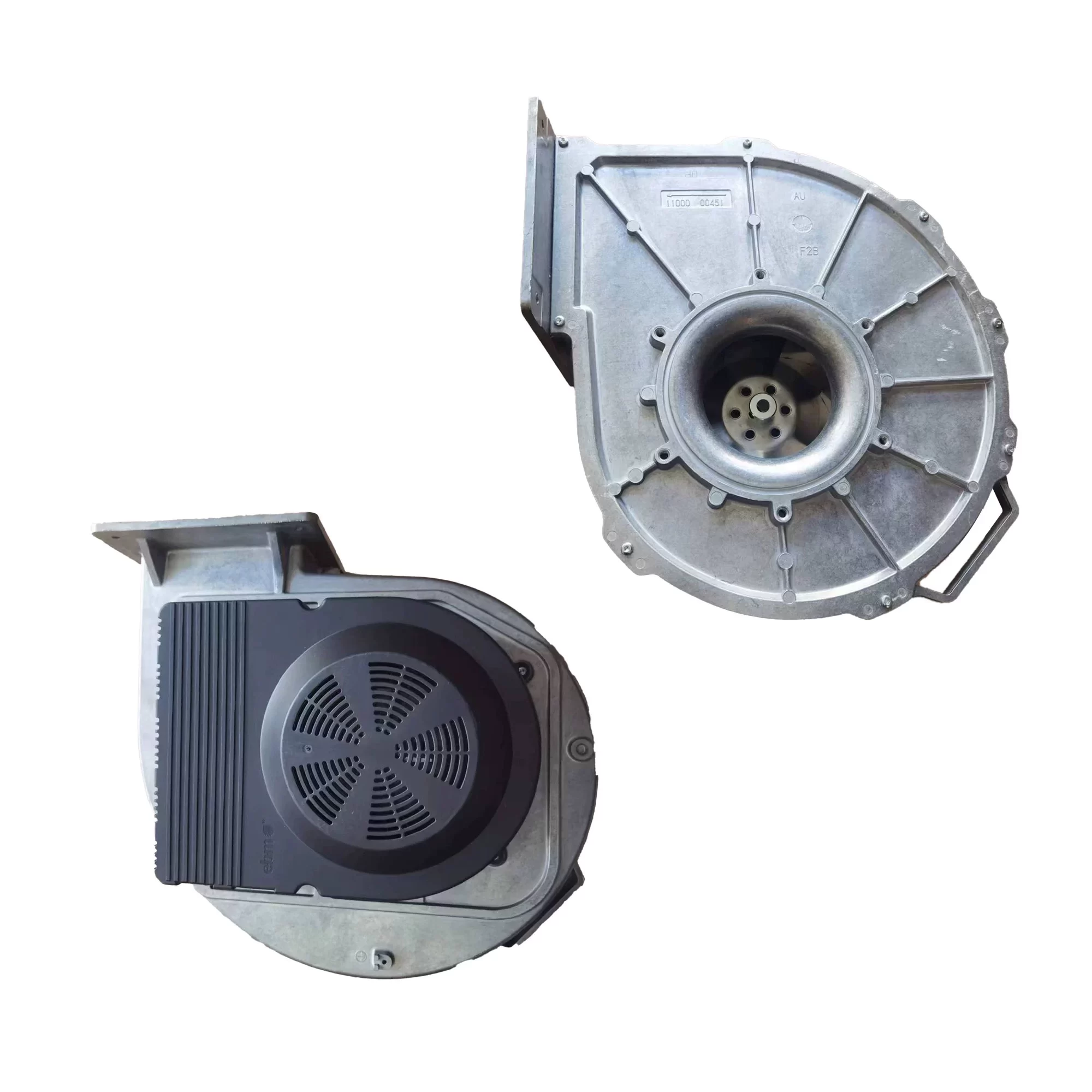

G3G250-GN04-11 ebmpapst 230V EC Centrifugal Fan

Description

The ebmpapst G3G250-GN04-11 is a powerful 230V 208-240VAC (1~) EC centrifugal fan module featuring a 250mm impeller diameter and overall dimensions of approximately Ø280 x 110 mm. Designed for operation across 50/60Hz within a 208-240VAC range, it draws 5.7A of current and consumes 1200W of power. This fan achieves a high static pressure of 2547Pa, operating at a high speed of 4900RPM. Featuring durable ball bearings and power leads for connection, it also includes control input options like 0-10V or PWM for precise speed regulation. The fan is constructed with a black plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 60°C and has a typical service life of 40,000hours at 40°C.

G3G250-GN04-11 Fan Parameters
Manufacturer: ebmpapst
Model: G3G250-GN04-11
Fan Type: EC Centrifugal Fan
Impeller Diameter: 250 mm
Dimensions: Ø280 x 110 mm
Rated Voltage: 230 VAC (1~)
Operating Voltage Range: 208 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 5.7 A
Power Consumption: 1200 W
Static Pressure: 2547 Pa
Speed: 4900 RPM
Bearing Type: Ball Bearing
Termination: Leads (with control input 0-10V/PWM)
Operating Temperature: -25 ~ 60°C
Lifetime @ Temp: 40,000 Hours (at 40°C)
Housing Material: Plastic (black plastic)
Impeller Material: Plastic (fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 13.2 kg
Approval Agency: CE, UL, EAC, VDE
Application: This ebmpapst EC centrifugal fan is suitable for high-performance applications in ventilation systems, industrial equipment, and air handling units where high static pressure and compact design are critical.
