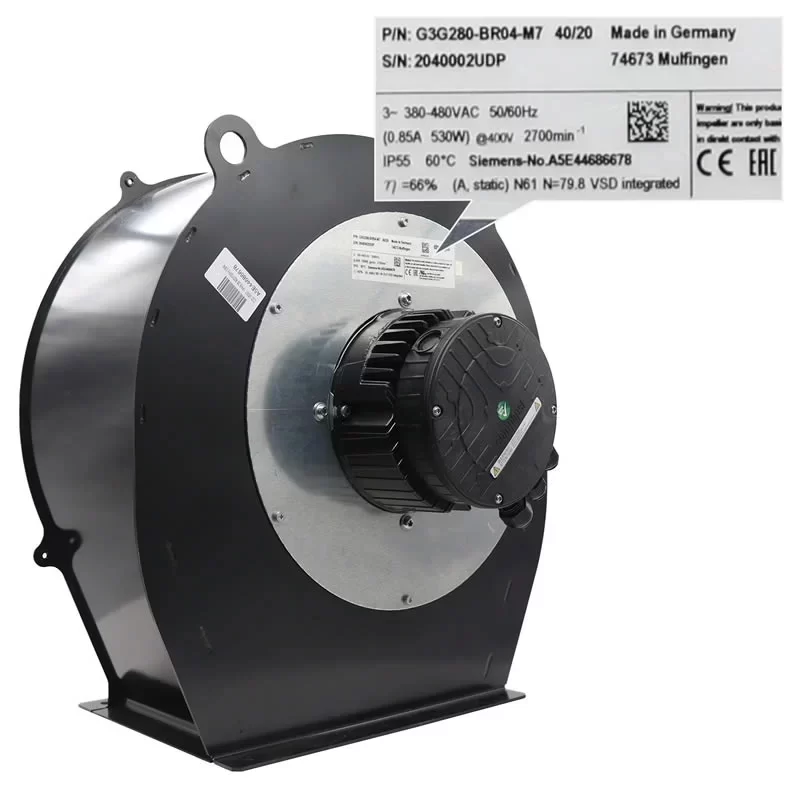

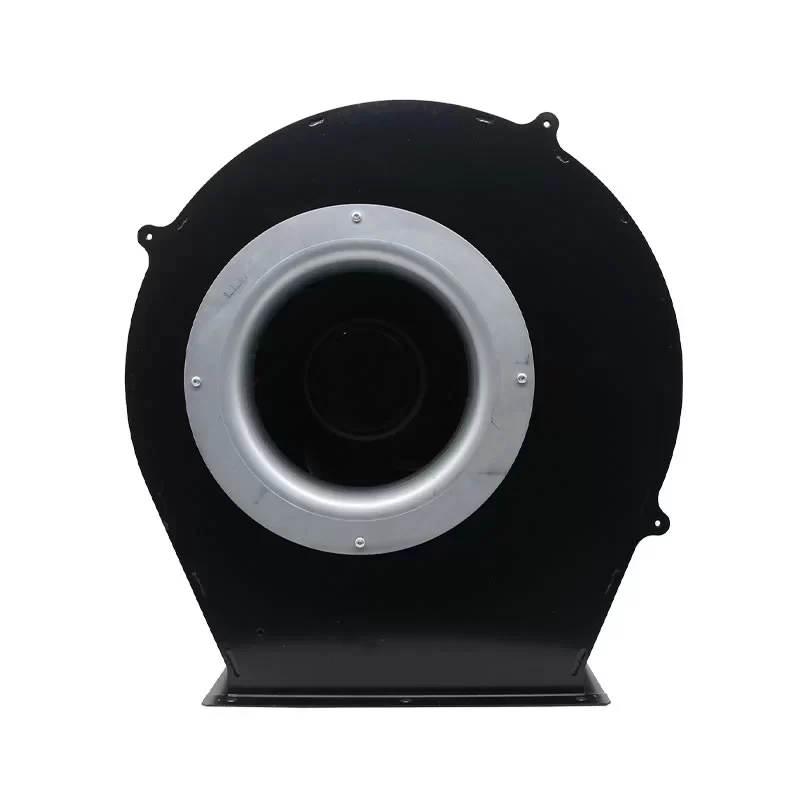

G3G280-BR04-M7 ebmpapst 400V 280mm EC Centrifugal Fan

Description

The ebmpapst G3G280-BR04-M7 is a high-performance 380-480 V three-phase GreenTech EC centrifugal fan module featuring a 280 mm backward-curved RadiCal impeller and a robust galvanized sheet steel scroll housing. Driven by the M3G084-DF external rotor motor with integrated electronics, this unit delivers an air flow of 1505 m³/h and a static pressure increase of 692 Pa. The impeller, constructed from high-strength PP plastic, is aerodynamically optimized for low-noise operation. Designed for S1 continuous duty, it features an RS-485 Modbus RTU interface, an integrated PID controller, and comprehensive motor protection including phase failure detection. This unit is a key thermal management component for industrial equipment, specifically associated with Siemens part number ASE44686678, operating reliably within an ambient temperature range of -25 °C to 60 °C.

G3G280-BR04-M7 Fan Parameters
Model Number: G3G280-BR04-M7
Manufacturer: ebmpapst
Motor Model: M3G084-DF
Siemens Part Number: ASE44686678
Series: RadiCal EC Centrifugal Series
Type: EC Centrifugal Fan (with Scroll Housing)
Impeller Size: 280 mm
Dimensions: 433 x 415 x 235 mm
Bearing Type: Ball bearing; (sealed)
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 15 kg
Power Consumption: 530 W (Ped 0.48 kW)
Nominal Current: 0.85 A
Speed: 2700 RPM (2710 RPM at peak point)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 79.8
Overall Efficiency (ηes): 66.0%
Motor Design: 3-phase EC External Rotor Motor
Control Interface: RS-485 MODBUS-RTU; 0-10 VDC / PWM
Technical Features: Integrated PID controller; Soft start; Passive PFC; External 24 V input (parameter setting); 10 VDC output (max. 10 mA); EEPROM write cycles (max. 100,000); Alarm relay
Motor Protection: Thermal overload protection for electronics/motor; Line undervoltage / phase failure detection; Motor current limitation
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Terminal box
Number of Blades: 6
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: PP plastic
Housing Material: Sheet steel, galvanized
Electronics Housing Material: Die-cast aluminum, painted black
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP55
Environmental Protection Class: H1
Operating Temperature: -25 – +60 °C
Standard Compliance: EN 61800-5-1, CE
Approval Agency: CSA C22.2 No. 77, UL 1004-7, EAC

Application
The ebmpapst G3G280-BR04-M7 centrifugal fan is primarily utilized in electronic cabinet cooling, small air handling units, laboratory equipment ventilation, cleanroom filter units, and compact HVAC systems.
