Description

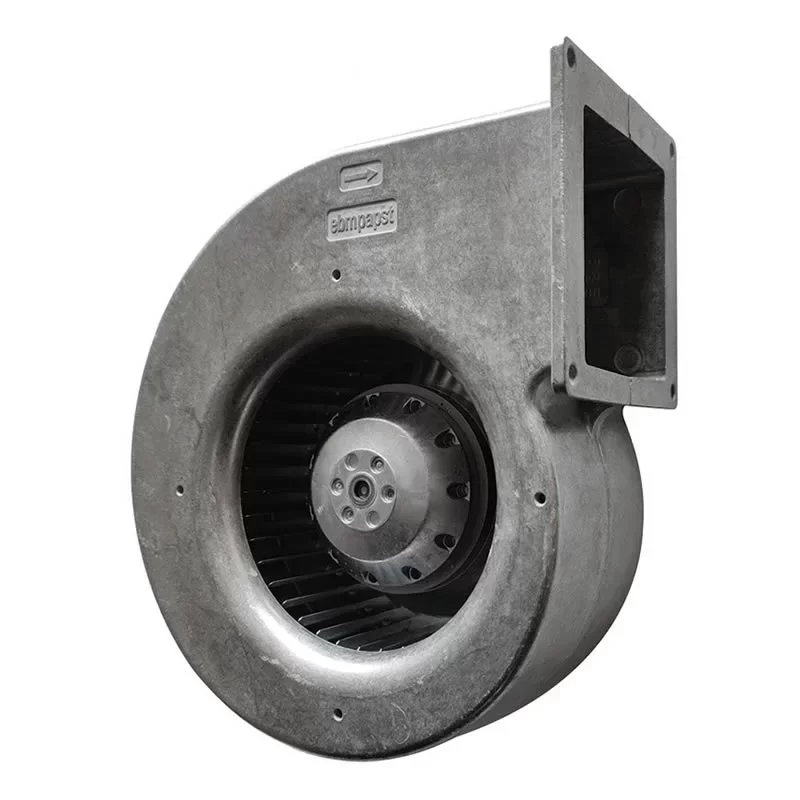

The ebmpapst G4E160-AB01-01 is a high-performance 230VAC single-phase AC Centrifugal Fan with a housing (flange) and an impeller diameter of 160 mm, specifically engineered for mission-critical cooling in industrial ventilation and localized air conditioning systems. Driven by the M4E068-CF external rotor motor with maintenance-free ball bearings, this forward-curved single-intake unit operates on a 230 VAC supply, delivering a Power Consumption of 67 W (50 Hz) / 90 W (60 Hz) and a Current Draw of 0.3 A / 0.4 A at a rated speed up to 1400 RPM under free air conditions. Requiring a 2 µF motor capacitor for operation, this unit achieves an overall efficiency of 26.6% at its optimum point (1415 RPM). Featuring a rugged die-cast aluminum housing and galvanized sheet steel impeller, this 160 mm unit ensures superior thermal management and an extended service life in continuous S1 environments at the end.
G4E160-AB01-01 Fan Parameters

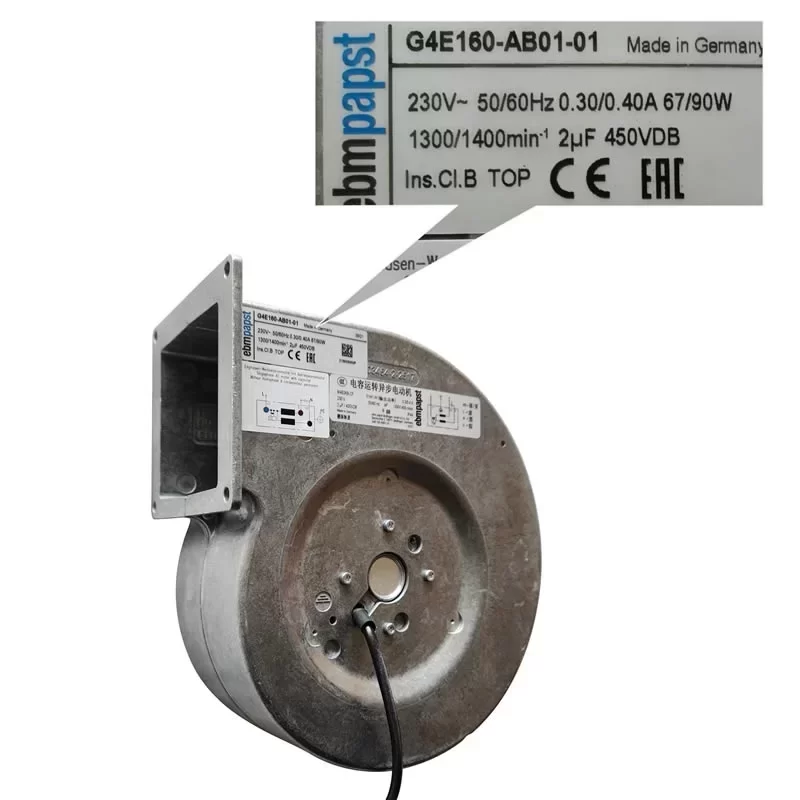

Model Number: G4E160-AB01-01
Motor Model: M4E068-CF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Forward-curved, single-intake)
Size: 160 mm
Dimensions: 226.8 x 247.5 x 130 mm
Weight: 2.9 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.3 / 0.4 A
Power Consumption: 67 / 90 W
Capacitor: 2 µF
Capacitor Voltage: 450 VDB
Capacitor Standard: S0 (CE)
Rated Speed: 1300 / 1400 RPM
Starting Current: 0.46 / 0.46 A
ErP Optimum Efficiency Point Speed: 1415 RPM
ErP Static Pressure Increase: 100 Pa
ErP Air Flow: 285 m³/h
Overall Efficiency (ηes): 26.6%
Efficiency Grade: N40
Noise Level: 60.0 dB(A)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: “B”
Degree of Protection: IP44
Protection Class: I
Impeller Material: Sheet steel, galvanized
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 65 / 60 °C
Min. Operating Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; CE
Application
The ebmpapst G4E160-AB01-01 fan is the primary cooling component for control cabinet ventilation, electronic enclosures, and localized industrial cooling systems requiring a compact flanged centrifugal blower.
