Description

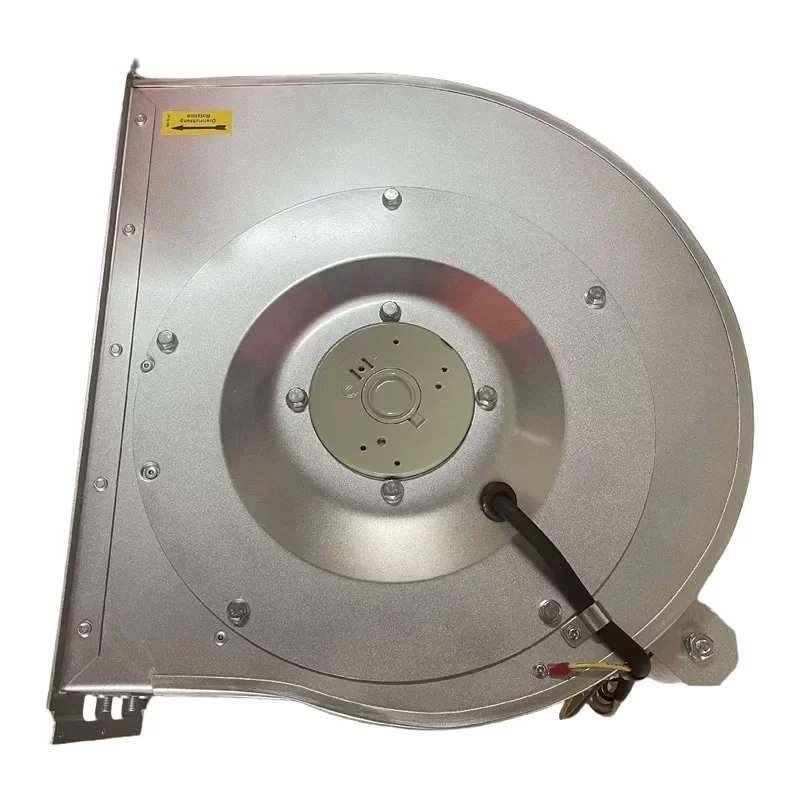

The ebmpapst G4E280-BC23-05 (Siemens 6SL3362-0AG00-0AA1 / A5E01026230) is a high-performance 230 VAC AC Centrifugal Fan with an impeller size of 280 mm and housing dimensions of 434.0 x 421.0 x 205.0 mm, specifically engineered for extreme thermal management in Siemens Industrial Frequency Converters and large-scale VFD cooling systems. Driven by a specialized M4E094-HA motor, this unit provides a substantial Max. Power Consumption of 980.0 W and a Max. Current Draw of 4.28 A at 60 Hz. Constructed with a heavy-duty hot-galvanised sheet steel housing and a forward-curved impeller featuring precision dual ball bearings, this 14.1 kg unit provides a dependable air-moving solution with IP10 protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters and integrated industrial switchgear systems at the end.
G4E280-BC23-05 Fan Parameters
Model Number: G4E280-BC23-05
Siemens Part Number: 6SL3362-0AG00-0AA1 / A5E01026230
Manufacturer: ebmpapst
Motor Model: M4E094-HA (1-phase capacitor motor)
Type: AC Centrifugal Fan (Forward-curved, single inlet)
Impeller Size: 280 mm
Dimensions: 434.0 x 421.0 x 205.0 mm
Weight: 14.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Power Consumption: 690.0 W (50 Hz) / 980.0 W (60 Hz)
Max. Current Draw: 3.10 A (50 Hz) / 4.28 A (60 Hz)
Motor Capacitor: 14.0 µF / 450 VDB
Rated Speed: 1340 RPM (50 Hz) / 1410 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Working Air Flow: 2360.0 m³/h (50 Hz) / 2620.0 m³/h (60 Hz)
Static Pressure Increase: 450 Pa (50 Hz) / 550 Pa (60 Hz)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class F
Protection Class: Class I
Electrical Hookup: Terminal box (Top mounted)
Number of Blades: Multi-vane (Forward-curved)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Housing Material: Sheet steel, hot-galvanised
Impeller Material: Sheet steel, hot-galvanised
Operation Mode: S1 (Continuous operation)
Sound Pressure Level: 75.0 dB(A)
Service Life (L10): 40,000 h (at 40 °C)
Operating Temperature: -40 – +50 °C (50 Hz) / -40 – +40 °C (60 Hz)
Storage Temperature: -40 – +80 °C
Degree of Protection: IP10
Standard Compliance: EN 60335-1; CE
Approval Agency: VDE; UL; CSA; CCC; EAC
Application
The ebmpapst G4E280-BC23-05 AC centrifugal fan is specifically designed for Siemens SINAMICS S120 series industrial frequency converters and high-power VFD cabinets for high-efficiency cooling in harsh industrial environments.
