Description
The GB0555PDV1-A is a specialized DC Blower Fan primarily used for targeted cooling in compact electronic devices such as Intel NUC mini PCs and specific laptops. Operating on 5V DC power with a 1.1W power rating, it draws 0.22A of current. Despite its small 55mm x 55mm x 8mm footprint, it operates at a speed of 3200-3500 RPM, providing effective airflow while maintaining a quiet 35 dBA noise level. Equipped with a 4-pin connector for power and speed control, and featuring a fluid bearing for enhanced quietness and a long 100,000-hour life expectancy, this fan is crucial for maintaining optimal temperatures in densely packed, low-profile computing hardware.

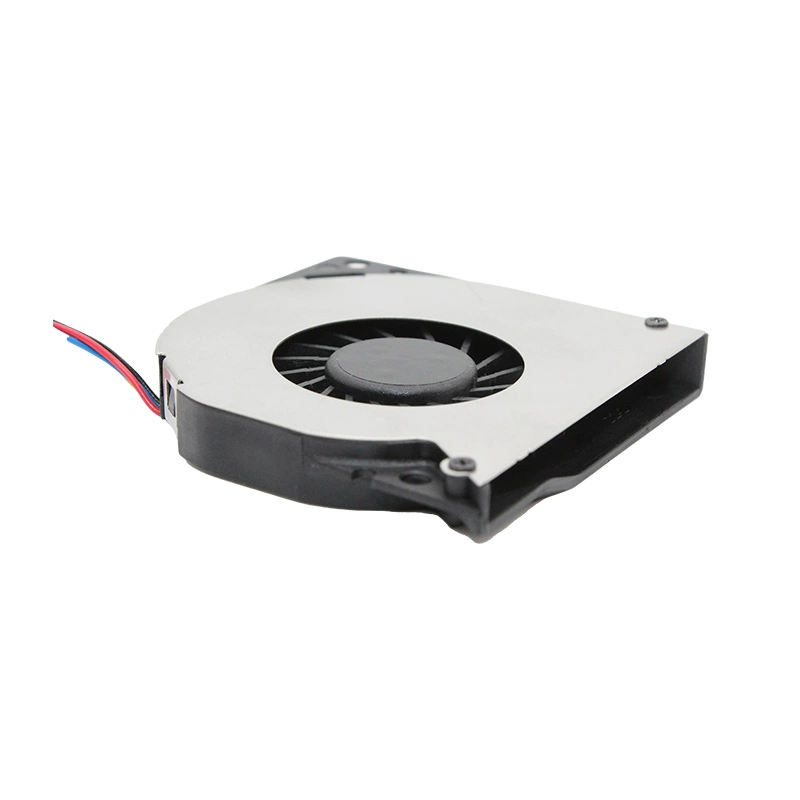

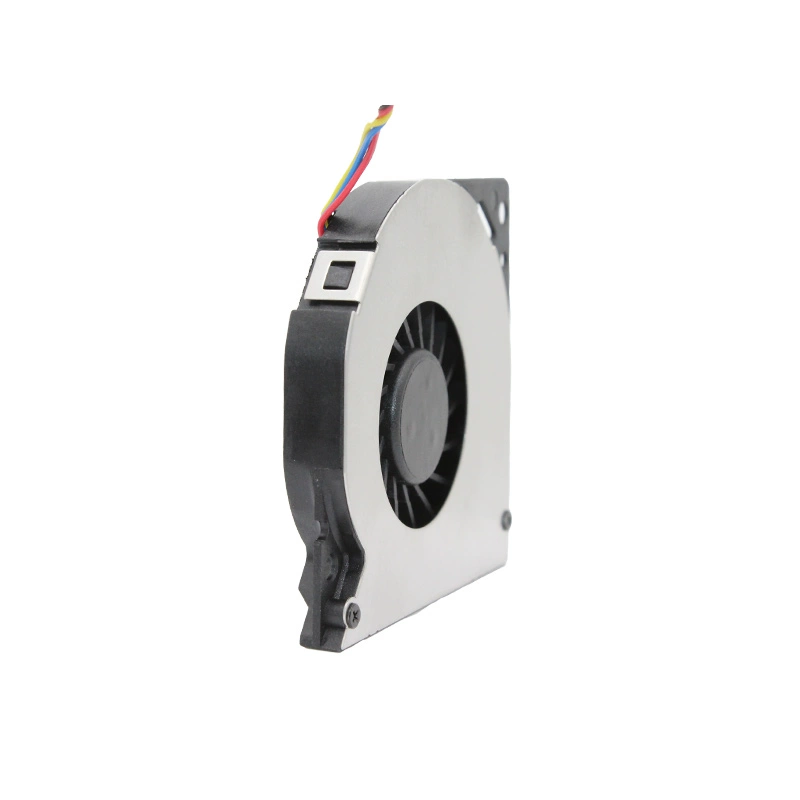

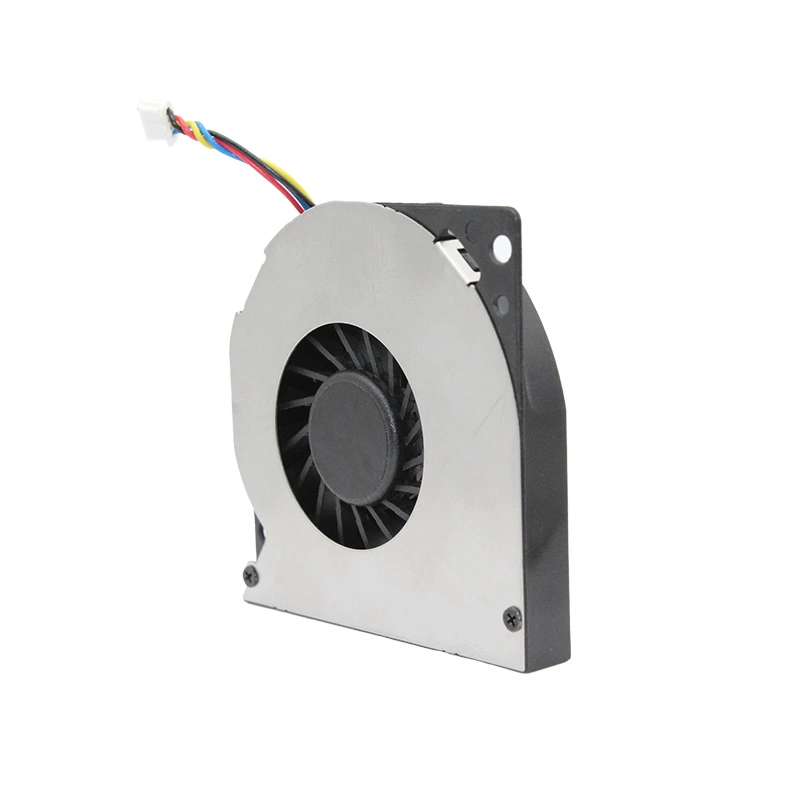

GB0555PDV1-A SUNON Dell Notebook Fan 5V 1.1W CN60 Turbo Blower Fan
Manufacturer: SUNON
Model Number: GB0555PDV1-A
Type: DC Blower Fan
Rated Voltage: 5V DC
Rated Power: 1.1W
Rated Current: 0.22A
Speed: 3200-3500 RPM
Noise Level: 35 dBA
Dimensions: 55mm x 55mm x 8mm (Length x Width x Thickness)
Connector: 4-Pin
Bearing Type: Fluid Bearing
Life Expectancy: 100,000 hours
