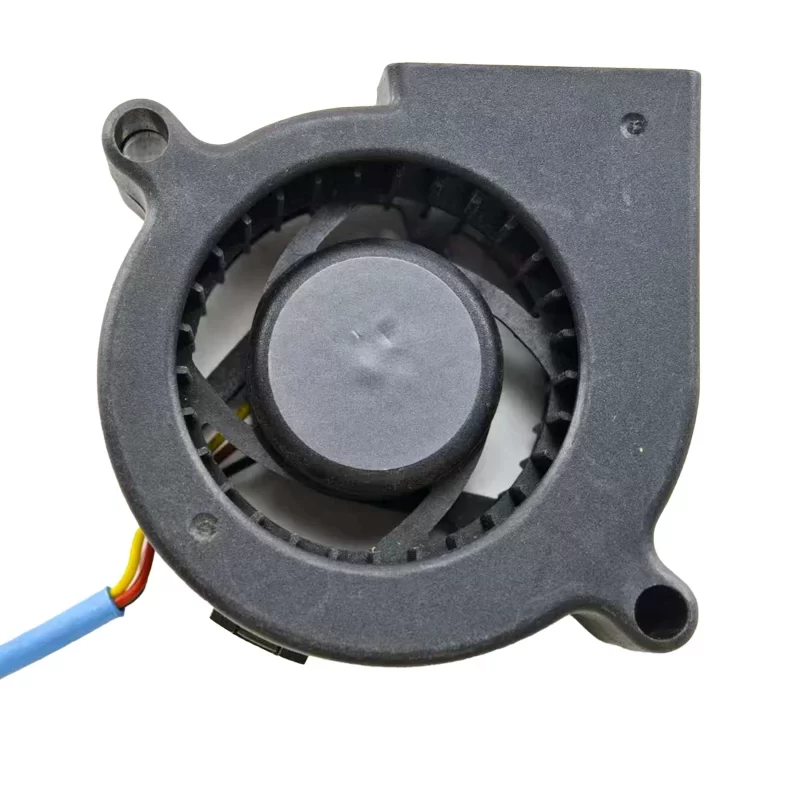

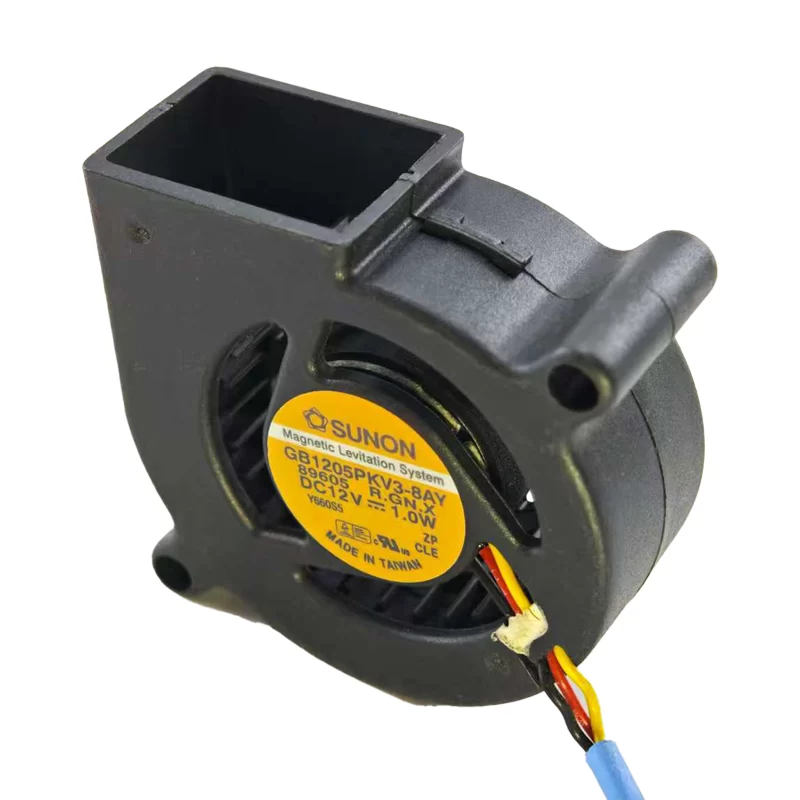

GB1205PKV3-8AY R.GN.X SUNON 12V DC Blower

Description

The SUNON GB1205PKV3-8AY R.GN.X is a compact DC blower with dimensions of 50 x 50 x 20 mm and a weight of 33 g. It operates on 12V DC, drawing 0.09 A of current and consuming 1.0 W of power. The blower provides an airflow of 4.8 CFM (8.2 m³/h) and generates a high static pressure of 0.46 inch H₂O (114.6 Pa). It runs at a speed of 4400 RPM with a low noise level of 30 dB(A). The blower uses Vapo Bearing technology for enhanced reliability and features three-wire leads. This fan is ideal for cooling in compact electronic devices with restricted airflow pathways.

GB1205PKV3-8AY R.GN.X Fan Parameters
Manufacturer: SUNON
Model: GB1205PKV3-8AY R.GN.X
Fan Type: DC Blower
Dimensions: 50 x 50 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.09 A
Power Consumption: 1.0 W
Airflow: 4.8 CFM (8.2 m³/h)
Static Pressure: 0.46 inch H₂O (114.6 Pa)
Speed: 4400 RPM
Noise Level: 30 dB(A)
Bearing Type: Vapo Bearing
Termination: Three Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 33 g
Application: The GB1205PKV3-8AY R.GN.X is an ideal cooling solution specifically designed for projectors. Its compact size, low noise level, and ability to generate high static pressure make it perfect for directing airflow over key heat-generating components, such as the light engine and DLP chip. This ensures efficient heat dissipation to maintain stable performance and extend the lifespan of the projector.
