Description

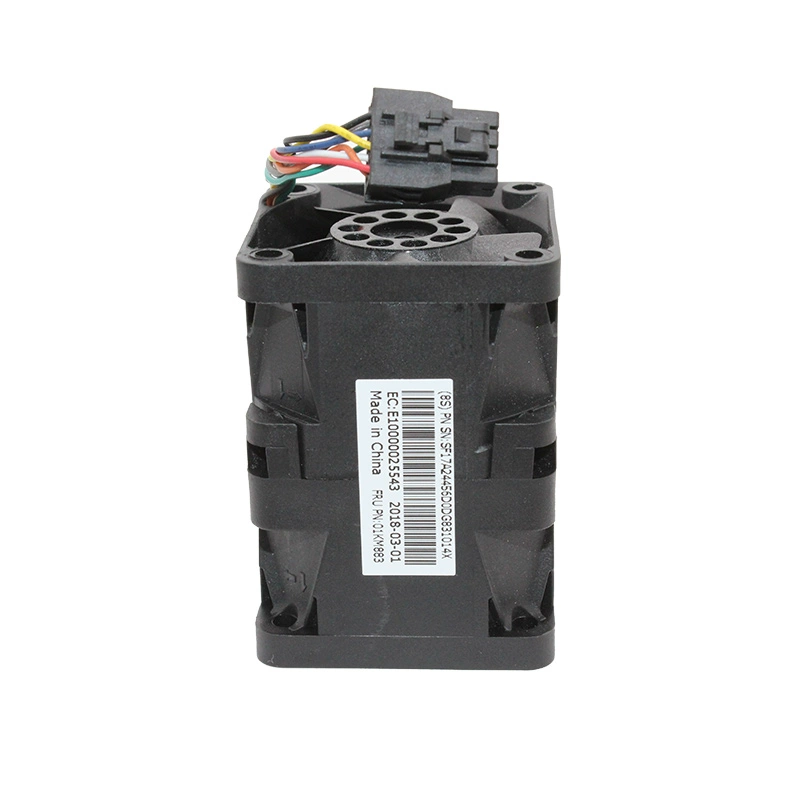

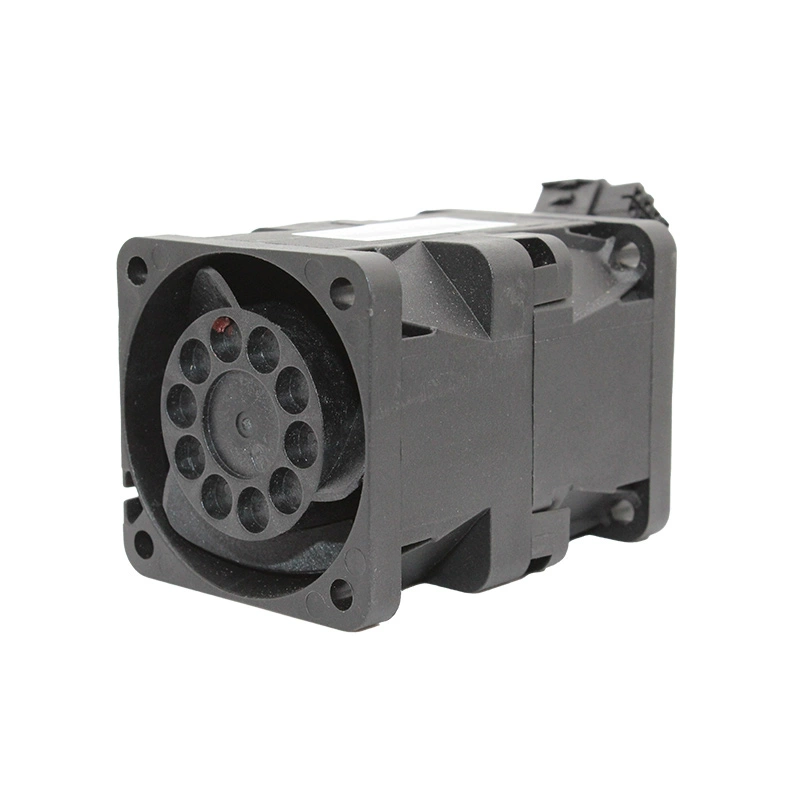

The Delta GFM0412SS-02D4P is an extremely high-performance 12V DC axial cooling fan from Delta Electronics, engineered for severe thermal management challenges within highly space-constrained environments. Measuring 40mm x 40mm x 28mm, this fan operates at a formidable rated current of 1.60A (19.2W), achieving an astonishing speed of 18,000 RPM. This robust performance yields an exceptional airflow of 25.0 CFM and a very high static pressure of 1.80 inch-H2O, enabling it to efficiently push air through highly restrictive pathways. Equipped with durable ball bearings, it ensures a long operational life of 70,000 hours at 40°C. The fan utilizes 4-wire leads, providing both PWM control for precise speed adjustment and a speed sensor for real-time status monitoring. This makes it an indispensable solution for cooling densely packed server components, high-power embedded systems, and specialized industrial equipment where extreme thermal management is critical in compact spaces, despite its inherent noise level of 60.0 dBA.
Model Number: GFM0412SS-02D4P
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Rated Current: 1.60A
Rated Power: 19.2W
Speed: 18,000 RPM
Airflow: 25.0 CFM / 0.70 m³/min
Static Pressure: 1.80 inch-H2O / 448 Pa
Noise Level: 60.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Speed Sensor, Locked Rotor Protection, Auto Restart
