Description

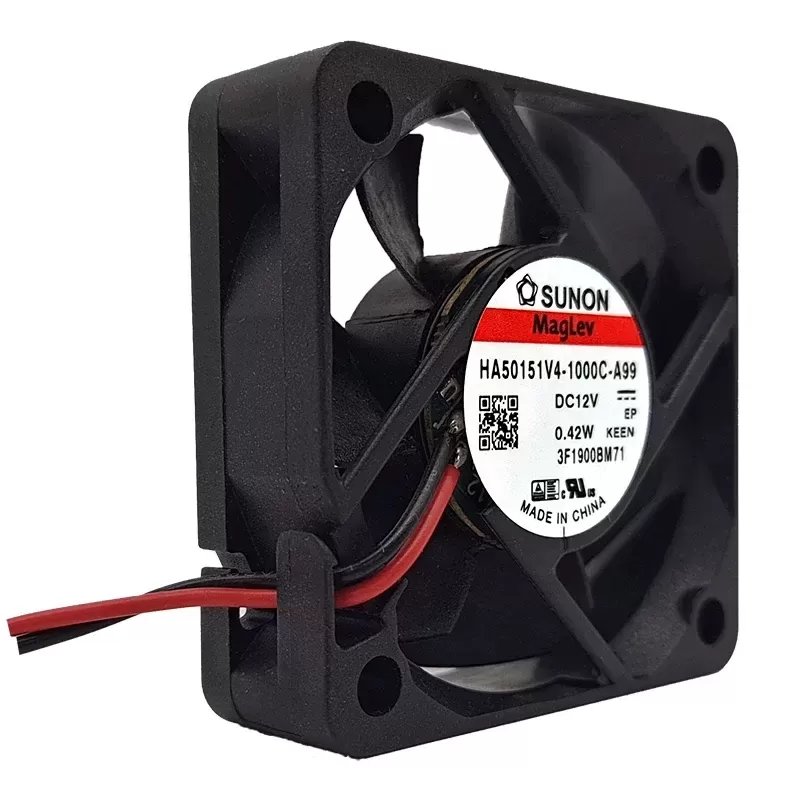

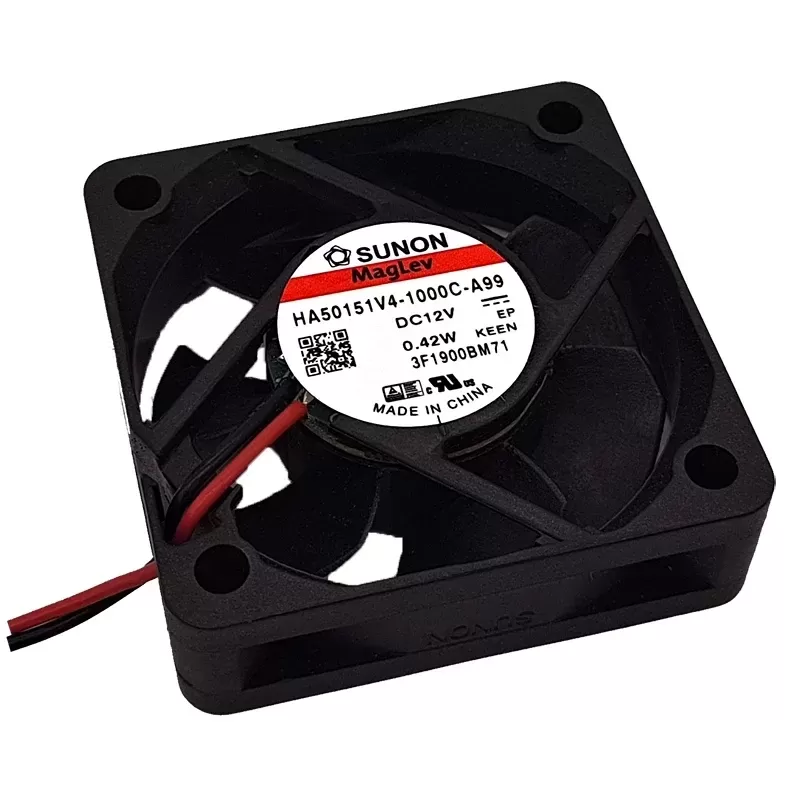

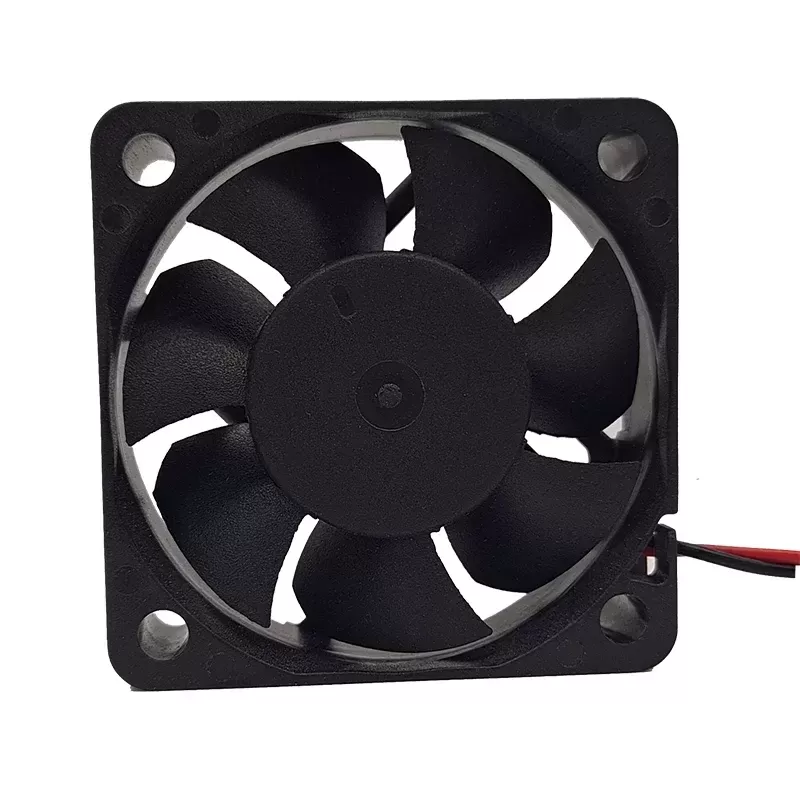

The SUNON HA50151V4-1000C-A99 is a compact DC axial fan measuring 50x50x15mm. It operates on 12 VDC, drawing 35 mA of current, with a power consumption of 0.42 W. This fan achieves a speed of 3200 RPM, providing an airflow of 13.01 m³/h (approximately 7.7 CFM). Designed for quiet operation, its noise level is 15.4 dB(A). It features a Vapo bearing system for reliable performance and connects via 2 wire leads. The fan also includes auto-restart and locked rotor protection. With an IP20 ingress protection rating, it is suitable for various electronic applications where low noise and efficient cooling are essential.
HA50151V4-1000C-A99 Fan Parameters
Model: HA50151V4-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 50x50x15 mm
Rated Voltage: 12 VDC
Nominal Voltage Range: 4.5 to 13.8 VDC
Rated Current: 35 mA
Power Consumption: 0.42 W
Speed: 3200 RPM
Airflow: 13.01 m³/h (7.7 CFM)
Static Pressure: 0.070 inH2O (17.4 Pa)
Noise Level: 15.4 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Housing Material: Thermoplastic
Impeller Material: Thermoplastic
Ingress Protection: IP20
Operating Temperature: -10 to 70°C
Motor Protection: Auto Restart, Locked Rotor Protected
Application: Electronic equipment, quiet cooling solutions.
Weight: 20.5 g
