Description

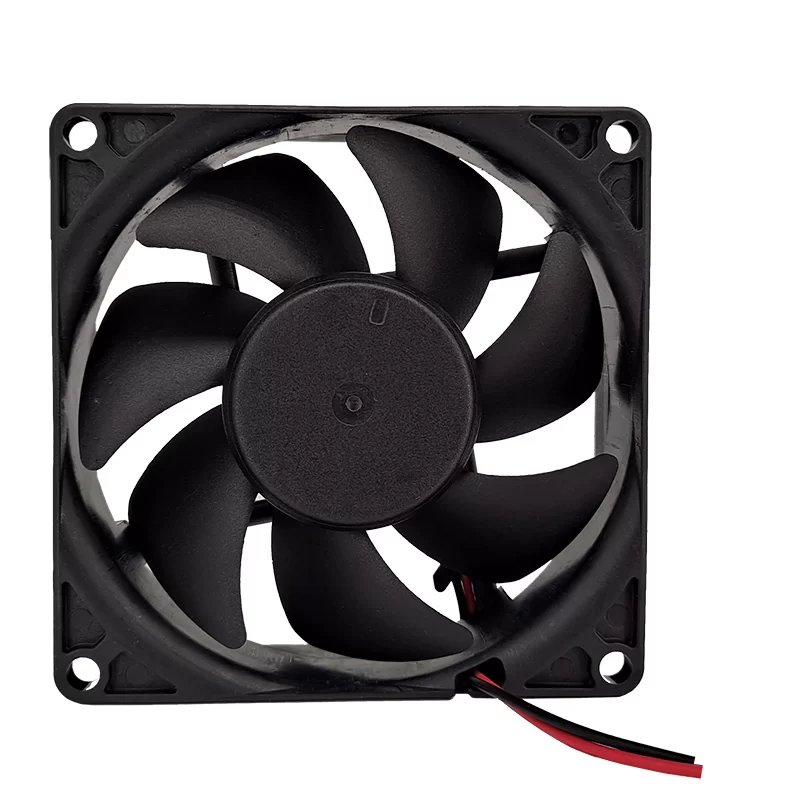

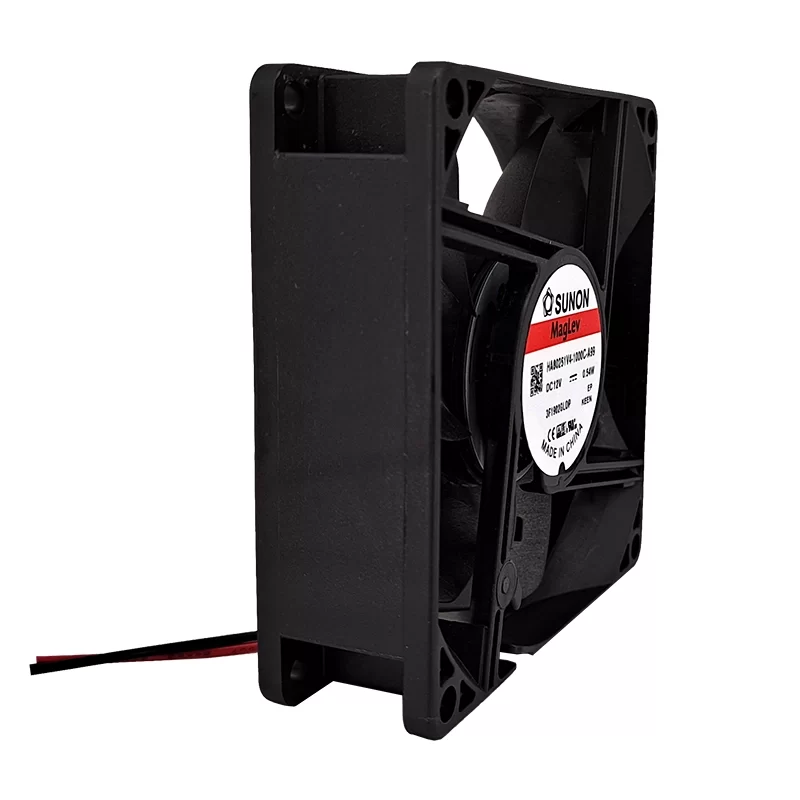

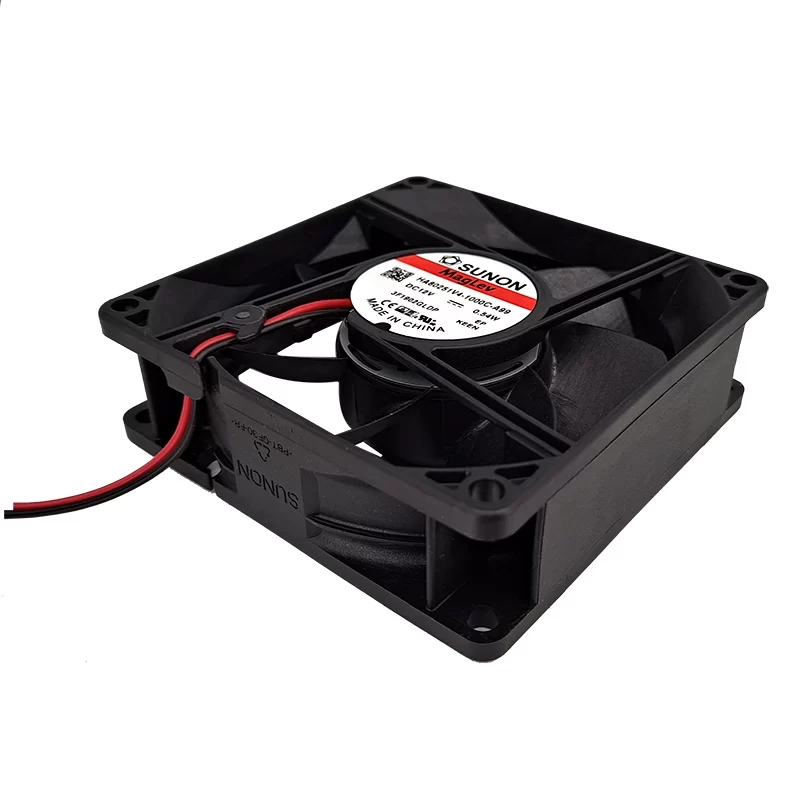

The SUNON HA80251V4-1000C-A99 is a DC axial fan measuring 80x80x25mm. It operates on 12 VDC, drawing 45 mA of current, with a power consumption of 0.54 W. This fan achieves a speed of 2000 RPM, providing an airflow of 139 CFM (approximately 236.17 m³/h). Designed for quiet operation, its noise level is 20.4 dB(A). It features a Vapo bearing system (MagLev technology) for reliable performance and extended life, and connects via 2 wire leads. The fan also includes auto-restart and locked rotor protection. With an IP20 ingress protection rating, it is suitable for various electronic applications where low noise and efficient cooling are essential.
HA80251V4-1000C-A99 Fan Parameters
Model: HA80251V4-1000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 80x80x25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 to 13.8 VDC
Rated Current: 45 mA
Power Consumption: 0.54 W
Speed: 2000 RPM
Speed Tolerance: ±10%
Airflow: 139 CFM (236.17 m³/h)
Static Pressure: 0.170 inH2O (42.36 Pa)
Noise Level: 20.4 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Ingress Protection: IP20
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart, Locked Rotor Protected
Weight: 75.75 g
Application: Electronic equipment, quiet cooling solutions.
