JF12038A2HBL 220V 4-inch electric box cabinet DP200A exhaust fan

Description

Model: DP200A    JF12038A2 HBL
Voltage: 220V
Bearing: Double ball bearing pure copper wire motor
Current: 0.14A Speed: 2750RPM
Air volume: 105CFM

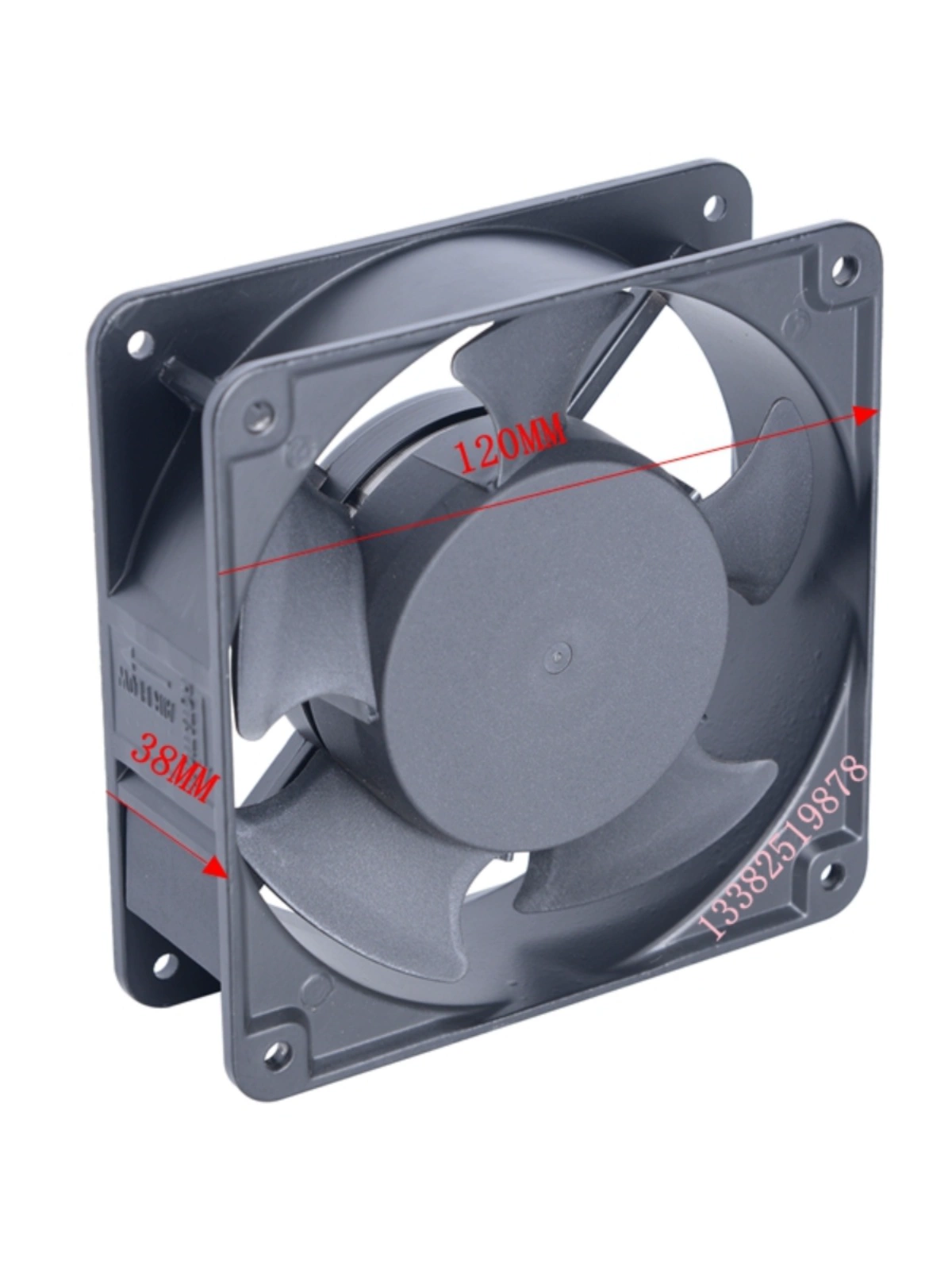

Dimensions: 120*120*38MM

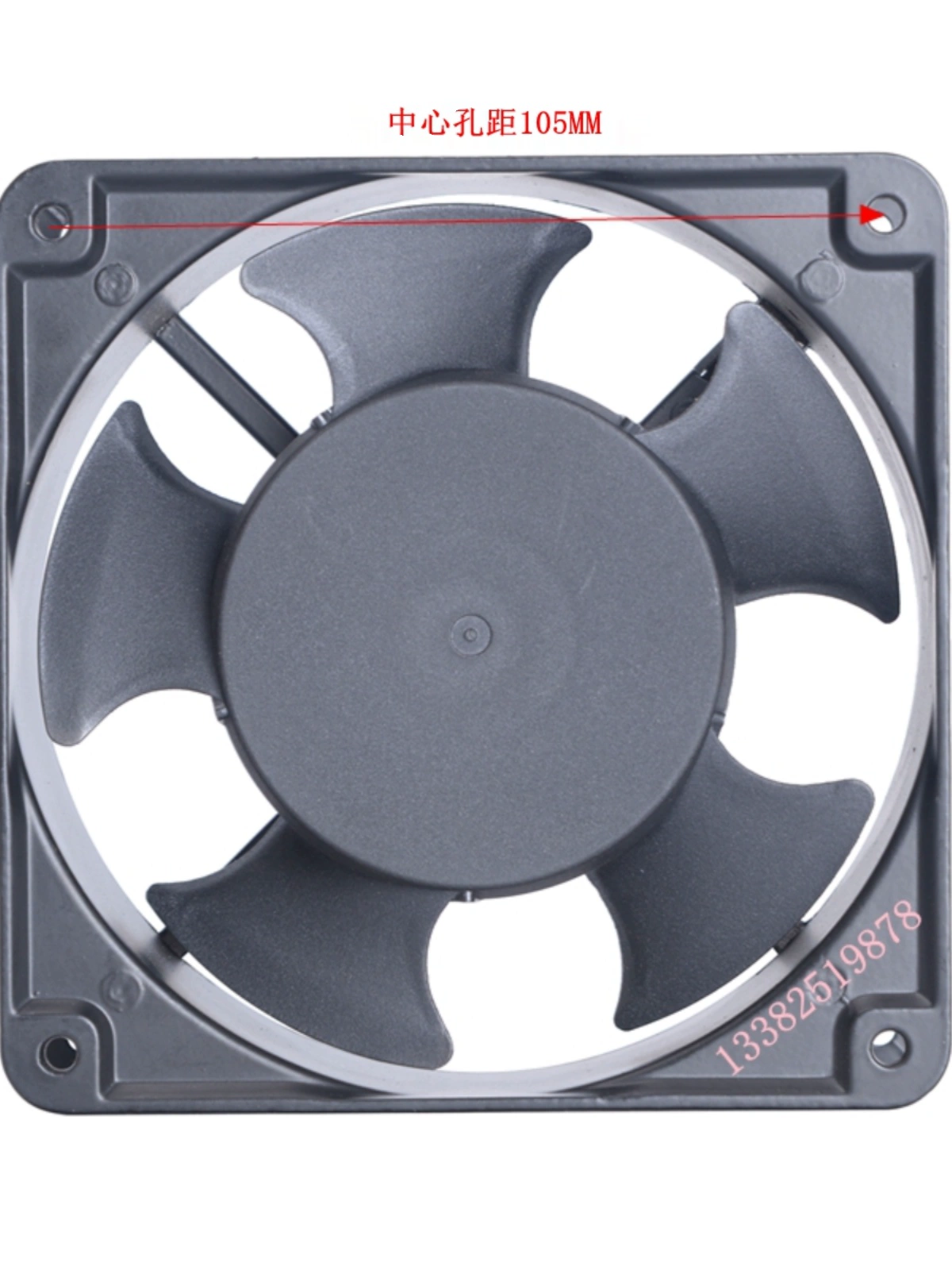

Installation size: 105*105MM
Packaging: No separate packaging box, ordinary cardboard packaging 40 units/1 whole box;
Frame: Black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Wind blades: Injection molding, PBT+30% glass wire+VO grade flame retardant;
Bearings: Low noise imported (oil-containing bearings); (ball bearings).
Insulation: Enameled wire adopts Class B insulation, temperature resistance 120 degrees Celsius; Insulation resistance: above 500 megohms;
Lifespan: Working environment temperature 40℃ 60000 (hours), can work continuously for 24 hours.
JF12038A2HBL 220V cooling fan 12CM axial flow fan 4-inch electric box cabinet DP200A exhaust fan
