Description

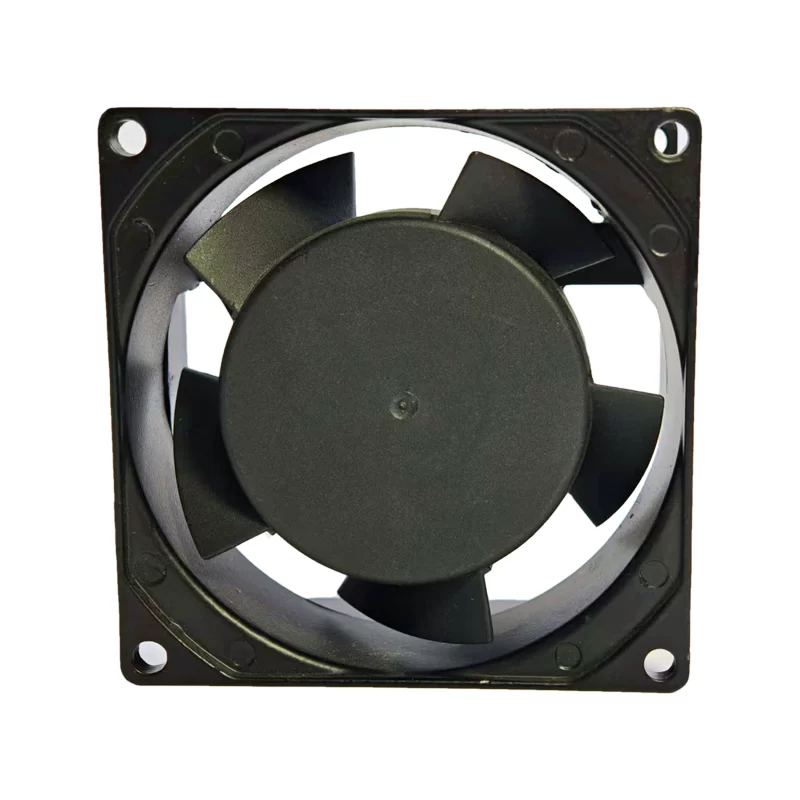

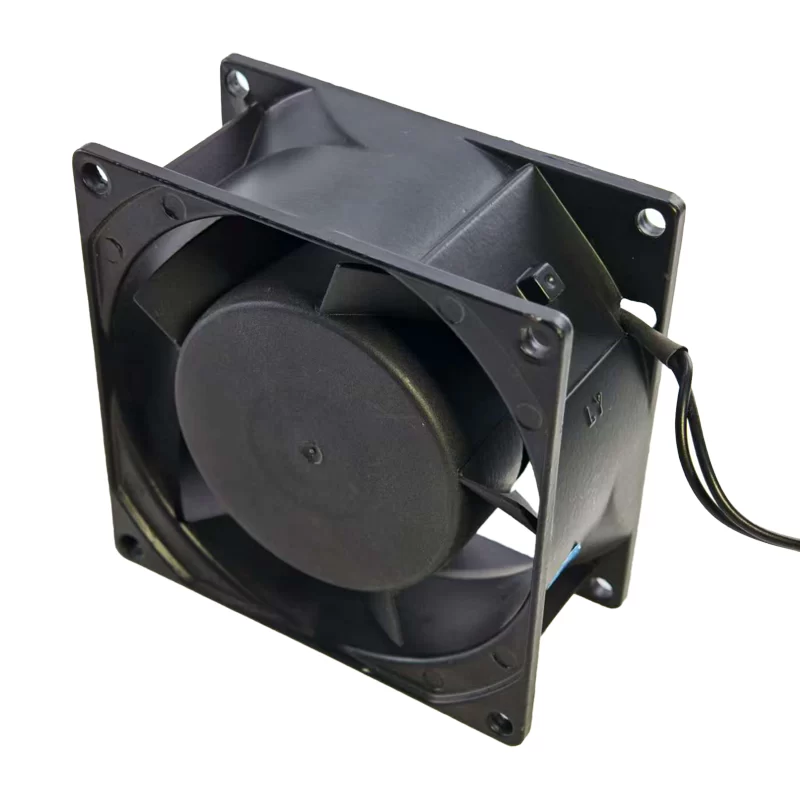

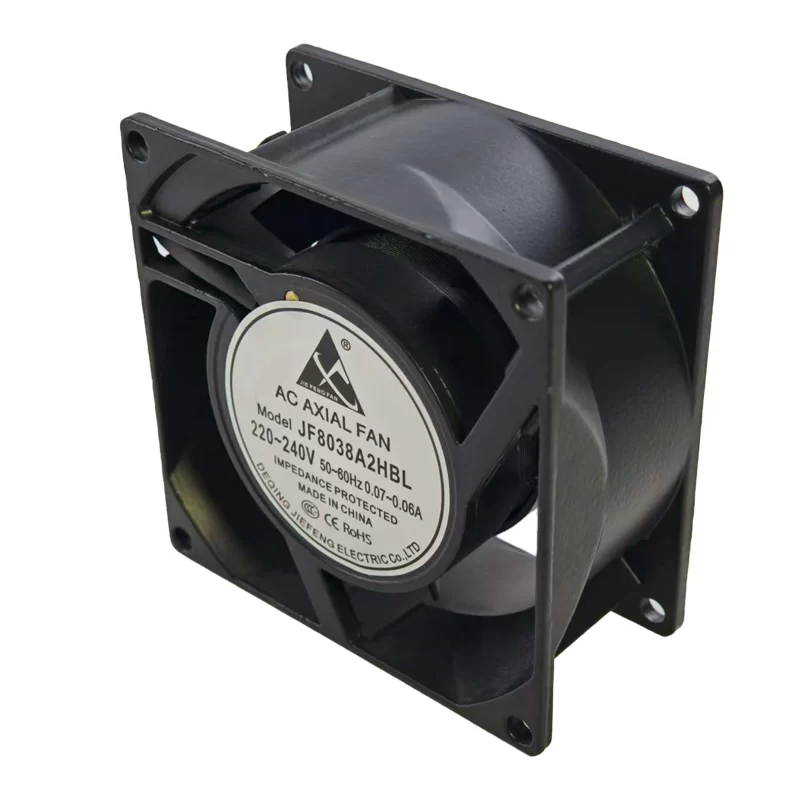

The JIEFENG JF8038A2HBL is a multi-frequency AC axial fan with dimensions of 80x80x38mm. It is designed for applications where different power line frequencies are used. Operating on 220-240V, the fan adjusts its performance based on the input frequency. At 50 Hz, it provides a balance of airflow (26 CFM) and quiet operation (31 dB(A)). At 60 Hz, it increases performance to 33 CFM with a slightly higher noise level of 35 dB(A). The fan is built with durable plastic materials, features ball bearings for a long lifespan, and connects via two wire leads.
JF8038A2HBL Fan Parameters
Manufacturer: JIEFENG
Model: JF8038A2HBL
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 220-240V
Rated Frequency: 50/60 Hz
Current Rating: 0.07/0.06 A
Power Consumption: 15/13 W
Airflow: 26/33 CFM (44.2/56.1 m³/h)
Static Pressure: 0.15/0.21 inch H₂O (37.4/52.3 Pa)
Speed: 2350/2850 RPM
Noise Level: 31/35 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Weight: 279 g
